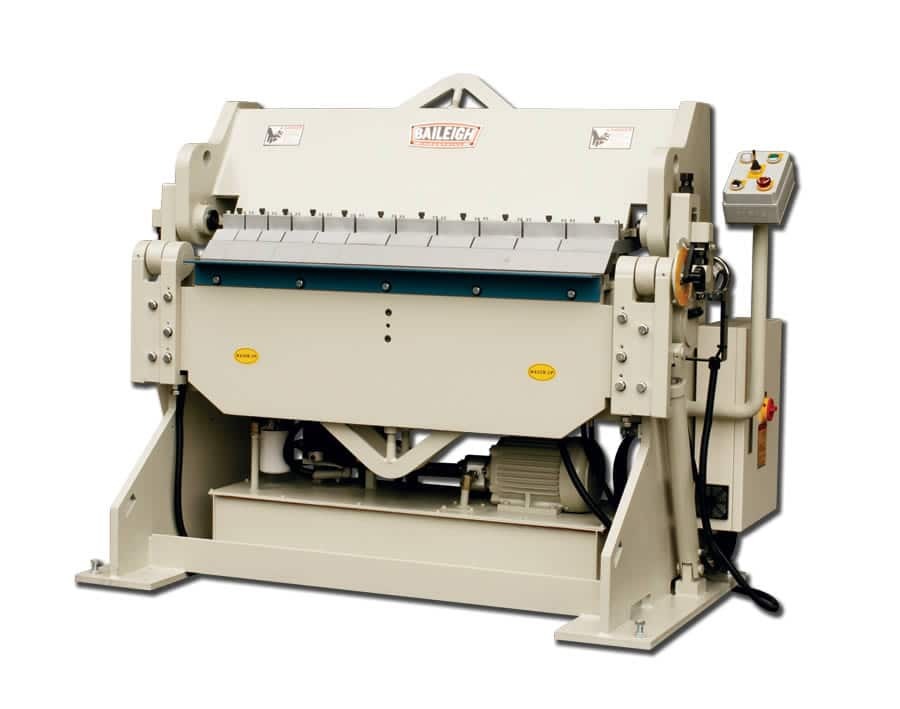

Baileigh BB-4810H Heavy Duty Hydraulic Box & Pan Folder
Baileigh BB-4810H Heavy Duty Hydraulic Box & Pan Folder
Highlights
Baileigh BB-4810H Heavy Duty Hydraulic Box & Pan Folder
- 3.4mm mild steel capacity
- 2.8mm stainless steel capacity
- 1270mm folder length
- 0° – 135° bend angle
Have thicker material to bend? Then look no further than the BB-4810H hydraulic box and pan brake from Baileigh Industrial.
The BB-4810H finger brake will do a maximum of 10 gauge sheet metal at a full 48 inches. This semi-automatic sheet metal brake has 3-3″, 2-4″, 5-5″ and 1-6″ fingers that allows any sheet metal fabricator to adjust for different size boxes and pans they wish to make.
The BB-4810H box and pan brake is built with a fully welded beam, bending leaf and is further stabilised with truss rod supports that helps minimise any deflection when bending at full capacity.
The BB-4810H hydraulic sheet metal brake uses industrial-grade hydraulics to lift the leaf and can be operated in manual or semi-automatic mode. For even more holding power, when bending 10 gauge mild steel, the beam is lifted and clamped via an electric motor that turns a cam. The BB-4810H hydraulic finger brake has a programmable bend adjustment making reproducing bends easy.
Another nice feature of the BB-4810H, like all the Baileigh Industrial box and pan brakes, is that the bending apron is removable allowing the operator to get closer between bends. The BB-4810H has a 1 beam adjustment and is capable of bending to a maximum of 135°. Operating on 400V three phase power, the BB-4810H uses a powerful 3hp motor to control all the hydraulic functions.
Technical Details
tem Number BB-4810H
Country of Manufacture Taiwan
Motor 3 hp
Min Reverse Bend 25 mm
Thickness (SS) 10 ga. (12 ga.)
Box Depth 152 mm
Beam Adjustment 25.4 mm
Bend Angle 0 135°
Finger Sizes 3″ 4″ 5″ 6″
Power 220V 3-phase
Shipping Weight 1750 kgs.
Length 1219 mm
Shipping Dimensions 2108 x 1168 x 1753 mm
- 3.4mm mild steel capacity
- 2.8mm stainless steel capacity
- 1270mm folder length
- 0° – 135° bend angle
* specifications subject to change without notice.
