Baileigh BB9612H Box & Pan Folder Hydraulic 2.8mm Cap Width 2540mm

Baileigh BB9612H Box & Pan Folder Hydraulic 2.8mm Cap Width 2540mm

Highlights

Baileigh BB9612H Box Pan Folder Hydraulic 2.8mm Cap Width 2540mm

• 2.8mm mild capacity
• 1.6mm stainless capacity
• 2540mm folder length
• 0° – 135° bend angle

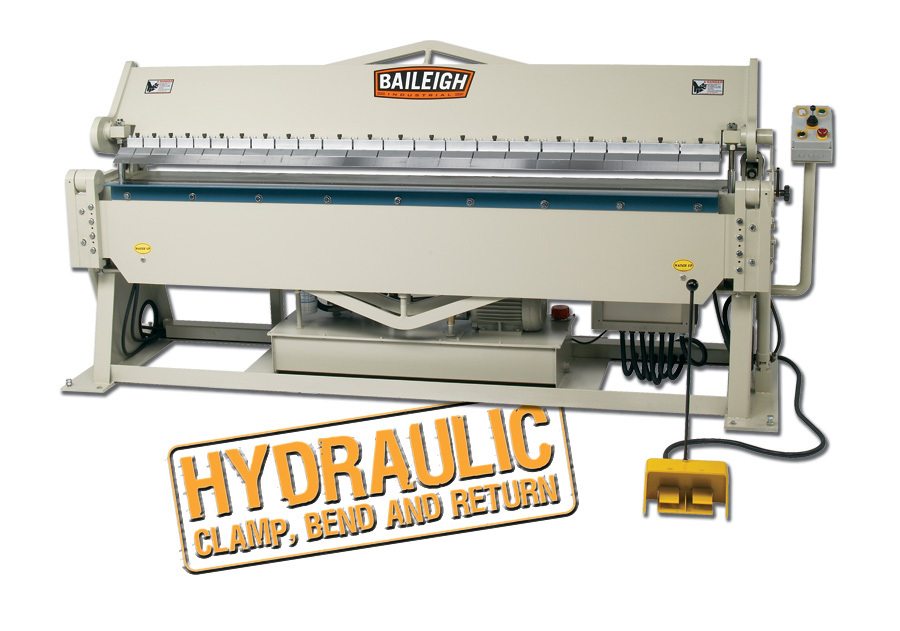

Supported by a fully-welded steel frame, the BB-9612H hydraulic box and pan brake can bend 12 gauge mild steel (or lighter) across its full 8-foot (96”) width.

• 135° maximum bend angle.
• Comes standard with 22 fingers (6 fingers of 3”, 4 of 4”, 10 of 5”, and 2 of 6”) that you can adjust to make different sizes of boxes and pans.
• Powerful industrial-grade hydraulics lift the leaf and lift or clamp the beam.
• You can run this hydraulic sheet metal brake in manual or semi-automatic mode via toggle or foot pedal controls.
• Adjustable bend auto-stop, for easy and exact repeatability, makes this a very production-oriented hydraulic sheet metal brake.
• Apron angle bar detaches to let you get closer between bends.
• Electro-welded beam and leaf, stabilized with truss rods, minimizes deflection when you’re bending at full capacity and keeps bends crisp and accurate.
• Covered by a 1-year parts warranty.

Technical Details

• 2.8mm mild steel capacity
• 1.6mm stainless steel capacity
• 2540mm folder length
• 0° – 135° bend angle

* specifications subject to change without notice.
