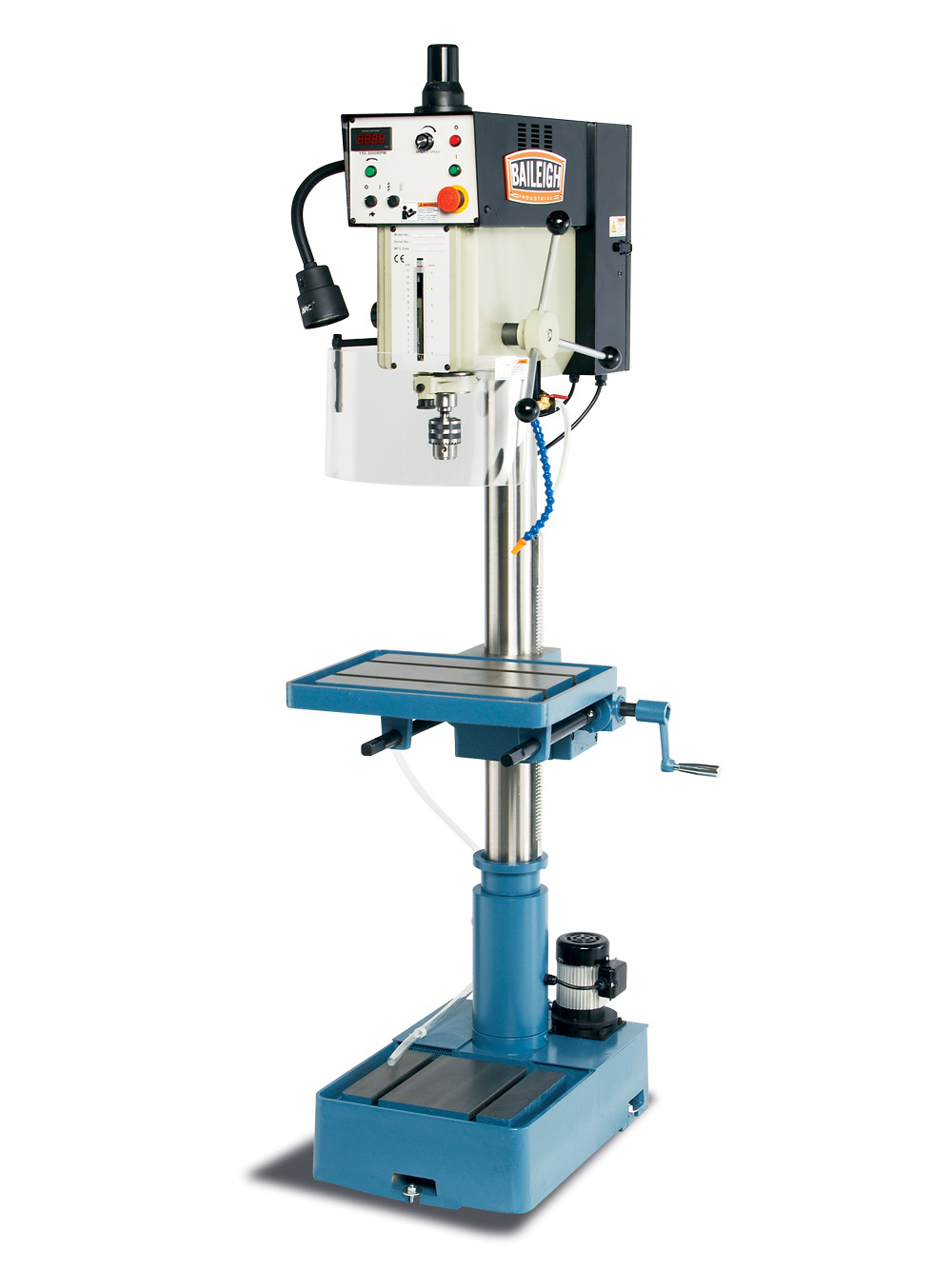

Baileigh DP-1000 VS Variable Speed Drill Press-( 2001738)
Baileigh DP-1000 VS Variable Speed Drill Press-( 2001738)
The DP-1000VS variable speed drill press has a very wide column to eliminate flexing when drilling at full capacity.
The base and table are made from a very rigid casting adding to the strength of this 1" maximum capacity drilling machine.
The inverter driven head allows the machinist or fabricator to run tooling at the proper speed for each drill or tap size available.
Running at the exact speed extends tooling life, something that can't be accomplished on other drills like pulley driven styles.
The DP-1000VS drill press also comes with a coolant system, safety guarding and a halogen light.
To find out more information about our variable speed drill presses, please call Traxx Industries now on 0796 3851 455.
Technical Details
| Item Number | DP-1000VS |
|---|---|
| Country of Manufacture | Taiwan |
| Motor | 1.5 kW |
| Quill Diameter | 62 mm |
| Spindle Nose to Table | 605 mm |
| Spindle Nose to Base | 1150 mm |
| Spindle Speed | 185 - 2500 rpm |
| Spindle Taper | MT 3 |
| Table Slot | 16 mm |
| Tapping Capacity Steel | 16 mm |
| Motor Coolant | 0.125 kw |
| Drill Capacity Steel | 25 mm |
| Power | 220V / 1-phase |
| Shipping Weight | 263 kgs. |
| Swing | 530 mm |
| Spindle Travel | 100 mm |
| Column Diameter | 92mm |
| Base Dimensions L x W | 685 mm x 485 mm |
| Shipping Dimensions (Inches) | 813 x 610 x 2007 mm |
| Belt Table Dimensions | 460 mm x 360 mm |
* specifications subject to change without notice.
