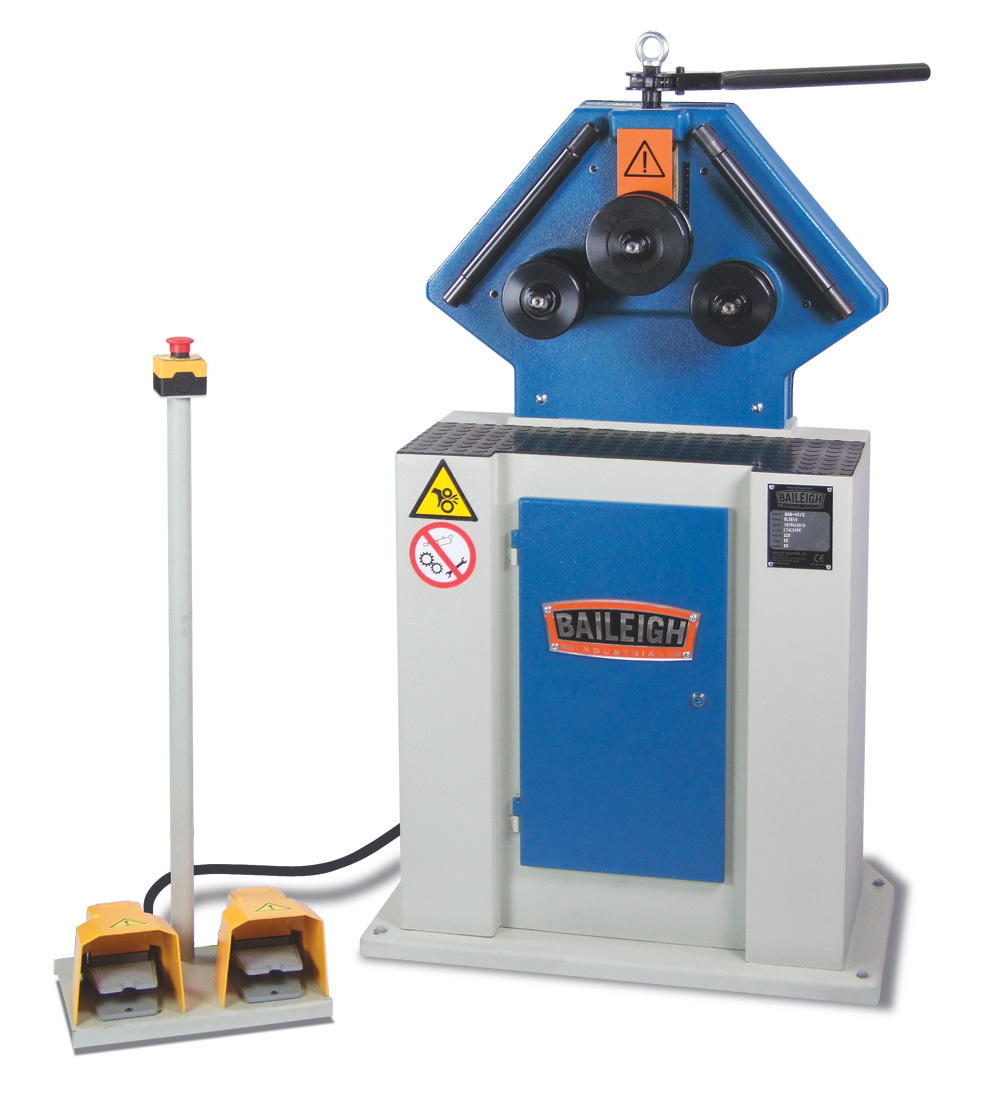

Baileigh Manual Roll Bender (R-M40) SKU: 2000366
Baileigh RM 40 Roll Bender
Profile bending is very popular in the world of metal fabrication, and as ideas get bigger so do the needs to complete the projects.
A great starting point for anyone looking for a ring roller is the R-M40 from Baileigh Industrial.
This machine uses a 220 volt, single phase motor to do the rolling and a ratchet style manual top roll to adjust forming pressure.
The R-M40 ring roller is perfect for rolling various sections such as hay hoops, coils of tubing, stair railing pipe and much more.
Like most of Baileigh Industrial's ring rollers, the machine is manufactured using heavy steel plate, industrial-grade transmissions, variable speed inverter driven drives, and much more.

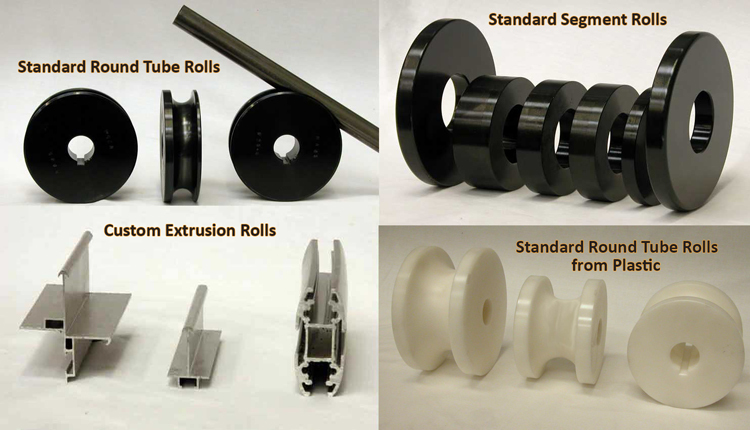

This ring roller can bend in both the horizontal and vertical positions and comes with a set of segment rolls that can be used for bending flat bar, solid rod, and some square applications.
Additional rolls are in stock for tubing and pipe, as well as other profiles.
A solid base has a storage cabinet for tooling.
Technical Details
| Item Number | R-M40 |
|---|---|
| Country of Manufacture | Portugal |
| Driven Rolls | 2 |
| Roll Adjustment | Manual |
| Pipe Capacity | Size: 33.7 (2.65) / Min. Dia.: 900mm |
| Round Tube Capacity | Size: 50 (2) mm / Min. Dia.: 700 mm |
| Square Tube Capacity | Size: 38 (2.1) mm / Min. Dia.: 991 mm |
| Solid Round Capacity | Size: 35 mm / Min. Dia.: 610 mm |
| Flat Bar Easy Way | Size: 76 (13) mm / Min. Dia.: 400 mm |
| Flat Bar Hard Way | Size: 57 (9.5) mm / Min. Dia.: 508 mm |
| Angle Iron Capacity | Size: 38 (4.7) mm / Min. Dia.: 558 mm |
| Shaft Diameter | 30 mm |
| Shaft Center Distance | 276 mm (lower rolls) |
| Shaft Center Distance Lower Rolls | 10.88" |
| Upper Roll Dia. | 130 mm |
| Lower Roll Dia. | 130 mm |
| Motor | 1.5 hp |
| Pinch | Single |
| Power | 220V, 50Hz, 1-phase |
| Shipping Weight | 254 kgs. |
| Material Type | All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel. |
| *Optional Tooling | Some applications may require optional tooling. Please contact a Technical Sales Specialist at Baileigh Industrial with specific application details. |
| Speeds | 5814 |
| Shipping Dimensions (Inches) | 1524 x 1118 x 1727 mm |
* specifications subject to change without notice.
