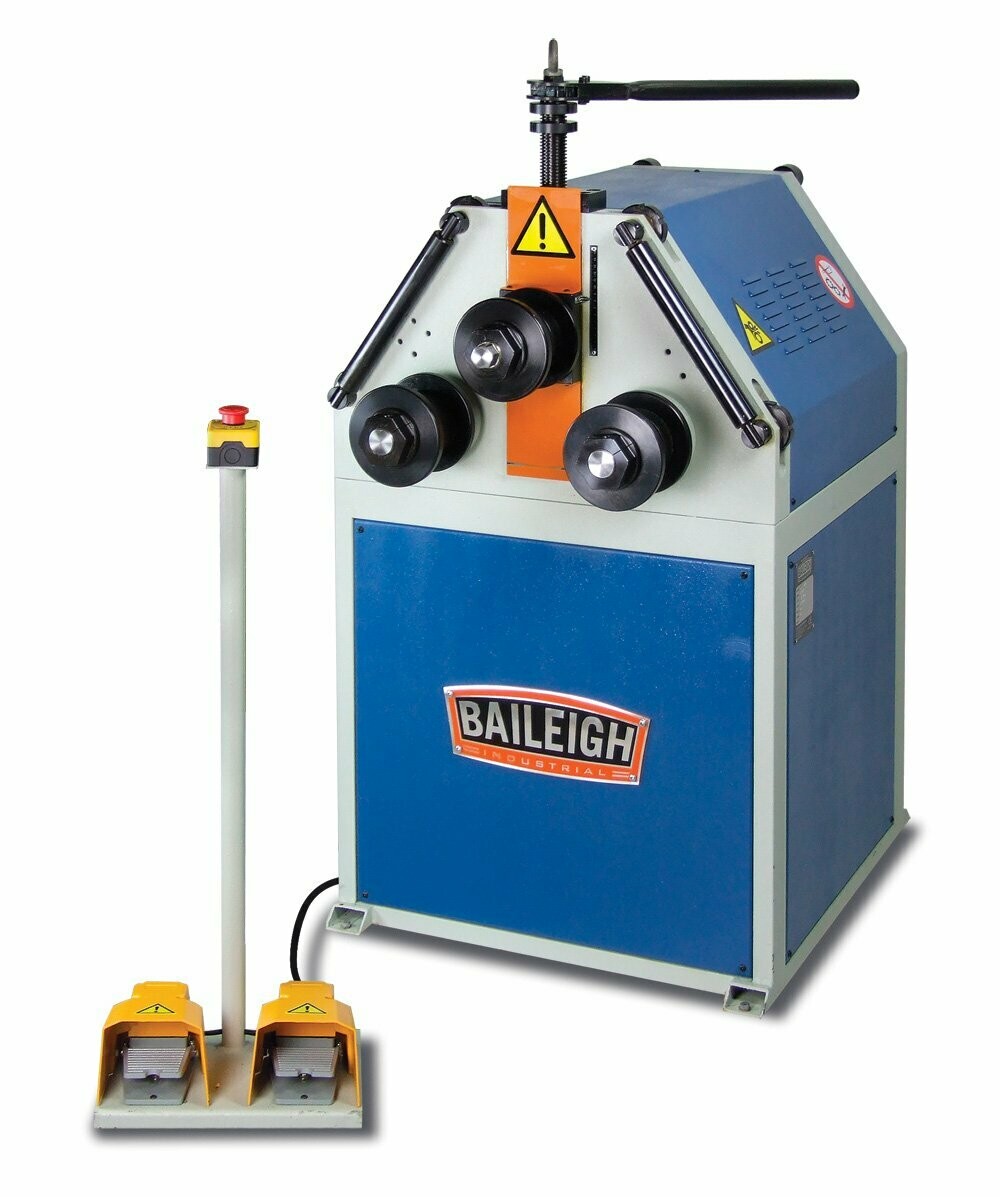

Baileigh Manual Roll Bender (R-M55) ( Subject to 8 weeks delivery leadtime)
Baileigh Manual Roll Bender (R-M55)
(Subject to 8 weeks delivery leadtime )
Highlights

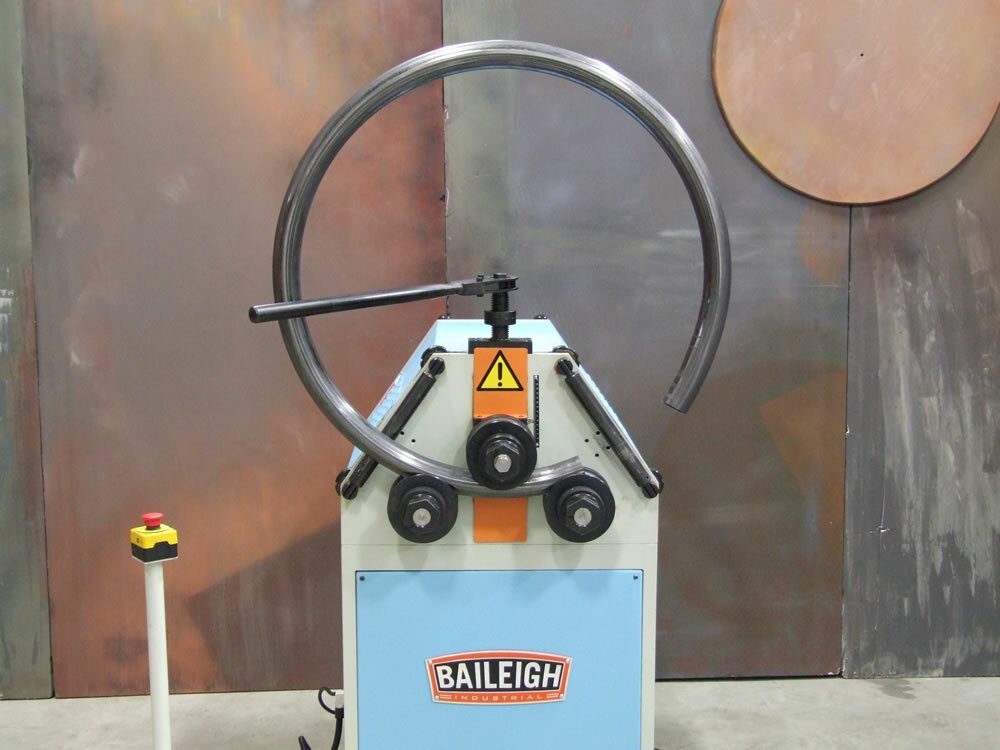

The R-M55 has been the flagship in the Baileigh Industrial roll bender line since its introduction. It has a 2" schedule 40 pipe capacity, which is impressive for a manual top shaft, two driven roll machine. To achieve this type of capacity, the R-M55 uses a variable speed inverter that is overload protected. This allows the operator to fine-tune the rolling speed for each material.
The R-M55 is very versatile, and can be used in any fabrication shop or even out in the field on job sites, as it only requires 220 volt, single phase power to operate.
It can be operated both the vertically for smaller rolling projects, as well as horizontally on its back, for large rolling projects, as there are feet on the bottom and back of the machine.
The R-M55 roll bender comes standard with foot pedal controls, segment rolls, and lateral roll guides to keep the material from twisting during the bend. The top roll position is manually controlled with the use of a large ratchet for more leverage, and the position is indicated on a scale for repeatable bends every time. Optional rolls can be purchased for different profiles like tubing, pipe, angle iron and much more.
For further information on the R-M55 or any of the other Baileigh Industrial roll benders, call please contact Traxx Industries today!
Technical Details
| Item Number | R-M55 |
|---|---|
| Country of Manufacture | Portugal |
| Driven Rolls | 2 |
| Roll Adjustment | Manual |
| Pipe Capacity | Size: 60 (4) mm / Min. Dia: 1,016 mm |
| Round Tube Capacity | Size: 70 (2.1) mm / Min. Dia.: 1,524 mm |
| Square Tube Capacity | Size: 50 (2.1) mm / Min. Dia.: 1,219 mm |
| Solid Round Capacity | Size: 35 mm / Min. Dia.: 508 mm |
| Flat Bar Easy Way | Size: 80 mm / Min. Dia.: 15 mm |
| Flat Bar Hard Way | Size: 60 mm / Min. Dia.: 10 mm |
| Angle Iron Capacity | Size: 50 (6.3) mm / Min. Dia.: 711 mm |
| Shaft Diameter | 50 mm |
| Shaft Center Distance | 13.12" |
| Upper Roll Dia. | 148 mm |
| Lower Roll Dia. | 148 mm |
| Motor | 1.5 hp |
| Pinch | Single |
| Power | 220V / 1-phase |
| Shipping Weight | 453 kgs. |
| Material Type | All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel. |
| *Optional Tooling | Some applications may require optional tooling. Please contact a Technical Sales Specialist at Baileigh Industrial with specific application details. |
| Speeds | 5754 |
| Shipping Dimensions (Inches) | 1524 x 1118 x 1727 mm |
* specifications subject to change without notice.
Tooling
Machine is supplied as standard with a set of top and bottom roll tooling.
Many other tools available for this product for round tube and pipe,
subject to quotation and application.
Contact Traxx Industries with specific application details

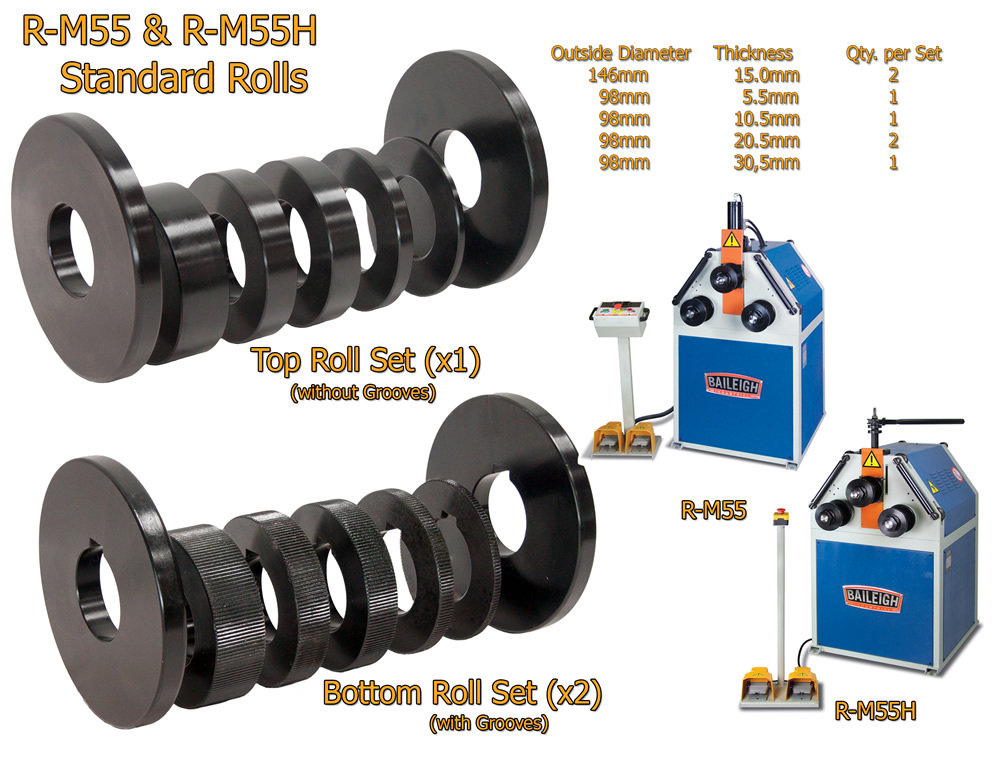

Standard roll sets supplied with the RM55 machine.
Special roll sets available to order.
