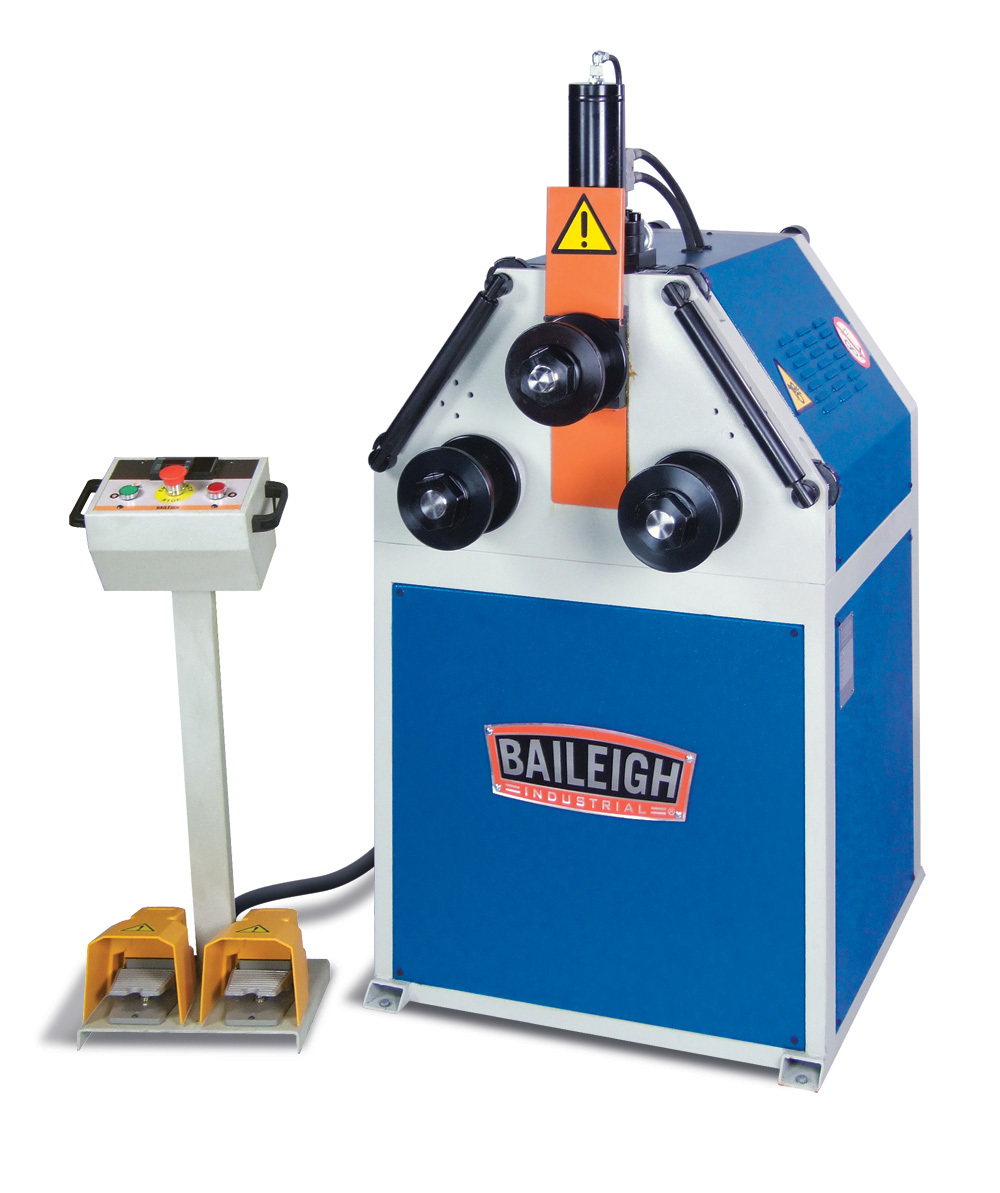

Baileigh Manual Roll Bender (R-M55H) ( Subject to 8 weeks delivery leadtime)
Baileigh Manual Roll Bender (R-M55H)
(Subject to 8 weeks delivery leadtime )
Highlights
The R-M55H profile bender’s design was developed from the R-M55. It has the same 2" schedule 40 pipe capacity, but incorporates an industrial-grade hydraulic system to control the top forming roll. This takes less effort and time for the operator to achieve the same radii. In addition to the hydraulic movement, there is also a digital readout to let the operator know exactly where the top shaft is positioned. This is very important for repeating bends.
The R-M55H has a powerful, direct gearbox drive system that delivers full torque when bending at full capacity. The R-M55H uses an inverter that is overload protected, to control the rolling speed. Being variable speed allows the operator to fine tune the rolling speed for each material.
Running on just 220 volt, single phase power to operate, can bend while both in a vertical position, for small rolling projects, or horizontally, for larger rolling projects.
Operation of the R-M55H profile bender is done from a portable pedestal that has a digital readout, controls for the top roll positioning, and foot pedal controls for forward and reverse of the rollers.
This profile bender is designed to offers years of production at a very affordable price.
For further information, please contact Traxx Industries today!
Technical Details
| Item Number | R-M55H |
|---|---|
| Country of Manufacture | Portugal |
| Driven Rolls | 2 |
| Roll Adjustment | Hydraulic |
| Pipe Capacity | Size: 60 (4) mm / Min. Dia: 1,016 mm |
| Round Tube Capacity | Size: 70 (2.1) mm / Min. Dia.: 1,524 mm |
| Square Tube Capacity | Size: 50 (2.1) mm / Min. Dia.: 1,219 mm |
| Solid Round Capacity | Size: 35 mm / Min. Dia.: 508 mm |
| Flat Bar Easy Way | Size: 101 (12.7) mm / Min. Dia.: 508 mm |
| Flat Bar Hard Way | Size: 128.5 (9.5) mm / Min. Dia.: 508 mm |
| Angle Iron Capacity | Size: 50 (6.3) mm / Min. Dia.: 711 mm |
| Shaft Diameter | 50 mm |
| Shaft Center Distance | 13.12" |
| Upper Roll Dia. | 148 mm |
| Lower Roll Dia. | 148 mm |
| Motor | 1.5 hp |
| Pinch | Single |
| Power | 220V / 1-phase |
| Shipping Weight | 453 kgs. |
| Material Type | All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel. |
| *Optional Tooling | Some applications may require optional tooling. Please contact Traxx Industries with specific application details. |
| Speeds | 5754 |
| Shipping Dimensions (Inches) | 1524 x 1118 x 1727 mm |
* specifications subject to change without notice.
Tooling
Machine is supplied as standard with a set of top and bottom roll tooling.
Many other tools available for this product for round tube and pipe,
subject to quotation and application.
Contact Traxx Industries with specific application details
Standard roll sets supplied with the RM55H machine.
Special roll sets available to order.
