Baileigh PR 409 Plate Roll
Baileigh PR 409 Plate Roll
Availability / Currently 30 weeks
Highlights

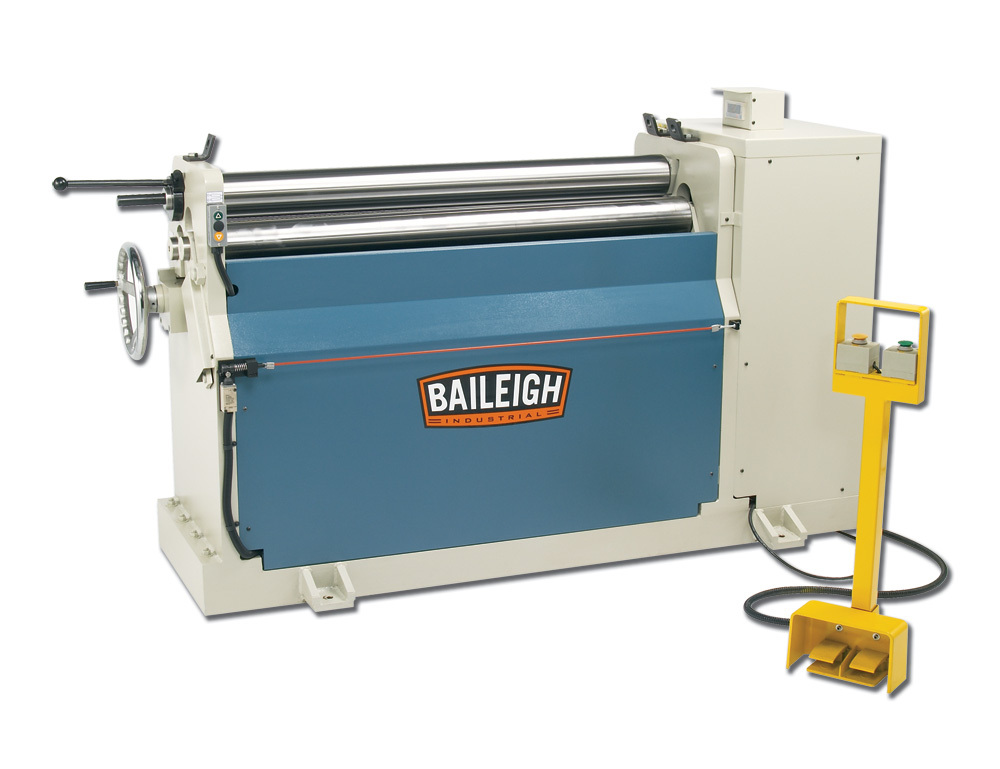

The PR-409 single pinch hydraulic plate roll from Baileigh Industrial is a great roll former that can form 4mm mild steel to a 178mm ring on its full length of 1300mm.
The PR-409 is operated entirely by an industrial grade hydraulic system.
A 2hp, 400 volt three phase motor controls the system which runs the movement of the back roll as well as the rolling of all three forming rolls.
Since all three rolls are driven, this cuts down on forming time that the operator has to spend on each job.
The operation of the PR-409 hydraulic plate roll is all done on a convenient foot pedestal.
Once the pinch is set the foot pedal contains forward and reverse pedal as well as buttons to control the up and down movement of the back roll.
A digital readout is also provided to identify the position of the back roll as well.
If you have projects that need to form cones, the PR-409 has an optional coning attachment available.
For safety, the PR-409 has emergency stop cable on the front and back of the machine.
To find out more information on the PR-409 or any of the hydraulic plate rolls from Traxx Industries, contact us today on 0796 3851 455.
Technical Details
| Item Number | PR-409 |
|---|---|
| Country of Manufacture | Taiwan |
| Forming Width | 1219 mm |
| Driven Rolls | 3 |
| Roll Speed | 5.85 rpm. |
| Upper Roll Dia. | 120.6 mm |
| Roll Adjustment Back | Hydraulic |
| Roll Adjustment Pinch | Manual |
| Minimum Forming Dia | 181 mm |
| Motor | 2 hp. |
| Capacity (Mild Steel) | 3.8 mm |
| Power | 220V – 3-phase |
| Shipping Weight | 1700 kgs. |
| Shipping Dimensions (Inches) | 2 |
* specifications subject to change without notice.
.
