Baileigh PT44 Plasma Table ( 1219 x 1219 mm) SKU: 2038802

Baileigh PT44 Plasma Table ( 1219 x 1219 mm) SKU: 2038802

Please check current price & lead time availability prior to order. Currently ex stock.

Highlights

Baileigh PT44 Plasma Table ( 1219 x 1219 mm) SKU: 2038802

• Cuts at a fixed height
• 4’ x 4’ working area
• 240V 1-phase CNC plasma table
• Control panel for X, Y, & Z axes

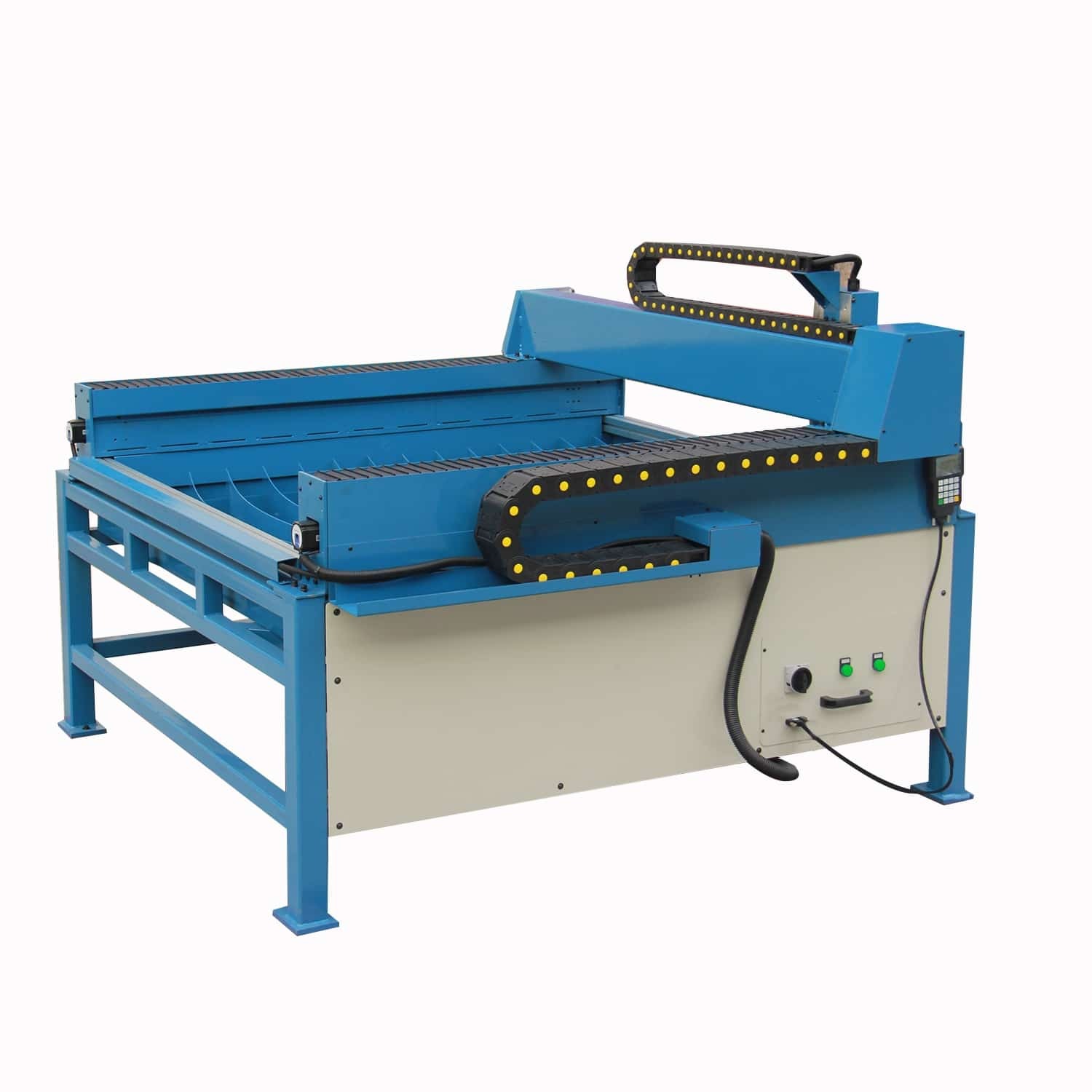

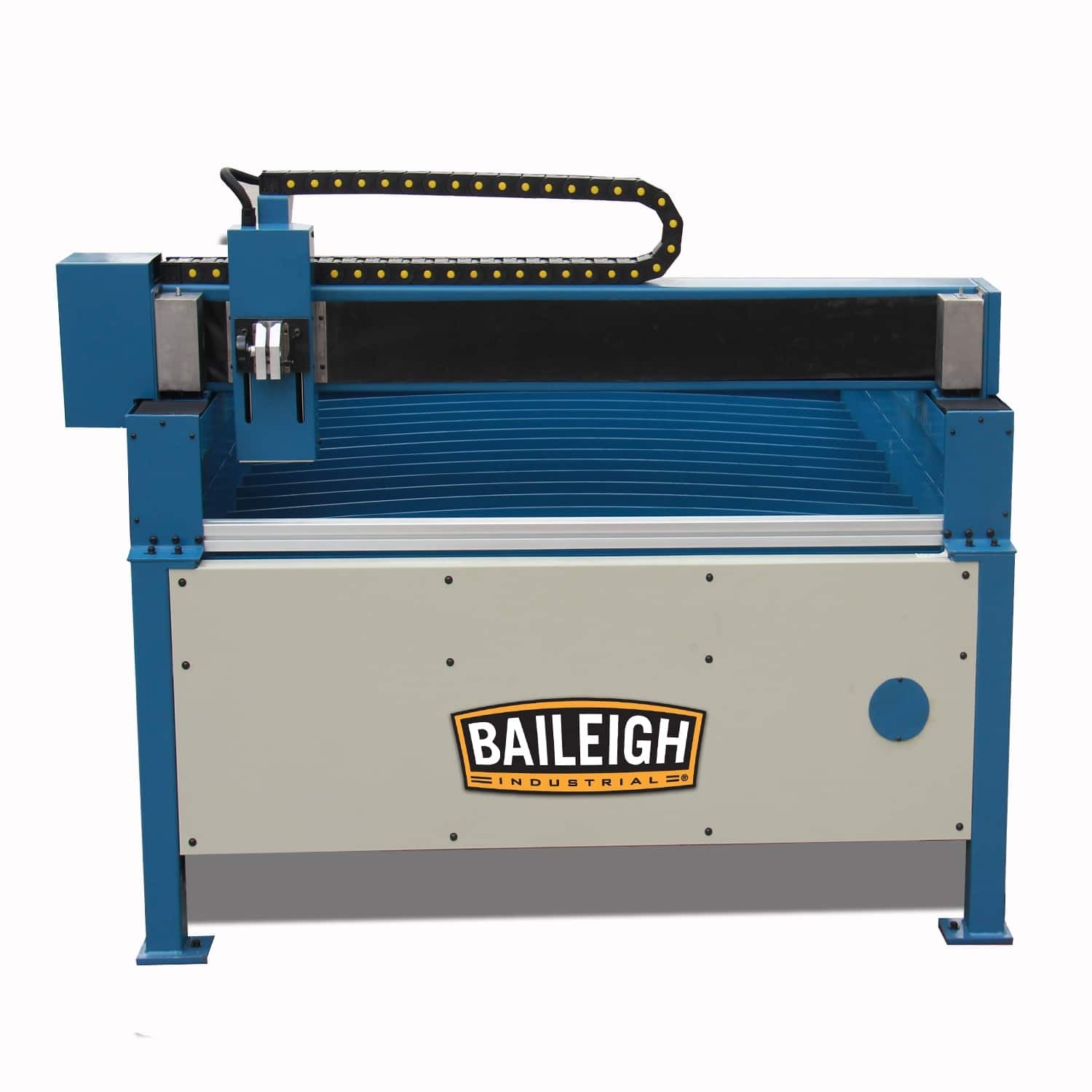

The PT-44 CNC plasma table is an industrial grade 4’ x 4’ (working area) plasma cutting table. This quality cnc plasma cutting machine requires 220 Volts of single phase power so it will work at almost any fabrication site throughout North America.

The PT-44 CNC plasma cutting table comes standard with an easy to use design software package that allows the user to design or plot out a job on any computer and load the plasma table via data wire or simple USB stick. The plasma cutting table comes standard with a control podium and hand held pendant with simple jog controls for the X, Y, and Z as well as program start and stop controls.

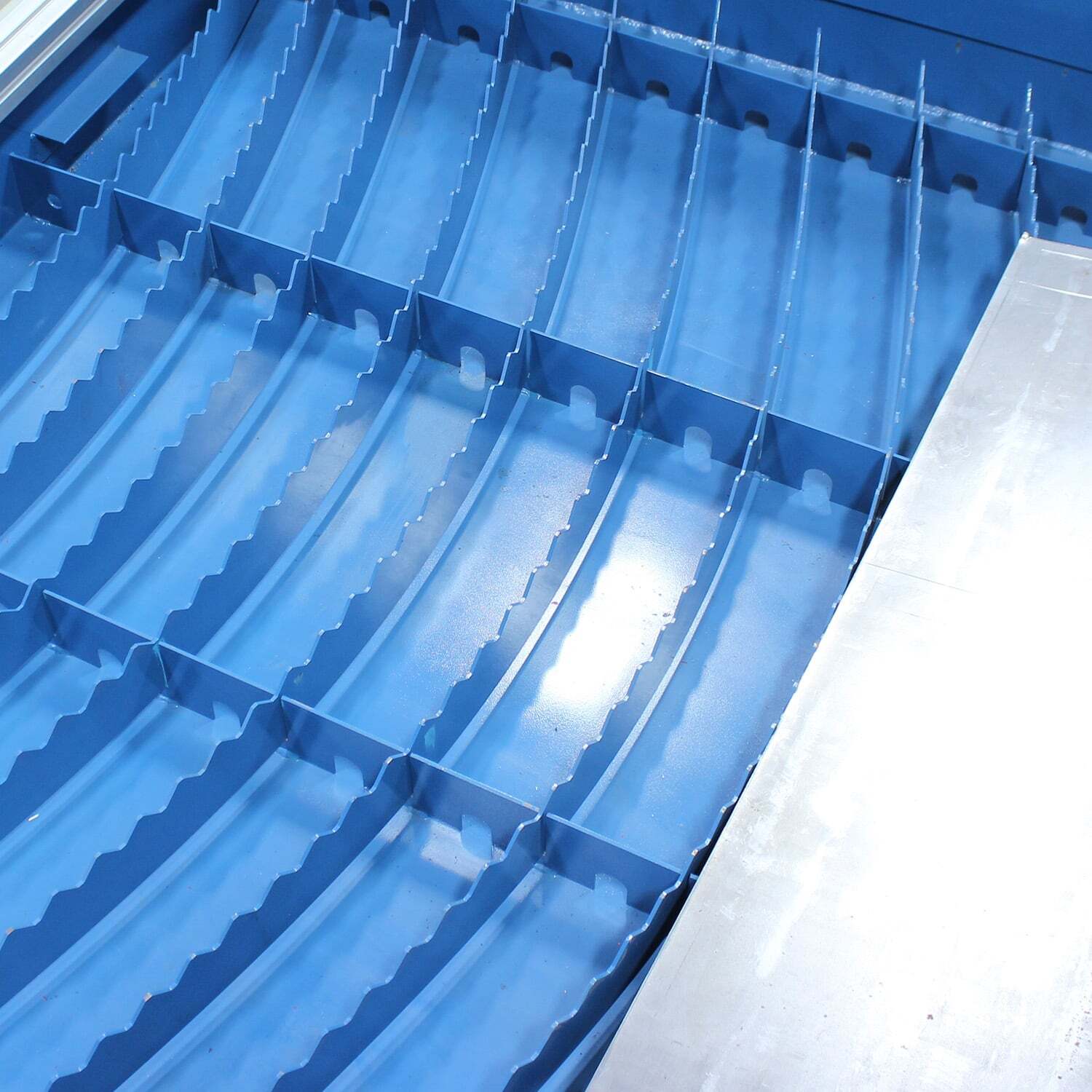

This is a heavy duty industrial grade plasma table that weighs 1500 lbs. and is constructed of heavy gauge boxed steel to easily support the max plate size and thickness without flinching. The X, Y, and Z axis are controlled by stepper motors.

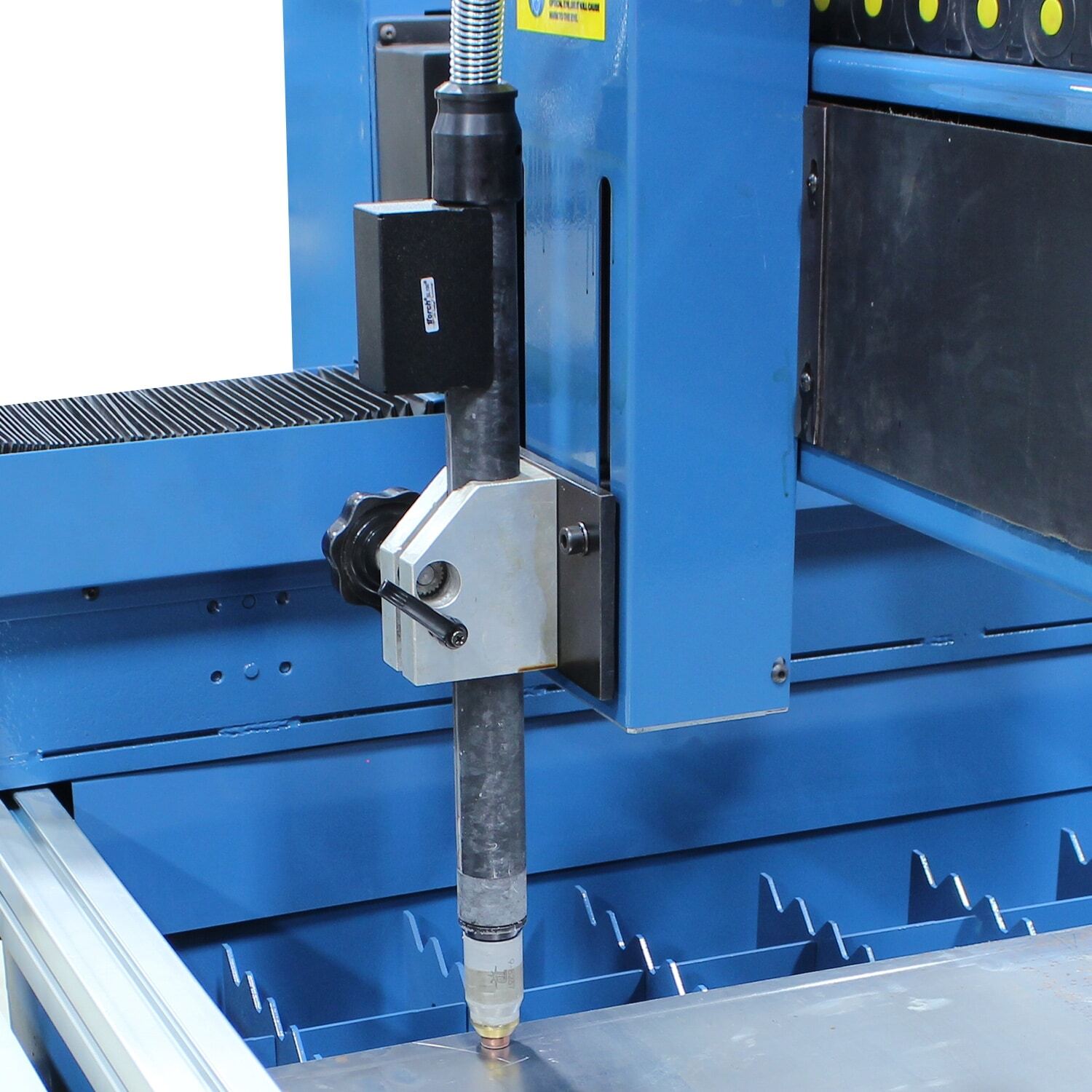

The table comes standard with industrial down draft and water assist cooling on the plasma cutting head to keep the part clean and cool. This CNC plasma table comes pre-built and just requires electrical service and installation of the plasma cutting system.

Pair this with Thermal Dynamics Cutmaster plasma system that is sized for your application and the PT-44 is the perfect industrial grade cnc plasma table for any shop that requires heavy duty machinery at an affordable price. Call your Traxx Industries re for further information.

BOBCAD-CAM EXPRESS DESIGN SOFTWARE (INCLUDED)

The PT-44 comes standard with BobCAD-Cam Express programming software.

You can design or plot out your project on any computer and load the plasma table via a USB drive.

For further information, please call Traxx Industries Limited on 0796 3851 455

Technical Details

Item Number PT-44
Travel Speed 315 Inches Per Minute
Table Dimensions 59″ x 64″
Table Load Capacity 1″ Mild Steel
Capacity Depends on Plasma System Chosen
Drive Stepper Motor
Power 220V / 1-phase
Shipping Weight 1300 lbs
Shipping Dimensions (Inches) 72″ x 72″ x 60″

* specifications subject to change without notice.

The Plasma Table needs the addition of a

plasma torch and power source to complete

the cutting system , which is offered

seperately as an optional extra to the

table to enable budget and capacity

to be chosen by the client in line

with the needs of the clients business.

As dealers for Baileigh we have partnered

with them with Victor Technologies

( Thermal Dynamics ) on their well proven

range of plasma power sources and machine

cutting torches which are detailed below.

Clients should specify which optional

size of unit they require based on their

capacity needs.

Options

Thermal Dynamics

Cutmaster Series

Automation Plasma

Torch & Power Source.

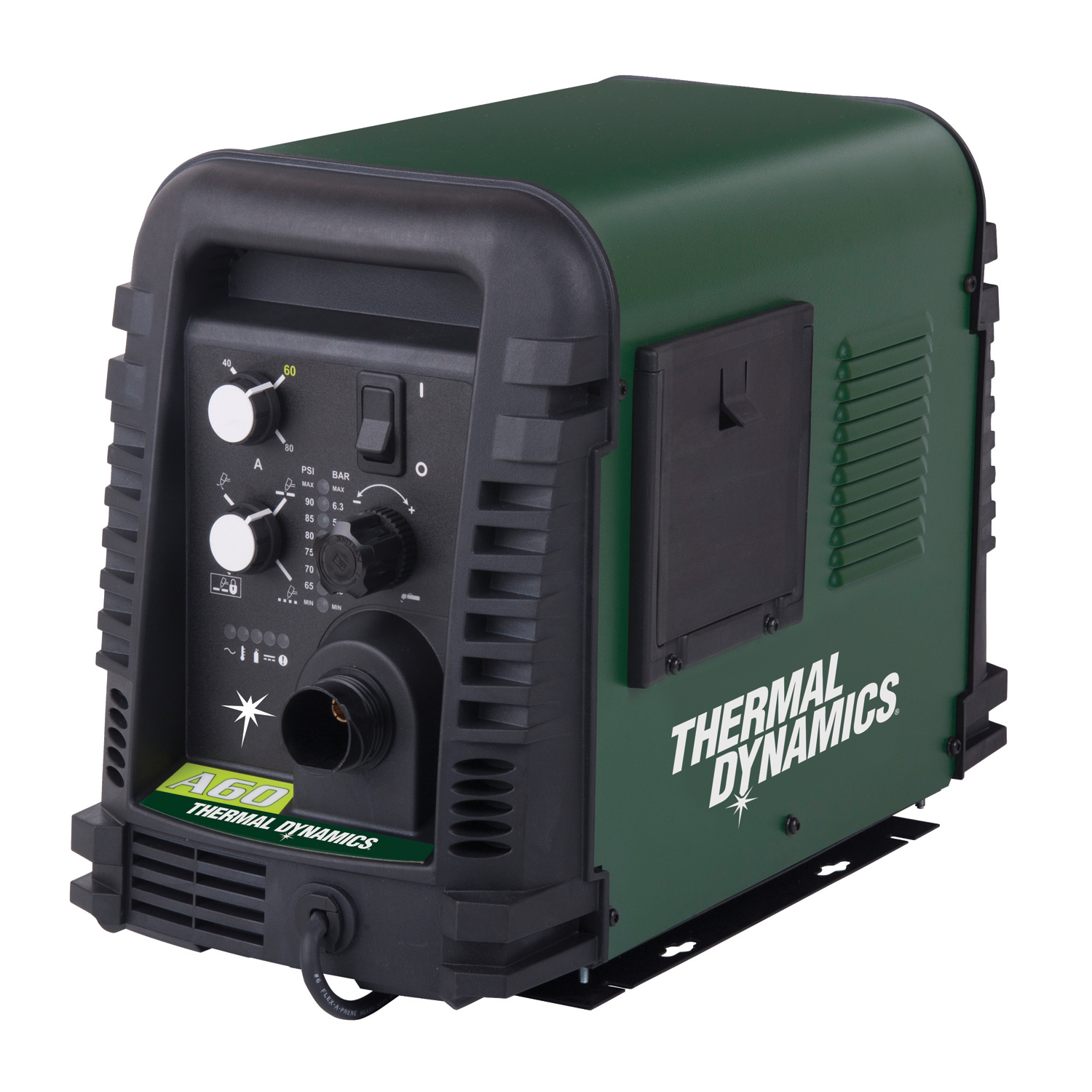

1/ Thermal Dynamics Plasma Torch (A-60) SKU: 2000444
