Baileigh Precision Lathe PL 1860E
Baileigh Precision Lathe PL 1860E
Highlights
If you are looking for a large tool room lathe at a good price, take a look at the Baileigh Industrial PL-1860E metal lathe. The PL-1860E has a 18’ swing and 60” bed and operates on 220 volt three phase power. This is the perfect lathe for those small shops or schools that need large capacity but are on a budget. But just because it is sold at a lower price doesn’t mean that is without features.
The PL-1860E is made just like all of our other metal lathes with only the best components. The massive fully cast base is built to stand up to years of use and gives great support to the main frame of the machine. All of the ways are precision ground, hardened, and then polished to ensure smooth movement. The bed is cross-ribbed for added strength and stability as well. And with 12 spindle speeds to chose from the PL-1860E has the perfect rpm for whatever you are cutting.

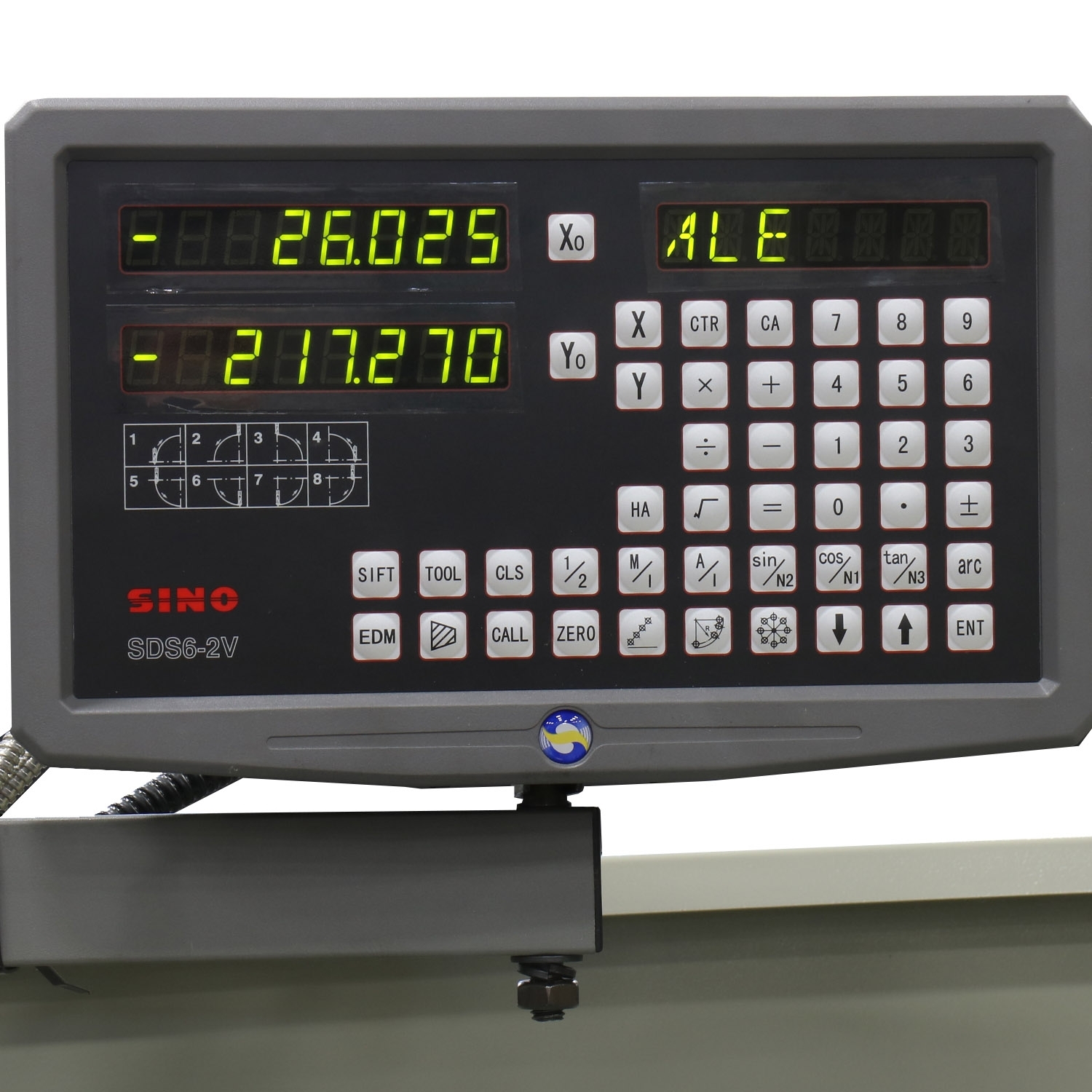

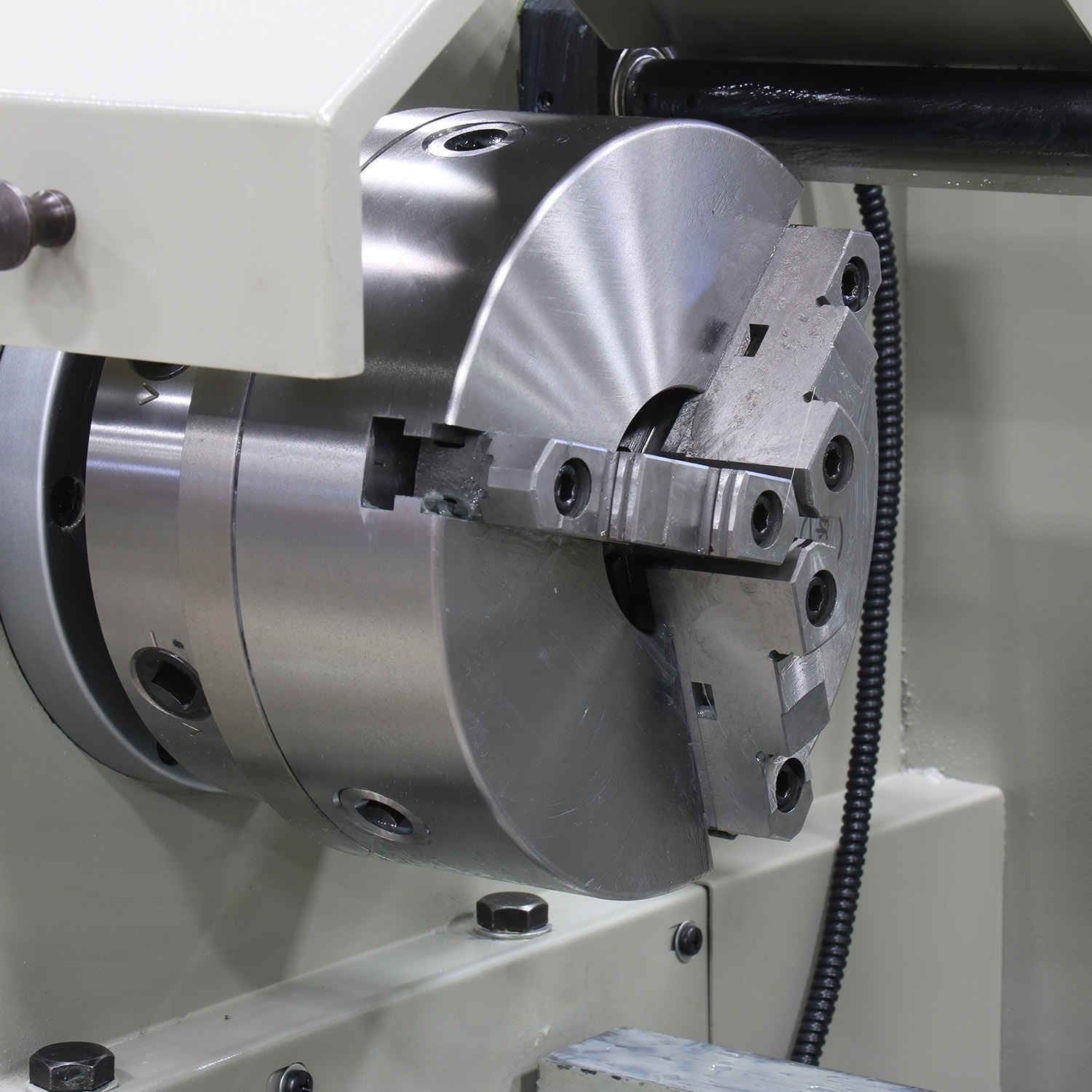

The PL-1860E metal working lathe includes many features not found on other machines in this price category. Things like the 2 Axis digital readout system, 8" 3-jaw universal chuck, 13” four jaw chuck, 8" back plate, coolant system, steady rest, follow rest, headstock chuck guard with micro switch, Rear Splash Guard, and halogen work light are all included.
Technical Details
| Item Number | PL-1860E |
|---|---|
| Speed Range | 25 - 2000 rpm |
| Cross Feed Metric (qty / type) | 17220 |
| Longitudinal Feed Metric (qty / type) | 42 / .033-1.7 mm / rev. |
| Longitudinal Feed Imperial (qty / type) | 42 / .0011" - .0633" / rev. |
| Speed Number | 12 |
| Spindle Bore | 58 mm |
| Motor | 7.5 hp |
| Spindle Nose | D1-6" |
| Threads Diametrical Qty Type | 50 / 4-112 D.P |
| Threads Imperial Qty Type | 60 / 2-112 T.P.I |
| Threads Metric Qty Type | 41 / .1-14 mm Pitch |
| Threads Module Qty Type | 34 / .1-7 M.P |
| Spindle Taper Sleeve | Morse #4 |
| Spindle Taper Nose | Morse #6 |
| Tailstock Quill Dia | 60 mm |
| Tailstock Quill Taper | Morse #4 |
| Tailstock Quill Travel | 120 mm |
| Compound Rest Travel | 120 mm |
| Center Length | 1530 mm |
| Bed Width | 300 mm |
| Main Motor | 7.5 hp |
| Lead Screw Diameter | 32 mm |
| Max. Swing In Gap Length | 155 mm |
| Max. Swing Over Bed | 460 mm |
| Max. Swing Over Cross Slide | 274 mm |
| Max. Swing In Gap Dia | 690 mm |
| Motor Coolant | 1/8 hp |
| Cross Feeds Imperial Qty Speed | 42 / .00033"-.01837" / rev. |
| Cross Slide Travel | 230 mm |
| Power | 400 volt three phase |
| Shipping Weight | 2385 kgs. |
| Shipping Dimensions (Inches) | 2720 x 1040 x 1370 mm |
* specifications subject to change without notice.
