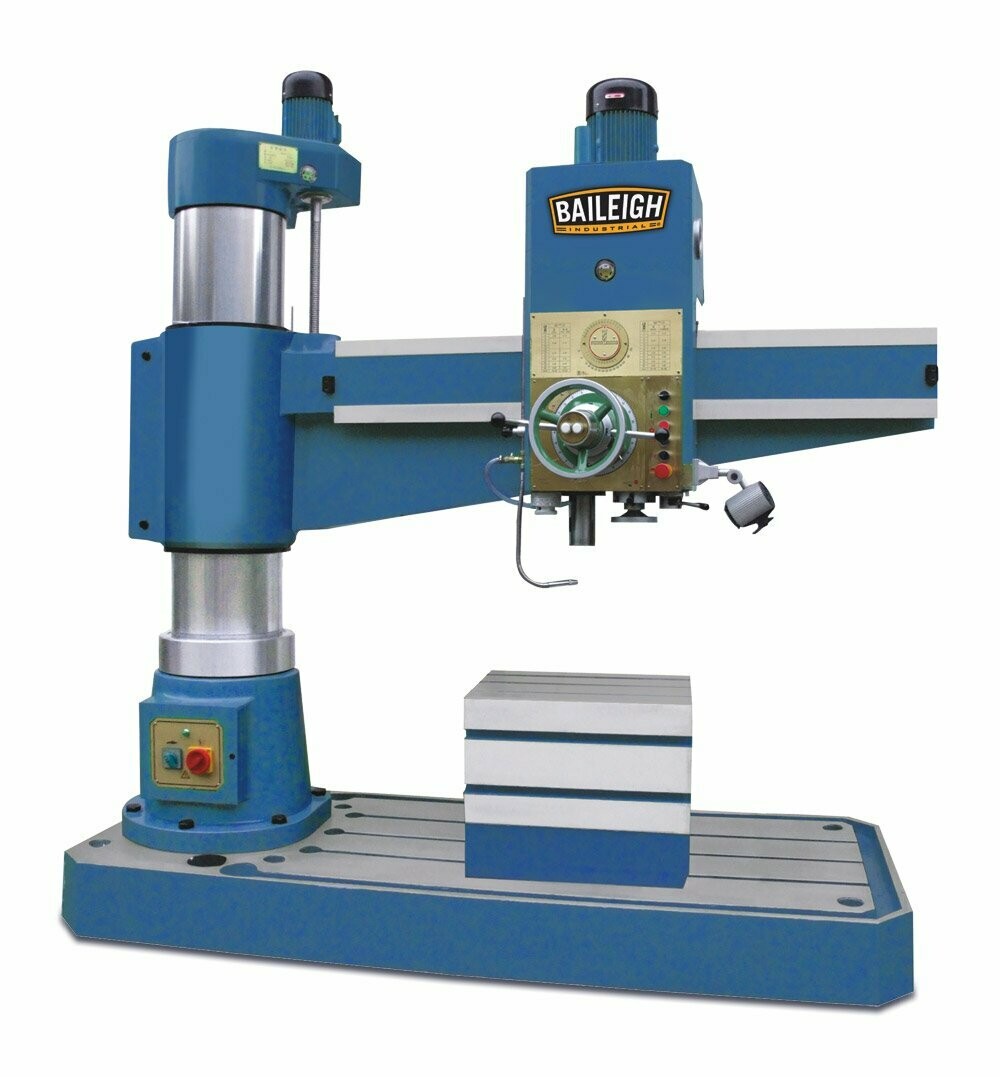

Baileigh RD-1600H Hydraulic Radial Drill Press SKU: 2005977

Name: Baileigh RD-1600H Hydraulic Radial Drill Press SKU: 2005977
SKU: 2005977
Price: 17037.0 GBP
Availability: InStock

Store / Welding & Fabrication Plant, Consumables

£17,037.00

In stock

Product Details

Baileigh RD-1600H Hydraulic Radial Drill Press SKU: 2005977

Highlights

2" maximum drilling capacity
Heavy-duty construction
Power downfeed
MT5 spindle
Large 63" column
5.25hp motor
400 volt, three phase
Includes spindle protection cover, quick chuck, tapping chuck, industrial coolant system, worklight, and box-shaped worktable.

Technical Details

Item Number	RD-1600H
Max. Drill Capacity	2"
Distance from Spindle to Column Center	13.7" to 63"
Diameter of Column	13.7"
Spindle Taper	MT5
Spindle Travel	12.4"
Spindle Speed Range	25 to 2000 rpm
Range of Spindle Feeds	.001" to .125"
Spindle Feeds	16
Distance Between Spindle Nose and Base	12.6" to 48"
Table Size	24.8" x 19.6" x 19.6"
Base Size	94.4" x 39.3" x 7.8
Overall Size	98" x 40" - 96" x 103" - 112" (accounting for beam movements)
Motor	5.25 hp
Power	220V 3-phase
Shipping Weight	9,460 lbs.
Shipping Dimensions (Inches)	102" x 44" x 100"

* specifications subject to change without notice.

Clients are responsible for offloading this

machine tool from our delivery lorry.

Optional Tooling

Various optional tools are available from Traxx Industries Limited for use with the machine including the following.

1/ 52TLG 16 Clamp Set

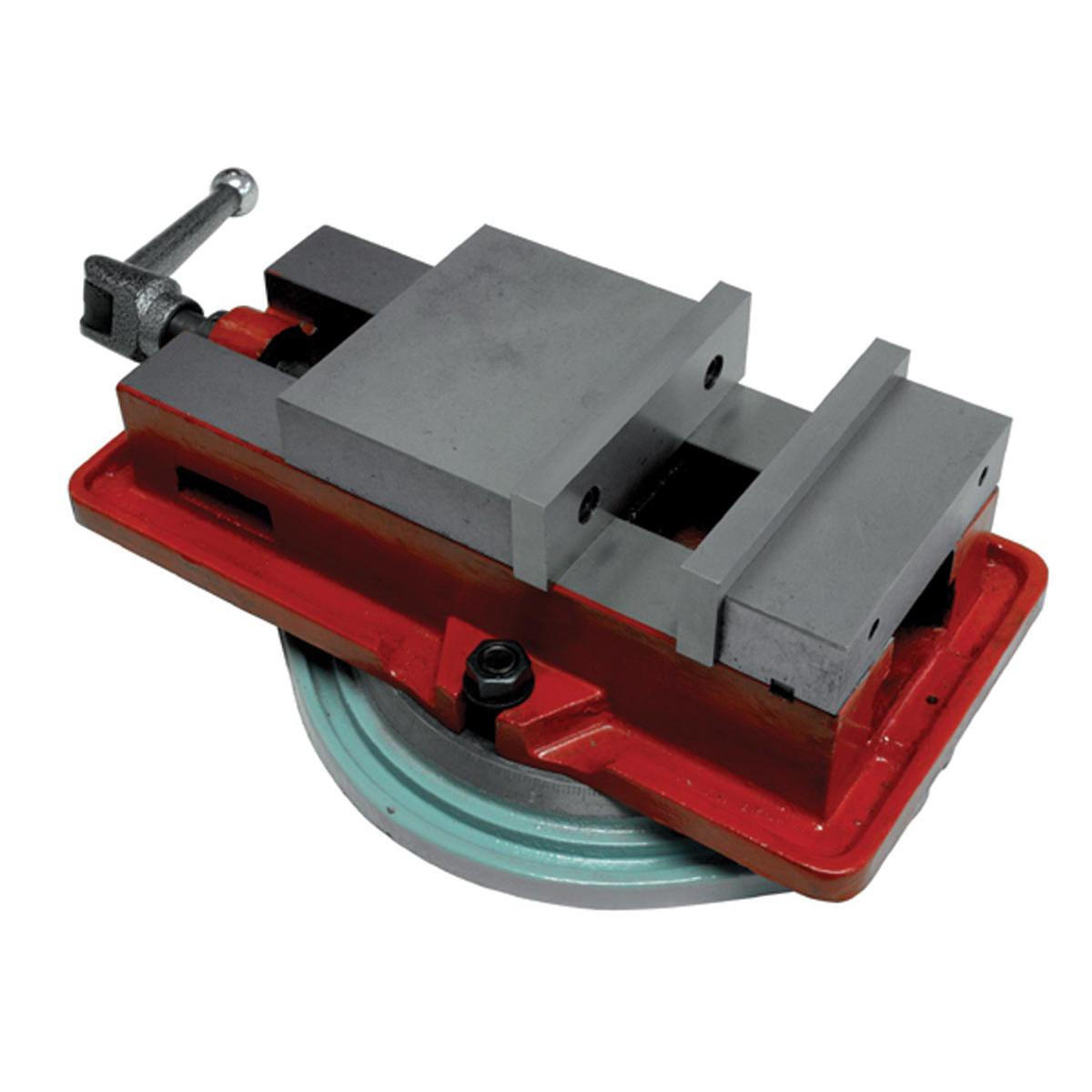

2/ IF 160 Industrial Machine Vice

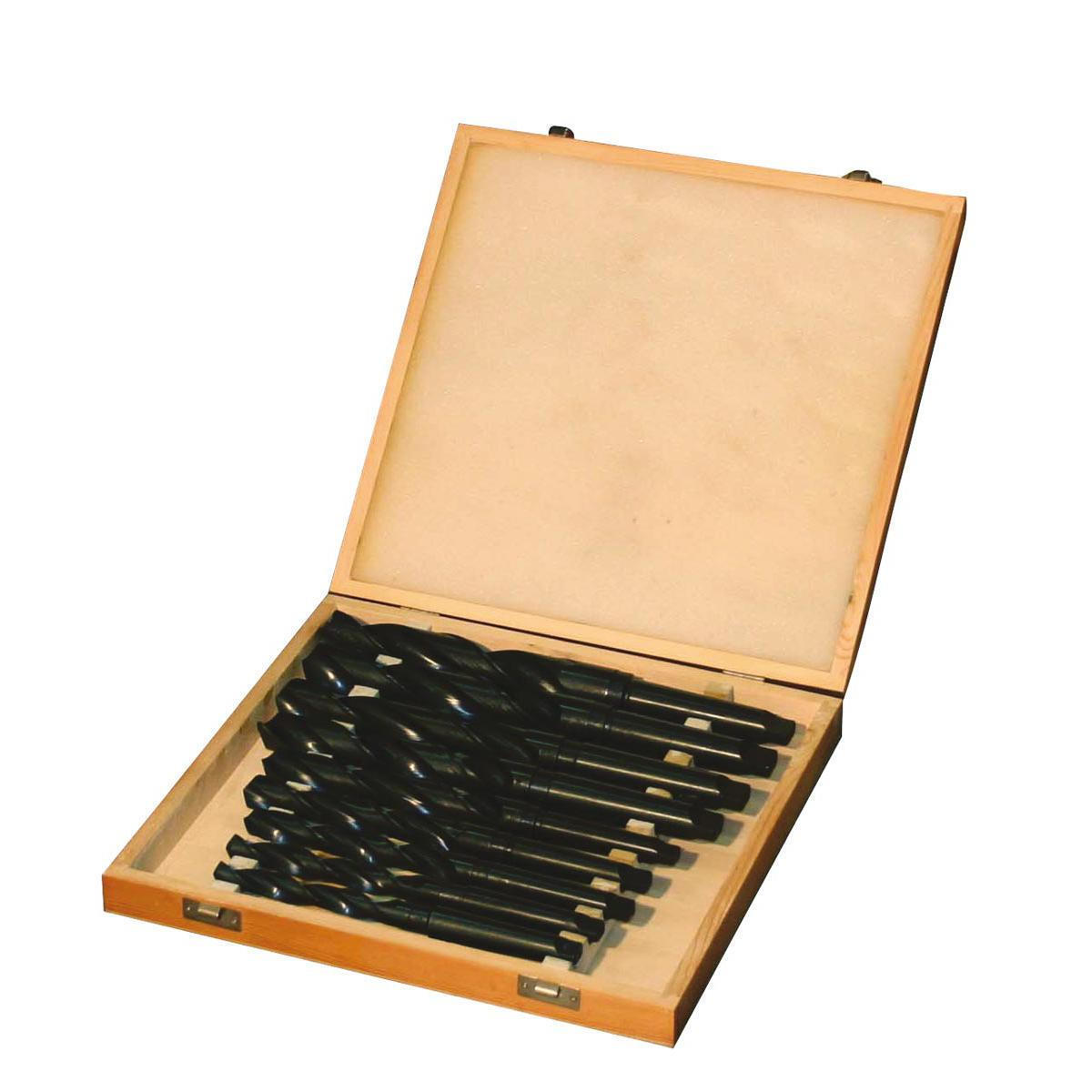

3/ SPS MK3 Drill Set

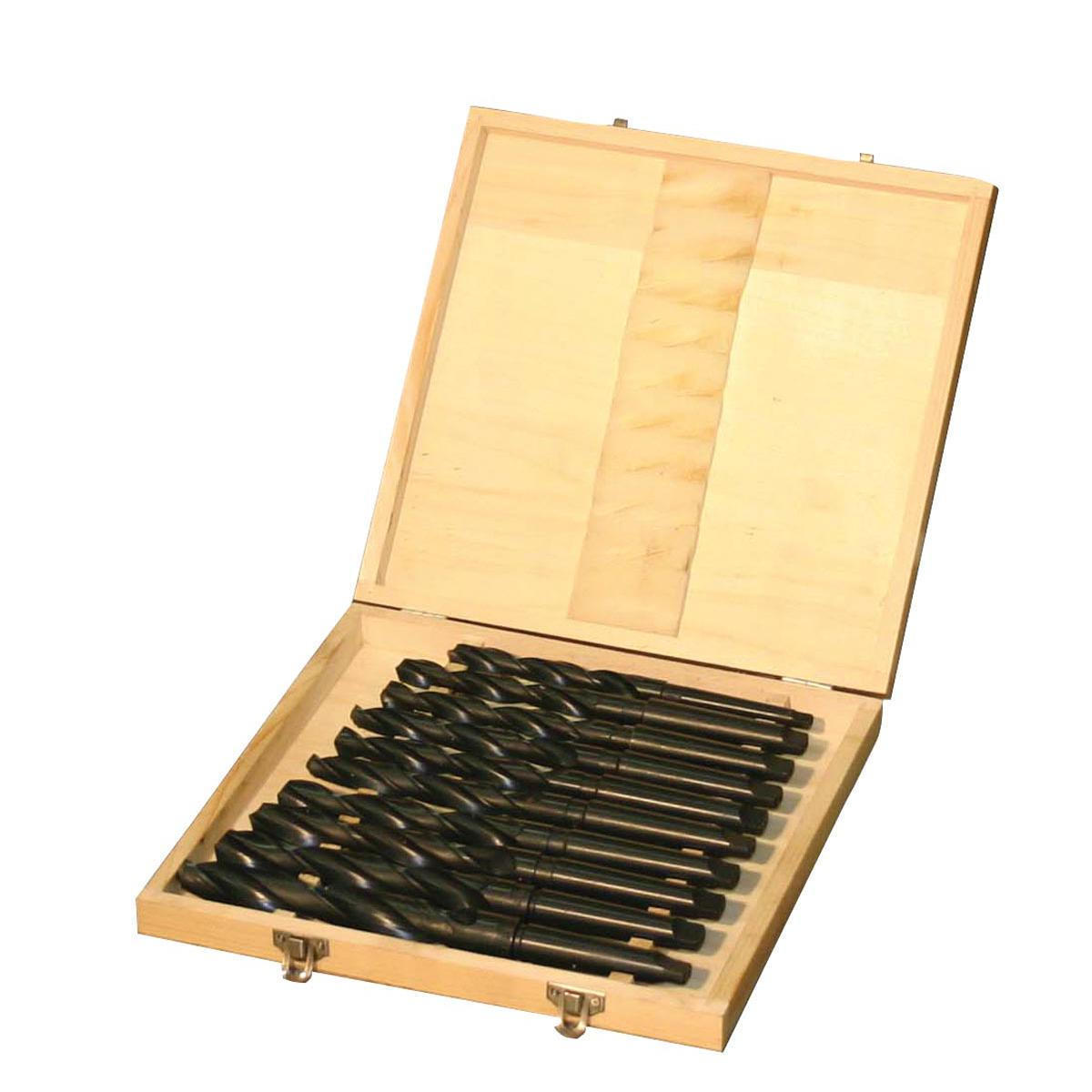

4/ SPS MK2 Drill Set

5/ ZX 7020 Cross Table
