Baileigh RDB-350-TS Touchscreen Programmable Tube Bender

Baileigh RDB-350-TS Touchscreen Programmable Tube Bender

Highlights

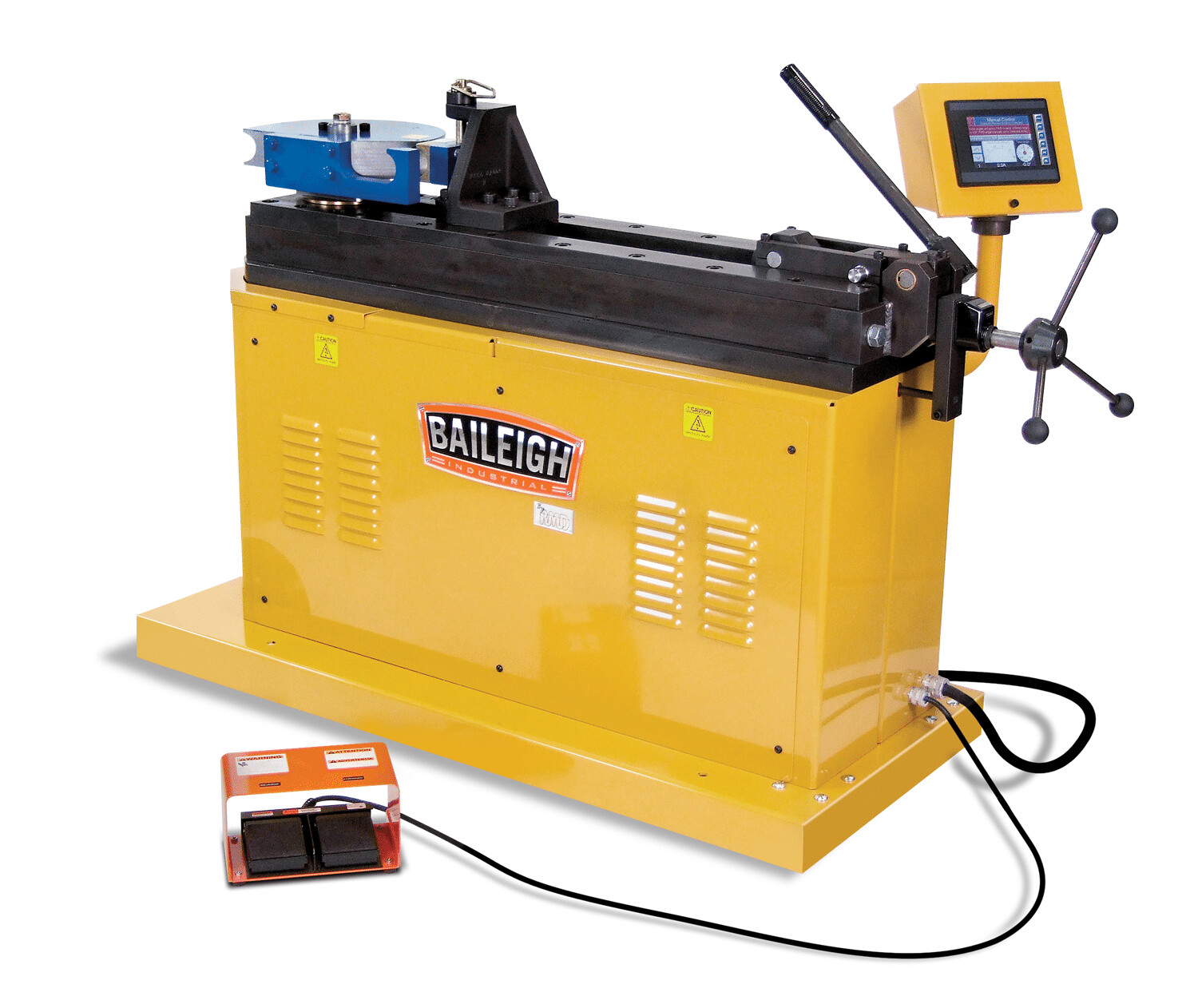

Baileigh RDB-350-TS Touchscreen Programmable Tube Bender

The true workhorse of the Baileigh Industrial line of tube and pipe benders is the RDB-350-TS. Designed and built in the USA to stand up to the rigors of production at any shop. This bender has the capacity to bend 2.5” schedule 40 pipe and up to 3” tube with a .187” wall thickness. As with all Baileigh Industrial tube and pipe benders, the RDB-350-TS accepts Baileigh Industrial’s standard drop-on tooling. And if you have a unique application, Baileigh Industrial can make just about any custom tooling that your application will call for. The RDB-350-TS also features one shot bending to 360°, both left and right. 180° bends can be achieved in around 16 seconds, and a quick release counter die system allows for maximum efficiency.

The RDB-350-TS has a user friendly touch-screen controller that allows the user to store up to 170 programs, with up to 10 bends per program within the memory of the controller itself, and unlimited program storage with a micro SD memory card port (standard 2GB SD card, max). The RDB-350-TS can be programmed to incorporate many variables, such as desired angle, spring back for the material, and speed of bending. Another unique feature of this pipe bender is the 320° rotation of the controllers head. This feature allows the RDB-350-TS to be operated from any location around the machine.

Like all Baileigh computer controlled tube and pipe benders, the RDB-350-TS can accept a rotary positioning table. This table is available in various lengths for repeatable bends in a single piece of material. When the table is attached to the bender, it helps achieve very accurate bends on varying planes, as well as consistent measurements between bends.

• 76mm Ø x 5mm mild tube capacity
• 76mm Ø x 3mm st/st tube capacity
• Touchscreen Operation

This tubing bender for sale will stand up to the rigors of any shop—and save you time. The RDB-350-TS industrial tubing bender bends 180° in 16 seconds. And its quick-release die system speeds up production.

• Proudly engineered and made in the USA.
• Capacity of 2.5” schedule 40 pipe and 3” tube with .187” wall thickness.
• 24” centerline radius maximum.
• Bends to 360° in one shot, both left and right.
• You can program the desired angle, material springback, and bend speed for easy repeatability.
• Programmer can also keep track of rotational orientation.
• Touchscreen controller designed for user-friendly programming.

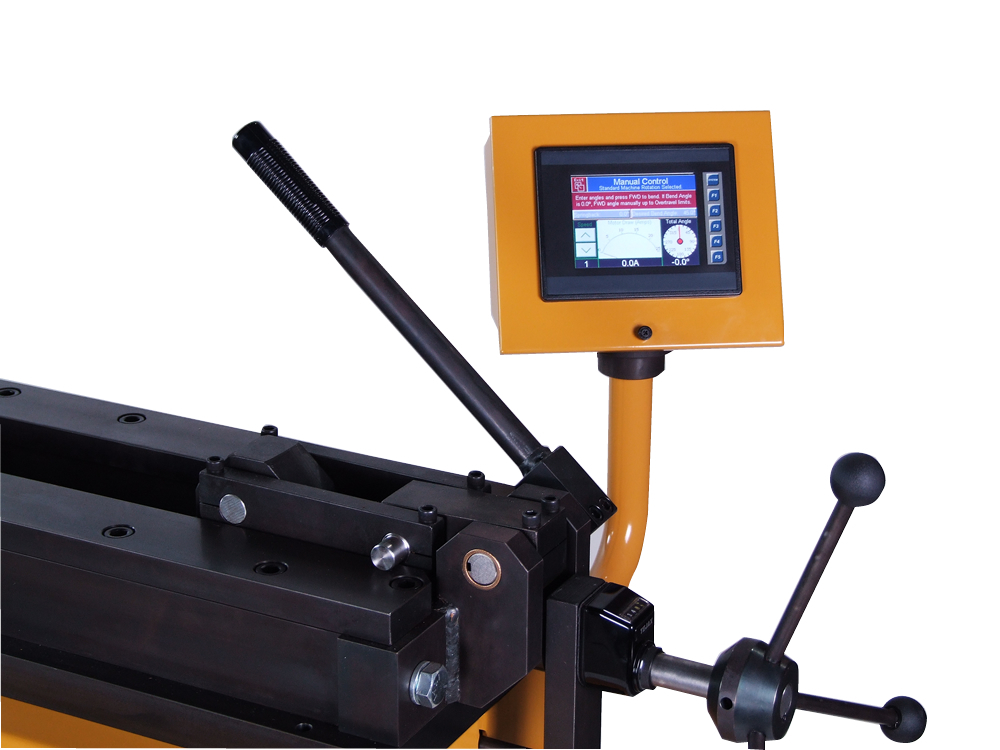

• 320° rotation of the controller lets you operate RDB-350-TS from any side of the machine.
• Internal memory can store up to 170 programs of 10 bends per program.
• Unlimited program storage/backup via the micro SD port(standard 2CB SD card).

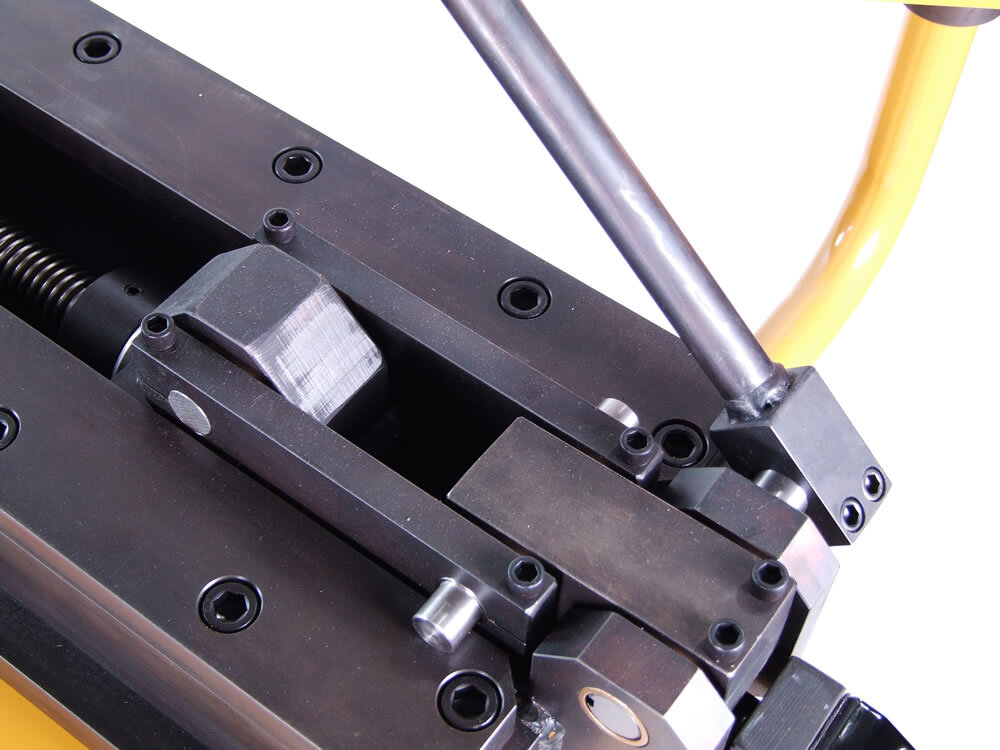

• Quick-release counter die system allows allows you to load and unload the pipe bender quickly for high production runs.

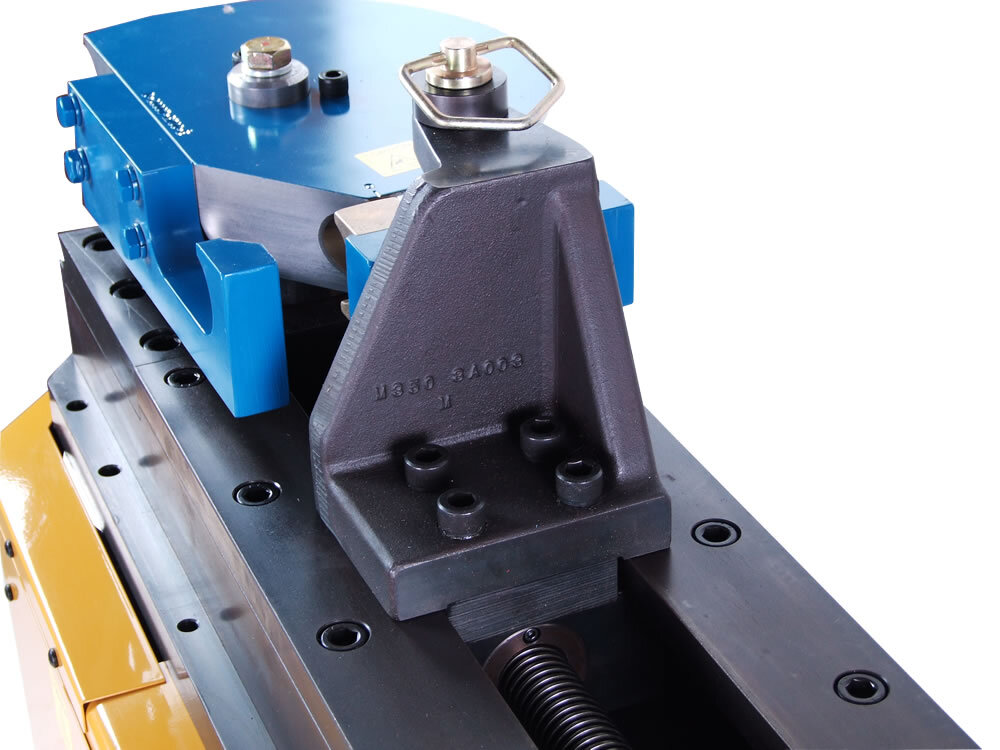

• Like all Baileigh tubing benders, the RDB-350-TS is compatible with our standard drop-on tooling. We can also make custom tooling for your application.
• Accepts a rotary positioning table, available from in several lengths, to achieve accurate bends on varying planes.
• We cover this pipe bender with a 1-year parts warranty.

Technical Details

Item Number RDB-350-TS
Country of Manufacture United States
Minimum CLR 13 mm
Minimum OD 6 mm
Maximum Speed To 180° 16 Sec.
Mild Steel Solid Rod 38 mm
Mild Steel Pipe Schedule 40 73 mm x 5 mm
Mild Steel Round Tube Wall 76 mm x 5 mm
Mild Steel Square Tube (Wall) 76 mm x 3 mm
Stainless Steel Pipe Schedule 40 60 mm x 4 mm
Stainless Steel Round Tube Wall 76 mm x 3 mm
Chromolly Round Tube Wall 64 mm x 3 mm
Aluminum Pipe Sch. 40 89 mm x 5 mm
Aluminum Round Tube Wall 89 mm x 6.5 mm
Maximum Center Line Radius Clr 610 mm
Power 400V, 50Hz, 3-Phase
Shipping Weight 681 kg.
Shipping Dimensions (Inches) 1753mm x 813mm x 1168mm

* specifications subject to change without notice.

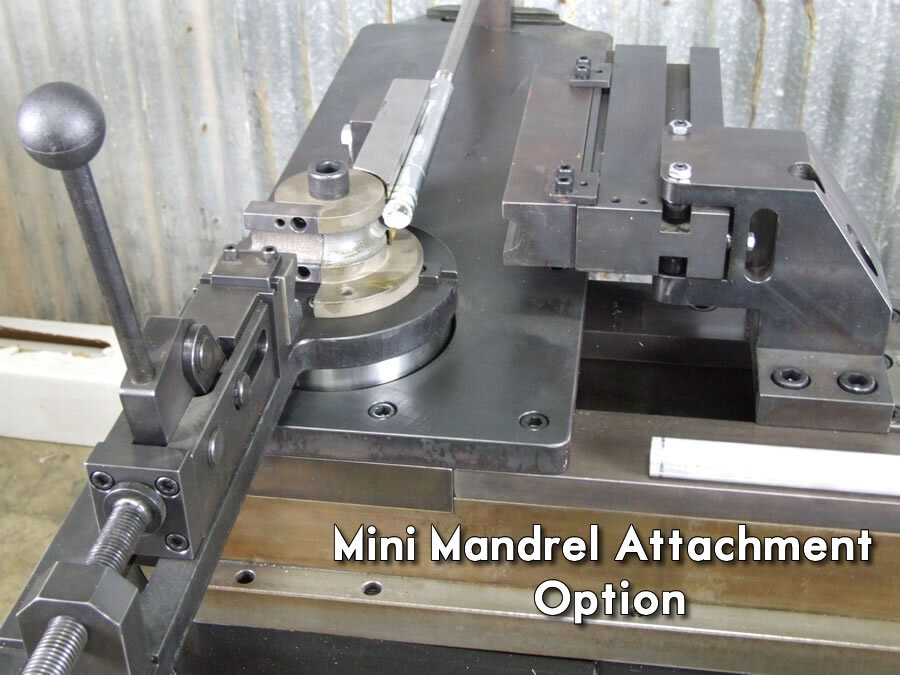

Optional Tooling
