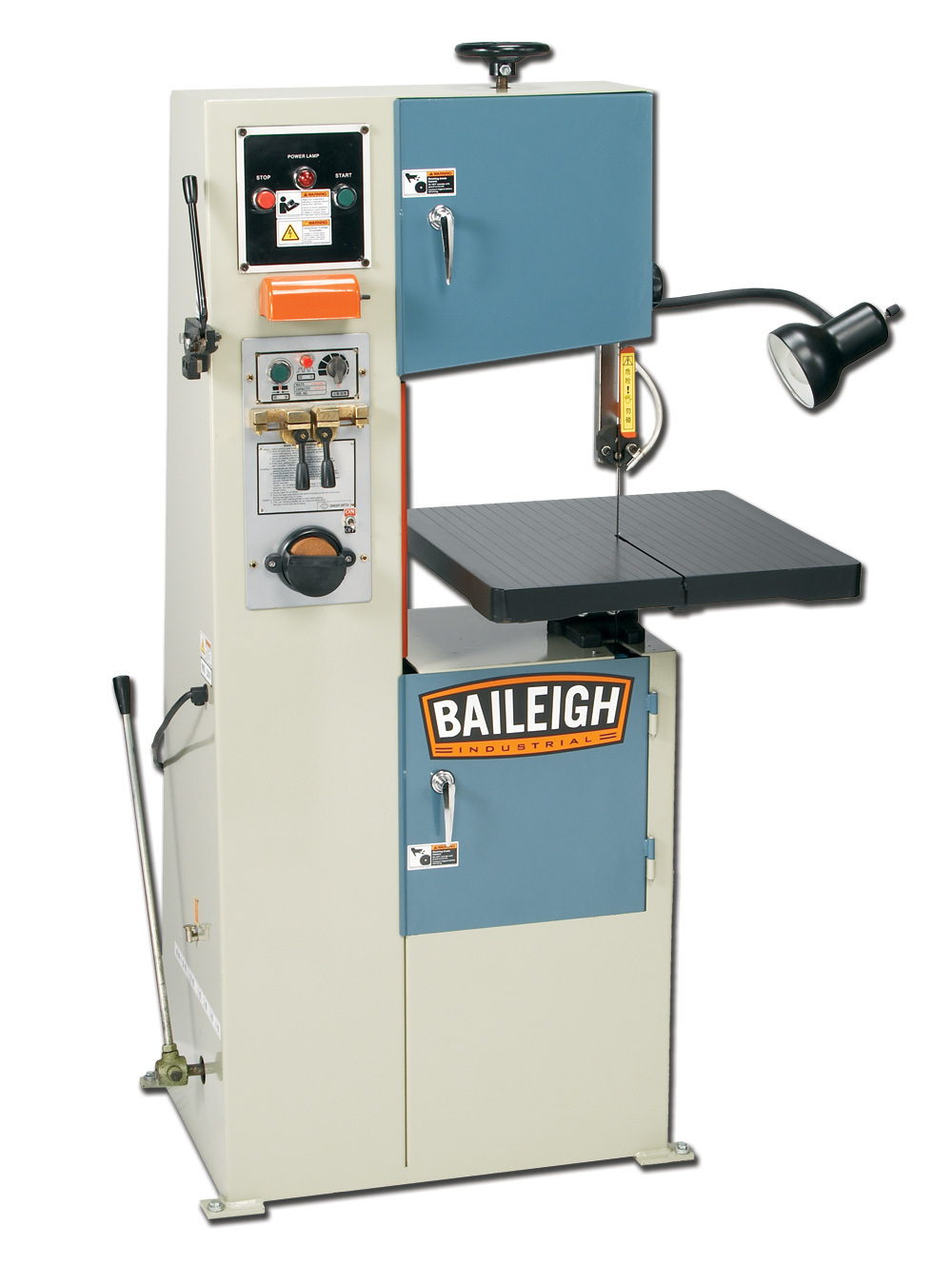

Baileigh Vertical Bandsaw BSV-12
Baileigh Vertical Bandsaw BSV-12
Highlights
The the BSV-12 from Baileigh Industrial is be the perfect addition to any shop.
The BSV-12 is small in footprint, but does not skip on features, and is built to the same high quality standards as the rest of Baileigh Industrial’s vertical bandsaw line.
The BSV-12 has a fully welded frame and industrial grade components.
The BSV-12 vertical bandsaw features a 11-3/8” throat depth and a 7-3/4” material opening.
The table (483mm - 483mm) also pivots 10° front to back and 15° left to right.
The BSV-12 has 4 operating speeds ranging from 80rpm to 319rpm and a heavy-duty 1/2hp (.4 kw) motor that operates on 220 volt, 50hz, single phase power.
When designing the BSV-12 Baileigh Industrial wanted to accommodate most of the popular blade widths ranging from 6 -3mm (1/4” to 1/2”), allowing even the most intricate cuts.
A blade welder is also included for when you need to get to a middle cut on a project.
Like most Baileigh Industrial products, the BSV-12 is typically in stock for quick shipments
Technical Details
| Item Number | BSV-12 |
|---|---|
| Country of Manufacture | Taiwan |
| Table Size | 501 mm x 501 mm |
| Butt-Welder Capacity (Blade Width) | 17164 |
| Welder Capacity | .51" |
| Slant of Table | 10° F x Rear |
| Motor | .5 hp |
| Maximum Thickness | 196 mm |
| Throat Depth | 289 mm |
| Blade Length | 2550 mm |
| Blade Speed | 81 – 319 rpm |
| Blade Thickness | .8 mm |
| Power | 220V, 50Hz, 1-Phase |
| Shipping Weight | 200 kgs. |
| Shipping Dimensions (Inches) | 914 x 686 x 1549 mm |
* specifications subject to change without notice.
