Baileigh Vertical Mill VM-836E. Perfect for milling, drilling, tapping, boring, and reaming

Name: Baileigh Vertical Mill VM-836E. Perfect for milling, drilling, tapping, boring, and reaming
SKU: VM 836E 50HZ delivery £262
Price: 4647.0 GBP
Availability: InStock

Store / Welding & Fabrication Plant, Consumables

£4,647.00

In stock

Product Details

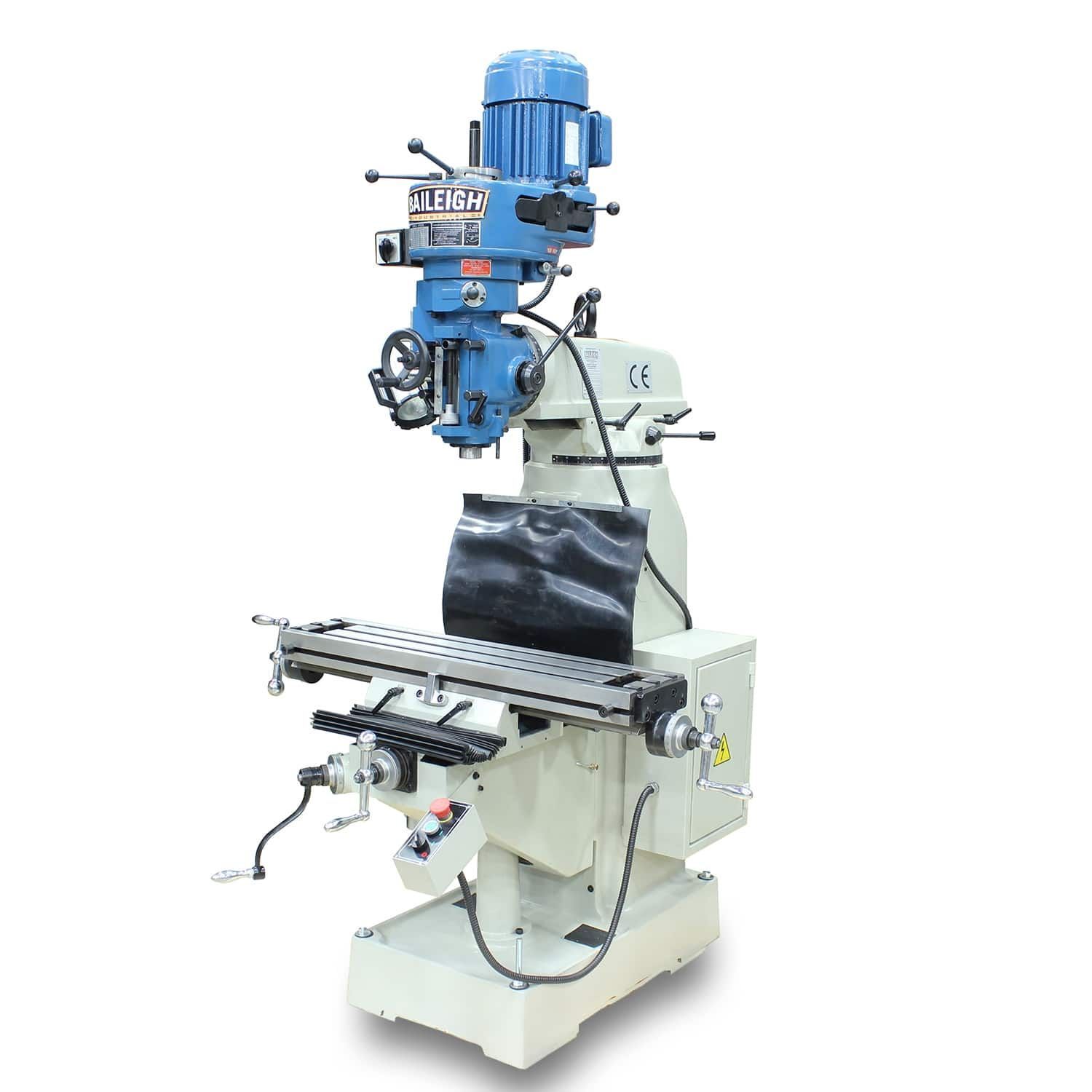

Baileigh Vertical Mill VM-836E

Perfect for milling, drilling, tapping, boring, and reaming

Availability. Ex Stock. 7 Days to Site typical on UK Mainland.

Highlights

Baileigh Vertical Mill VM-836E

The VM-836E vertical mill from Baileigh Industrial is the perfect mill for anyone just getting into machining. This small but powerful machine is based off of our popular VM-936E mill and offers many of the same features for a fraction of the cost. The VM-836E has an 8″x 36″ working table and operates on 240 volt power making it perfect for any environment. This Baileigh Industrial vertical mill uses a step pulley system that allows adjustment to the speed from 80 to 2720 rpm. Being able to tune the speed of the quill is important to prolong the life of the tooling and saving money. An R8 spindle is standard and having an R8 allows a wide variety of tooling that is readily available in just about any tooling store.

8″x 36″ work table

Compact size

R8 spindle Perfect for milling, drilling, tapping, boring, and reaming

Headstock can tilt 90 degree

Coolant system included.

8 speeds 240V, with a speed range of 80 -2720 rpm.

Technical Details

Model Number: VM-836E
Drilling Capacity: 1.75"
Milling Capacity: 3.14"
Spindle Taper: R8, 7/16"-20
Working Table Size: 36" x 7.875"
Working Table Travel (X/Y): 25.5" / 9.625"
Spindle Nose to Worktable: .875” ⁓ 15.625”
Spindle Center to Column: 5.25” ⁓ 15.75”
Spindle Travel: 5"
T-Slot Width: 3 @ .625"
Spindle Feed Per Rev: 0034"/.0018"/.0056"
Speeds: 8 speeds, 80 to 2720 RPM
Motor: 2 hp
Travel Manual Z Axis: 14.75"
Table Load Capacity 750 lbs.
Power: 240 Volt 50 hz
Shipping Weight: 1,750 lbs./ Weight 785 kg
Rotating Head: 90° (R&L)
Shipping Dimensions (Inches): 60" x 44" x 67"

* specifications subject to change without notice.

Site Offload

Clients responsibility.

Forklift required for offload.
