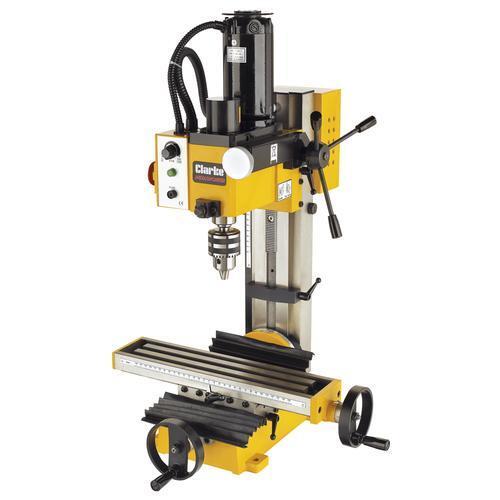

Clarke CMD300 Milling Drilling Machine
Clarke CMD300 Milling Drilling Machine
Highlights
This highly precise drilling & milling machine is ideal perhaps for a smaller or more compact workshop, or simply where space is an issue. Bench mountable, the CMD300 has a head that tilts 45° left & right (from vertical), is robustly constructed from steel. It also comes with all the necessary tools & accessories to successfully use and maintain it. Such accessories include a drill chuck & taper shank plus lubricating oil, fixing pin, hex keys, a 'C' spanner, 3 wrenches, drill chuck key, drill handles, table adjusting wheels, 'T'-Nuts and draw bar for the spindle lock. Please note for milling s separate "Mill Chuck Set" is required see (item code 060720866).
- able cross / longitudinal travel - 100 / 235mm
- Spindle speeds: 0 to 2500rpm
- Spindle speeds: 0-2500
- 470W, 230V motor
- Spindle taper: MT3
- Table effective size ( L x W): 92mm x 400mm
- Dimensions (D x W x H): 514 x 506 x 756 mm
- Mill chuck set not included (see item code 060720866)

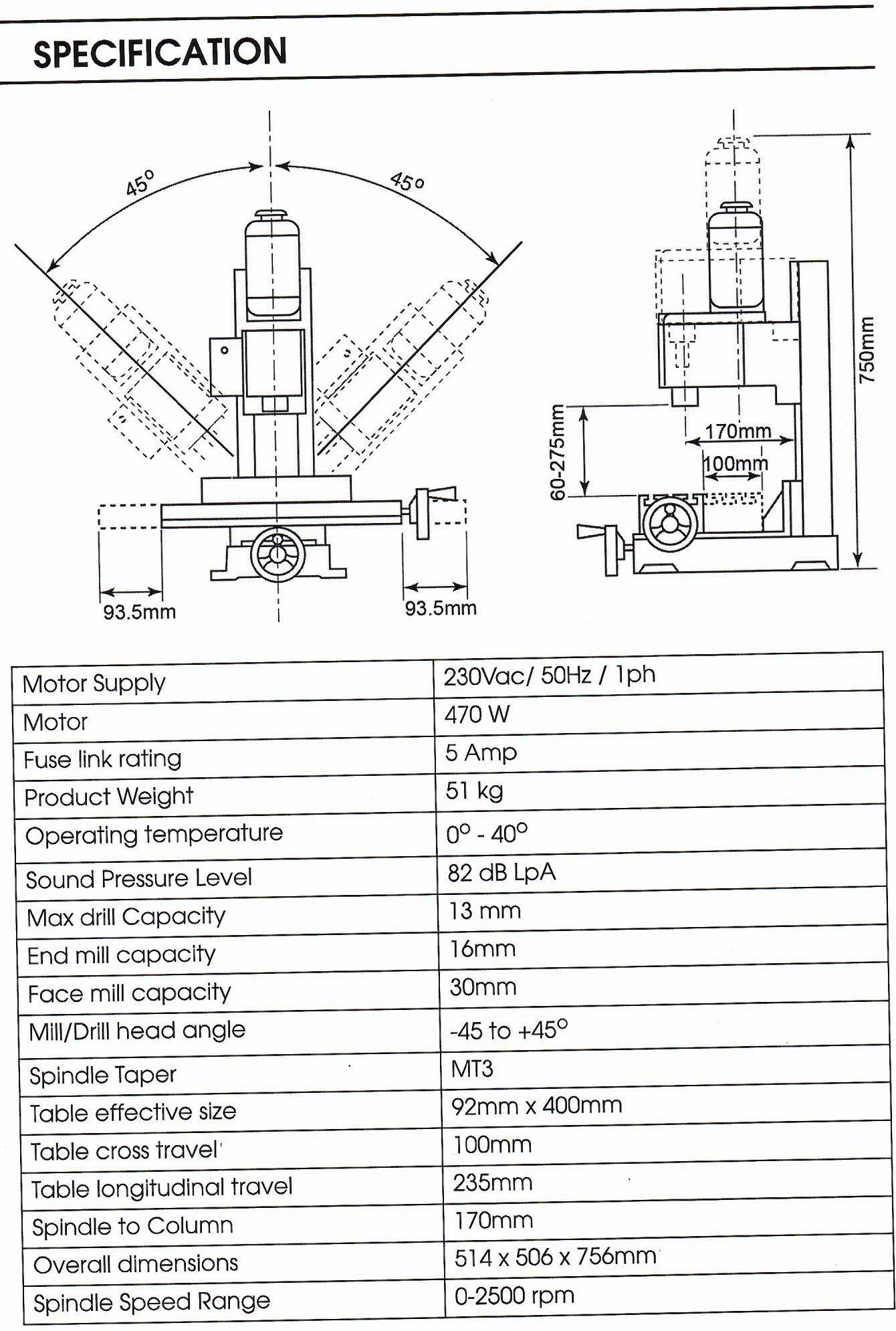

Technical Details
Please note that details and specifications contained herein, are correct at the time of publishing. We reserve the right to change specifications at any time without prior notice.
