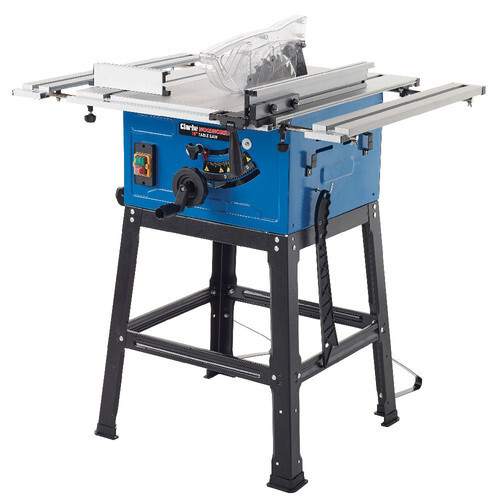

Clarke CTS17 10" (250mm) Extendable Table Saw With Stand (Optionally available with the Clarke CWVE2 50L Vacuum Dust Extractor (230V))
Clarke CTS17 10" (250mm) Extendable Table Saw With Stand
(Optionally available with the Clarke CWVE2 50L Vacuum Dust Extractor (230V))
Highlights
Ideal for bench top use, the Clarke CTS17 10” (250mm) extendable table saw is perfect for cross cuts, rip cuts, mitres and bevel cuts on hard and soft woods. It is suitable for use in a DIY or workshop environment. The saw can be used as a bench top saw, or for added versatility, it can be fitted onto the supplied stand. Completing this saw is an adjustable blade height and a dust extraction port for easy clean up.
The CTS17 includes 2x Sliding table extensions (643x85x20mm), 250mm saw blade, lockable parallel fence, mitre guide, stand stabilisers and push stick.
- Ideal for cross cuts, rip cuts, mitres and bevel cuts to hard and soft woods
- Includes two table extensions (643x85x20mm) allowing use with larger workpieces
- 0-45° blade tilting for bevel cutting
- Max cut depth of 45° / 90° (50mm/72mm)
- Adjustable blade height, mitre guide and parallel fence
- Dust extraction port
- No load speed: 4800rpm
Technical Details
Model CTS17
Voltage 230V - 50 Hz
Power input 2000 W
No-load speed 4800 rpm
Ingress protection (IP) rating IPX0
Table size 643 mm x 546 mm (ex extension)
Dust Extractor connector 34.9 (internal) / 39.5 mm (external)
Blade size: Outside Diameter 250 mm Bore Diameter 30 mm Thickness 2.8 mm
Number of teeth 24 TCT
Maximum cut depth @ 90 Degrees 72 mm
Maximum cut depth @ 45 Degrees 50 mm
Machine weight: 22 kg
Machine size (L x W x H) 695 x 917 x 1030mm (max)
Sound pressure level LpA 93.7 dB (A)
Guaranteed sound power level LWA: 106.7 dB (A)
Optional

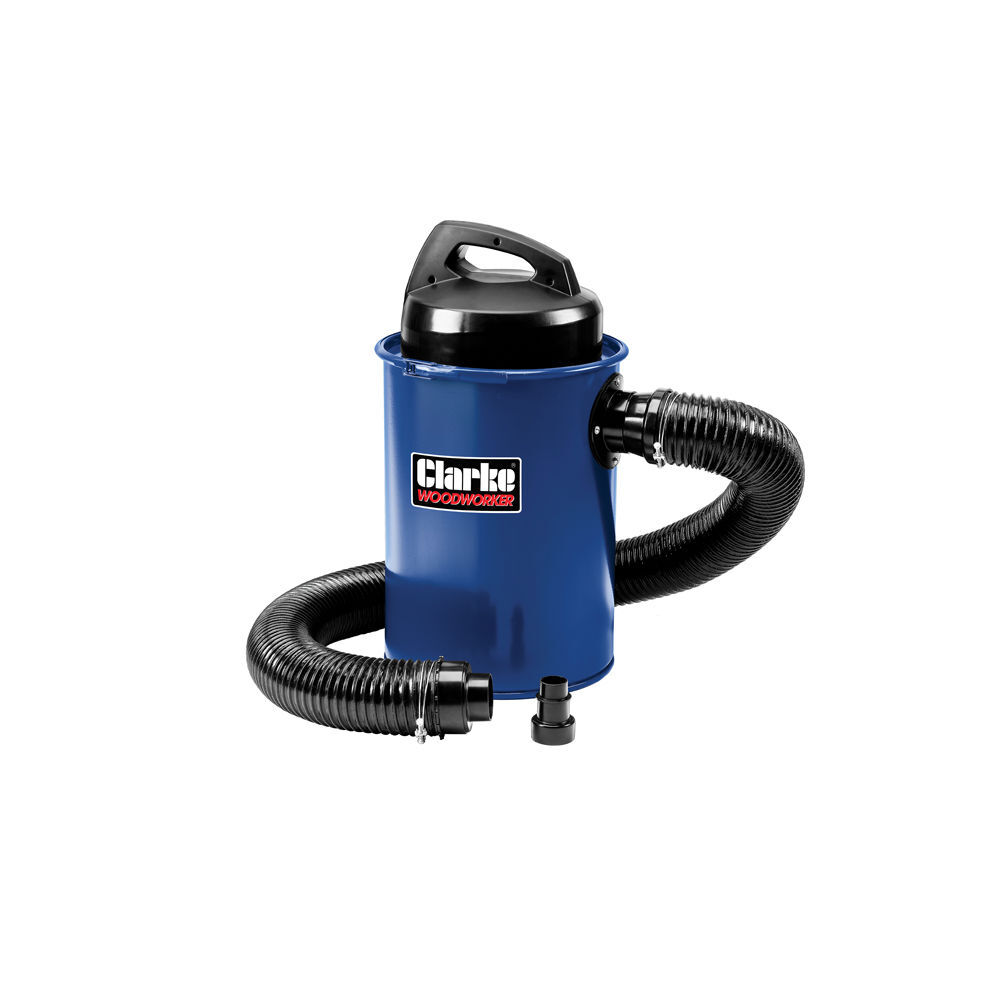

Clarke CWVE2 50L Vacuum Dust Extractor (230V)
Highlights
This portable workshop vacuum extractor is ideal for keeping work areas clean and free from dust particles, shavings etc. The quick-release lid has a built in handle that allows for easy emptying and transport. Includes dust filter, paper element bag, 2m suction hose and 2x stepped adaptors.
- Tank Capacity: 50 litres
- Inlet Hose: Ø100mm x 2m length
- Air Flow: 183m³/hr (3.05m³/min) flow rate
- Supply: 230V ~ 50Hz
- Input power: 1100W
- Weight: 9.5kg
- Dimensions: 360x360x685mm
Technical Details
| Volts | 230 V |
| Flow Rate | 183 m3/h |
| Tank Capacity | 50 Litres |
| Weight | 9.5 kg |
Warranty
Clarke is a British based company whose products comply with British and European Standards and European safety and CE marking directives. Their products are supplied with a 1 year parts and labour warranty from date of purchase.
