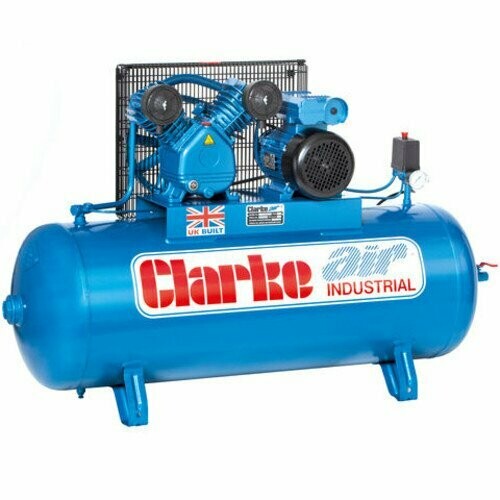

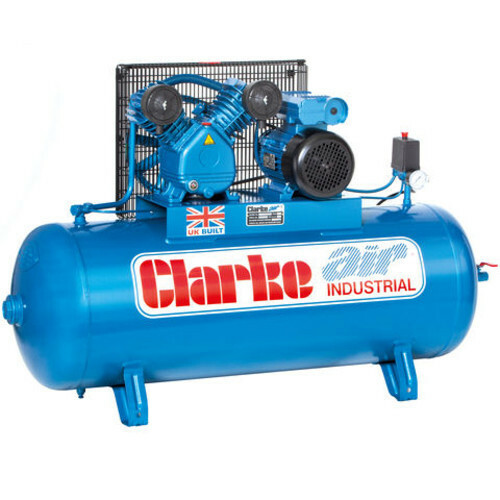

Clarke XEV16/150 - Industrial Air Compressor (400V 3ph)
Clarke XEV16/150 - Industrial Air Compressor (400V 3ph)
Highlights
The XEV16 range of air compressors are British built for performance and reliability.
This quality belt driven air compressor is designed with industrial & commercial users in mind. With the air capacity & power, to drive many of the most commonly used air compressor tools, the XEV16 / 150 air compressor will satisfy the air requirements of garages, small factories, workshops and farms.
Unlike smaller air compressors this unit benefits from a V Twin pump, aerodynamic bladed flywheel, positive splash-feed piston lubrication and twin cast iron cylinders; all lead to efficient & cool running, smooth operation which extends the life of the air compressor.
It is recommended that larger air compressors such as this are fitted with heavy-duty anti vibration floor mountings Part No 8950400 This compressor must be run from a 30 Amp supply minimum.
Technical Details
- 14cfm displacement - cast iron, 'V' twin cylinder air compressor pump
- 150 litre air receiver (CE certified)
- 3hp motor, 400V continuously rated with overload protection
- 10.3 bar (150psi) maximum working pressure controlled by a fully automatic pressure switch
- Specification also includes safety valve, pressure gauge, air outlet valve & drain tap
- Application - these air compressors are perfect for professional automotive/industrial use
- Dimensions (LxWxH) 1330 x 410 x 870 mm -
- Weight 89kg,
- All length dimensions include end outlet tap
| Air Tank Volume | 150 Litres |
| Air Displacement | 14 cfm |
| Max Working Pressure | 150/10 psi/bar |
| Oil/Oil Free | Oil |
| Motor (HP) | 3.0 |
| Input Voltage | 400 V |
| Watts | 2250 W |
| Volts | 400 V |
Warranty
Clarke is a British based company whose products comply with British and European Standards and European safety and CE marking directives. Their products are supplied with a 1 year parts and labour warranty from date of purchase.
