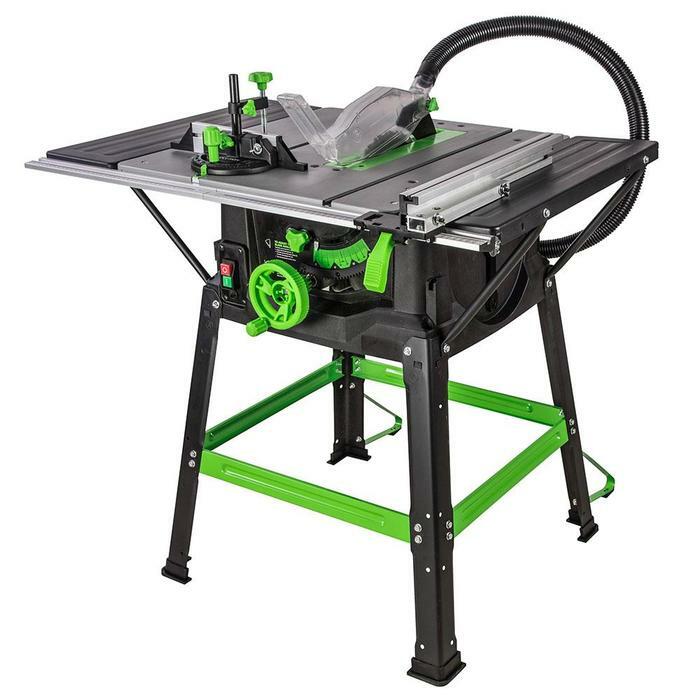

Evolution FURY5-S - 255mm Table Saw With TCT Multi-Material Cutting Blade (230v)
Evolution FURY5-S - 255mm Table Saw With TCT Multi-Material Cutting Blade (230v)
Highlights
The perfect addition to the home workshop. Compact and portable design with a smooth worktop surface allows materials to glide through the blade with ease and accuracy.
- Multi-Material cutting technology. One saw, one blade, cuts all.*
- Accurate rip cutting, assisted by an adjustable parallel fence with measuring rail guide.
- Reliable smooth square cutting every time in a variety of materials.
- Powerful 1500W hi-torque motor with optimized gearbox & blade system.
- 0° - 45° bevel tilt and 60Ëš - 60Ëš mitre fence covers all common, compound cutting angles.
- 85mm depth of cut at 90Ëš and 65mm depth of cut at 45Ëš.
- Integrated Dust port compatible for vacuum dust extraction.
- Compact & lightweight design with a 938mm x 642mm table surface.
- Easy access On/Off safety switch.
- Push Stick included for safer operation when handling smaller offcuts.
- 3 Year limited warranty.
- Japanese Tungsten-Carbide-Tipped (TCT) 255mm blade included.
Compact table saw packed with features.
The FURY5-S 255mm table saw features a cutting capacity up to 85mm, meaning you can cut more without having to flip your work.
Adjustable blade height with 45Ëš bevel to the left and 60Ëš - 60Ëš mitre makes cutting at most common angles easy.
Cleaner & Safer
Dust ports above and below the blade allow dust to be extracted via a vacuum cleaner or shop vac (sold separately) attached to the rear extraction port.
Multi-material Cutting Technology
With it’s 1500W hi-torque, optimised gearbox and blade system, the FURY5-S can cut through a variety of materials such as wood, mild steel †
, aluminium, plastic, composite materials and more.
Easy Angle Cutting
The material pusher incorporates an anti-bounce device and 60Ëš-60Ëš mitre gauge to cut angles in most materials safely and easily. The material pusher can be used either side of the blade for added versatility
Technical Details
| Motor (240V 50Hz): | S1: 1300W, S6 40%: 1500W |
| Speed No Load: | 3250rpm |
| Max. Bevel (Left): | 45° |
| Riving Knife Thickness | 1.8mm |
| Blade Dia.: | 255mm |
| No. of Teeth: | 24 |
| Bore: | 25.4mm |
| Kerf: | 2mm |
| Max. Depth of Cut (0°): | 85mm |
| Max. Depth of Cut (45°): | 65mm |
| Mild Steel Plate (Max. Thickness): |
3mm |
| Mild Steel Box Section (Max. Wall Thickness): |
3mm |
| Rip Capacity - Right of the blade | 410mm |
| Product Dimensions: | 930mm x 642mm x 938mm |
| Table Dimensions | 642mm x 938mm |
| Packaging Dimensions: | 710mm x 320mm x 560mm |
| Product Weight: | 20.25 kg |
| Packaged Weight: | 23 kg |
