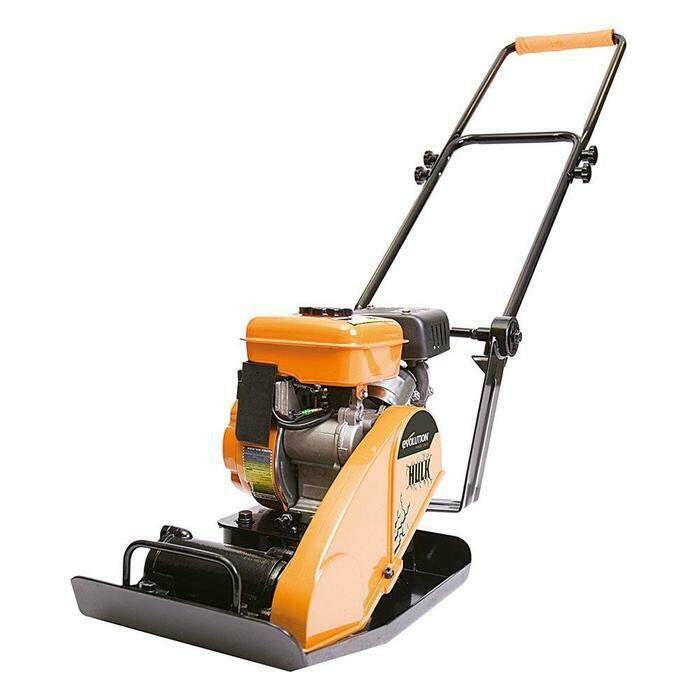

Evolution HULK - Petrol Compactor
Evolution HULK - Petrol Compactor
Highlights
- Ideal For: Crusher Run, Sand, Soil, Small Aggregates, Patio & Block Paving, Driveways & Tarmac Repair with Excellent Surface Preperation.
- The HULK PETROL is the ideal wacker plate for the construction and landscaping industries, offering a very realistic alternative to hiring, due to its incredible value!
- Ideal for surface preparation when evenly compacted ground is required and suitable for sub-base preparation, sand, gravel, crusher run, soil, small aggregates, patios, block paving, driveways, pathways and tarmac repairs
- The HULK PETROL also has an easy-fold hinged handle, for improved storage and transportation.
- The thick, durable base plate delivers high centrifugal force for powerful performance with 8m/min travel speed and can be used on block paving with the optional paving pad.
- The HULK PETROL is also low frequency (at just 90Hz) and high amplitude for better soil compaction
- Features include an easy pull-start 80cc petrol engine, 1.5L fuel tank and forced air cooling system.
- 2 year warranty.
Technical Details
| Engine Type | Single cylinder 4 stroke OHV |
| Engine Power (HP) | 2.4 @ 3600 rpm |
| Spark Plug Replacement | LD E6TC (available from Evolution) NGK BP6HS CHAMPION L87YCC AC DELCO 42FS |
| Spark Plug Gap | 0.07 – 0.08 mm |
| Air Filter Replacement | Evolution H1S58 |
| Valve Clearances (cold) | Inlet 0.15 mm 0.006 inches Exhaust 0.20 mm 0.008 inches |
| Compaction Force (kN) | 10 |
| Recommended Maximum Operator Usage Time | 20 Minutes |
| Oil Type | SAE 10W-30/40 |
| Oil Capacity | 0.25 L |
| Fuel Type | Standard Unleaded Petrol |
| Fuel Capacity | 1.2 L |
| Foot print | 400mm x 320mm |
| Handle Height (during operations extension handle fitted) |
1020mm |
| Machine Reach (during operations extension handle fitted) |
1290mm |
| Product Weight: | 38kg |
| Packaged Weight: | 40kg |
| Sound Pressure Level L PA : | 101dB(A) K=3 dB(A) |
| Sound Power Level L WA : | 105dB(A) K=3 dB(A) |
| Vibration (m/sec2) | 15.12 K = 1.5 |
