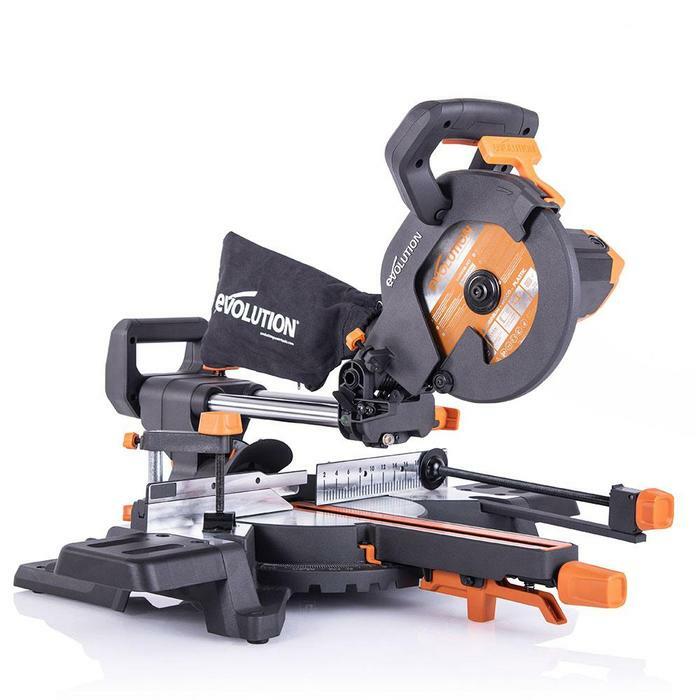

Evolution R210SMS-300+ Sliding Mitre Saw With TCT Multi-Material Cutting Blade
Evolution R210SMS-300+ Sliding Mitre Saw With TCT Multi-Material Cutting Blade
Highlights
The perfect hybrid between a 210mm and 255mm sliding mitre saw. The R210SMS-300+ maintains a more compact and robust design of a 210mm model but with the 300mm cross-cutting capacity of it's bigger 255mm brother. Equipped with 'PLUS' model features, this is the ultimate cutting solution for any trade.
- Multi-Material cutting technology. One saw, one blade, cuts all. *
- Accurate cutting with laser guidance, smooth sliding functionality, adjustable depth of cut and 9 positive mitre stops.
- Reliable smooth square cutting every time in a variety of materials.
- Powerful 1500W hi-torque motor with optimised gearbox & blade system.
- 0° - 45° bevel tilt and 50° - 50° mitre covers all common cutting angles.
- The R210SMS-300+ has an impressive 300mm slide capacity, allowing a greater cut capacity for wider materials, compared to a 230mm slide on the R210SMS+ model.
- Complete the cutting package with the Evolution's Mitre Saw Stand and 210mm Diamond blade. (Sold separately)
- 3 Year limited warranty.
PLUS+ Features
- Premium Japanese Tungsten-Carbide-Tipped (TCT) 210mm blade included.
- Dual Quick-Release clamps included for additional accuracy & faster adjustments.
- Cleaner & safer working environment with dust collection bag & dust port adaptor included for use with vacuum extraction.
- Integrated carry handles - easy to carry & transport around the workplace.
- 3m power cable reduces the need for extension leads.
Technical Details
| Motor (110V 50Hz): | 1500W |
| Motor (240V 50Hz): | 1500W |
| Speed No Load: | 3750 min -1 |
| Max. Mitre: | 50° - 50° |
| Max. Bevel (Left): | 45° |
| Blade Guard: | Cast Aluminium |
| Cable Length: | 3m |
| Dust Port Diameter: | 36mm |
| Blade Dia.: | 210mm |
| No. of Teeth: | 24 |
| Bore: | 25.4mm |
| Kerf: | 1.7mm |
| Max. Cross Cut (0° x 0°): | 300mm x 65mm |
| Max. Bevel Cut (0° x 45°): | 300mm x 38mm |
| Max. Mitre Cut (45° x 0°): | 210mm x 65mm |
| Max. Compound Cut (45° x 45°): | 210mm x 38mm |
| Mild Steel Plate (Max. Thickness): |
6mm |
| Mild Steel Box Section (Max. Wall Thickness): |
3mm |
| Product Dimensions: | 320mm x 710mm x 710mm (with saw head down) |
| Packaging Dimensions: | 575mm x 325mm x 535mm |
| Product Weight: | 13.2 kg |
| Packaged Weight: | 15 kg |
| Sound Pressure Level L PA : | 110V: 95.7 dB(A) / 220-240V: 96.5dB(A) |
| Sound Power Level L WA : | 110V: 108.7 dB(A) / 220-240V: 109.5dB(A) |
| Uncertainty K: | K pA & K WA : K=3 dB(A) |
| Laser Class: | Class 2 |
| Laser Source: | Laser Diode |
| Laser Output Power (Max): | <1mW |
| Wave Length (Nm): | 650 |
Optional
Evolution Mitre Saw Stand With Universal Fittings

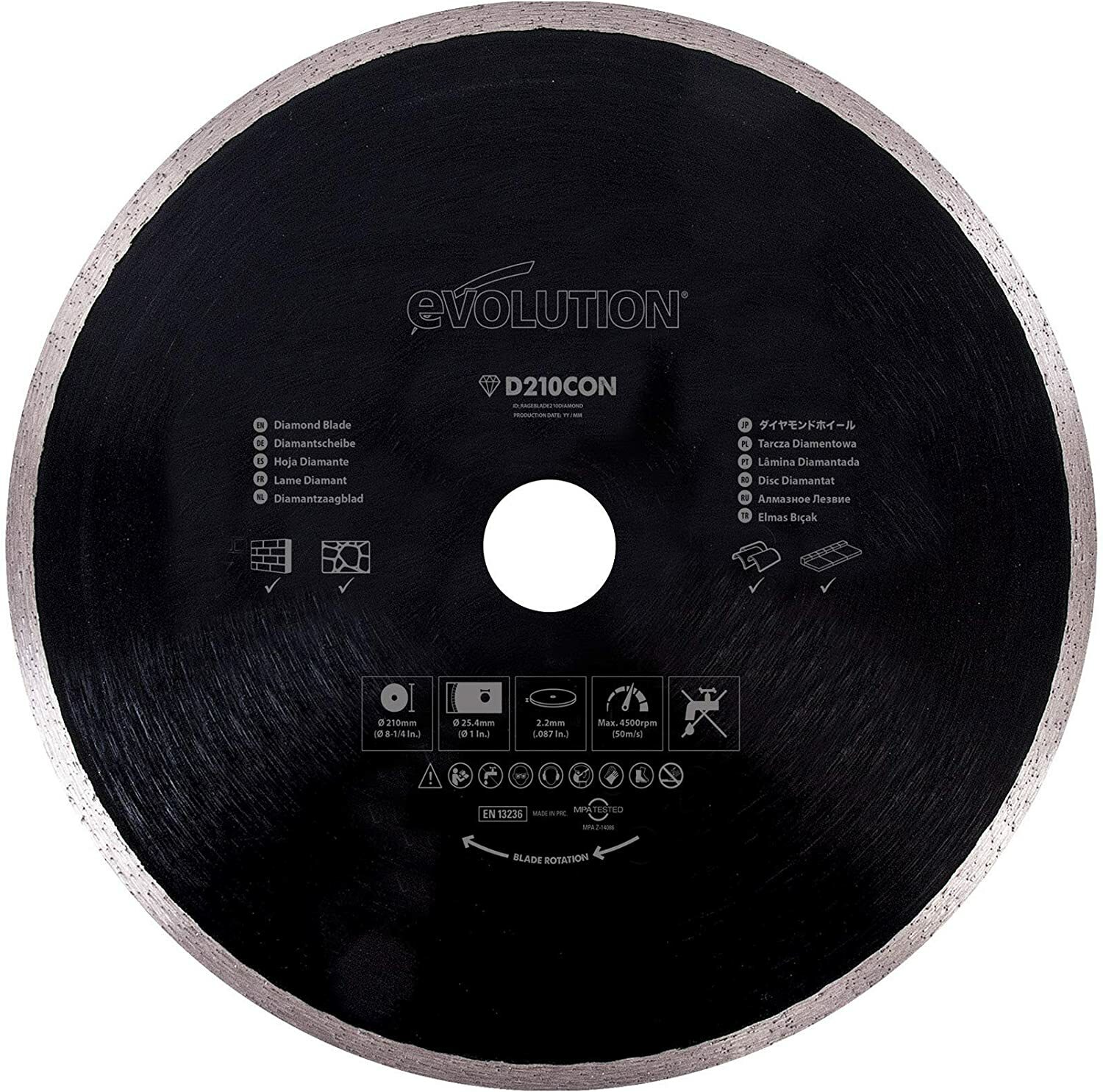

Evolution 210 mm Diamond Blade
Evolution Warranty
Summary
• All Evolution single circular blade saws and magnetic drills are covered with 3 year warranty. All other Evolution power tools are covered with 2 year warranty.
• Refurbished power tools by Evolution come with a 90 day warranty.
• This warranty does not cover blades, accessories, spare parts and discontinued models.
• Please keep your proof of purchase / delivery.
• If you purchase your Evoluton product from Traxx you must register your product warranty
with Evolution • The warranty becomes effective at the date of purchase (or the date of delivery if this is later).
• You must provide proof of delivery / purchase before any work can be carried out on your machine. Without this proof, any work carried out will be chargeable. Please keep your receipt or delivery note.
• All work will be carried out by Evolution.
• Any parts which are replaced will become the property of Evolution.
• The repair or replacement of your machine under warranty will not extend the period of warranty.
• Evolution Power Tools reserves the right to optionally repair or replace it with the same or equivalent item.
• This warranty statement provides benefits which are additional to and do not affect your statutory rights as a consumer.
