Evolution RAGE5-S - 255mm Table Saw With TCT Multi-Material Cutting Blade
Evolution RAGE5-S - 255mm Table Saw With TCT Multi-Material Cutting Blade
Highlights
The most versatile, multi-material cutting quality table saw on the market.
The RAGE5-S will easily cut steel, aluminium, wood, even wood with embedded nails and plastic, using just one blade.
Excellent at ripping thin stock, making accurate crosscuts and handling sheet materials.
- Multi-Material cutting technology. One saw, one blade, cuts all.*
- Accurate rip cutting, assisted by an adjustable, full-length, parallel fence with measuring rail guide.
- Reliable smooth square cutting every time in a variety of materials.
- Powerful hi-torque motor with an optimized gearbox & blade system.
- 0- 45-degree bevel tilt and 60 - 60-degree mitre fence covers all common, compound cutting angles.

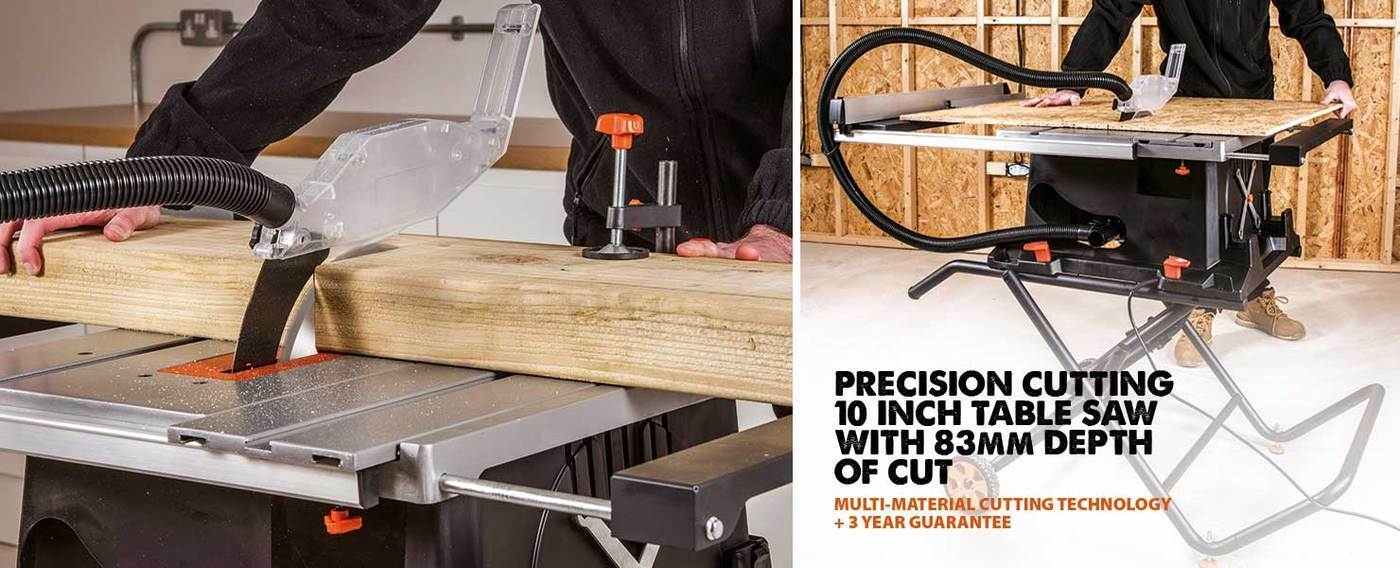

- 83mm depth of cut at 90 degrees and 58mm depth of cut at 45 degrees.
- Integrated dust port above and below the blade captures dust effectively when fitted to an extraction unit/vacuum (sold separately).

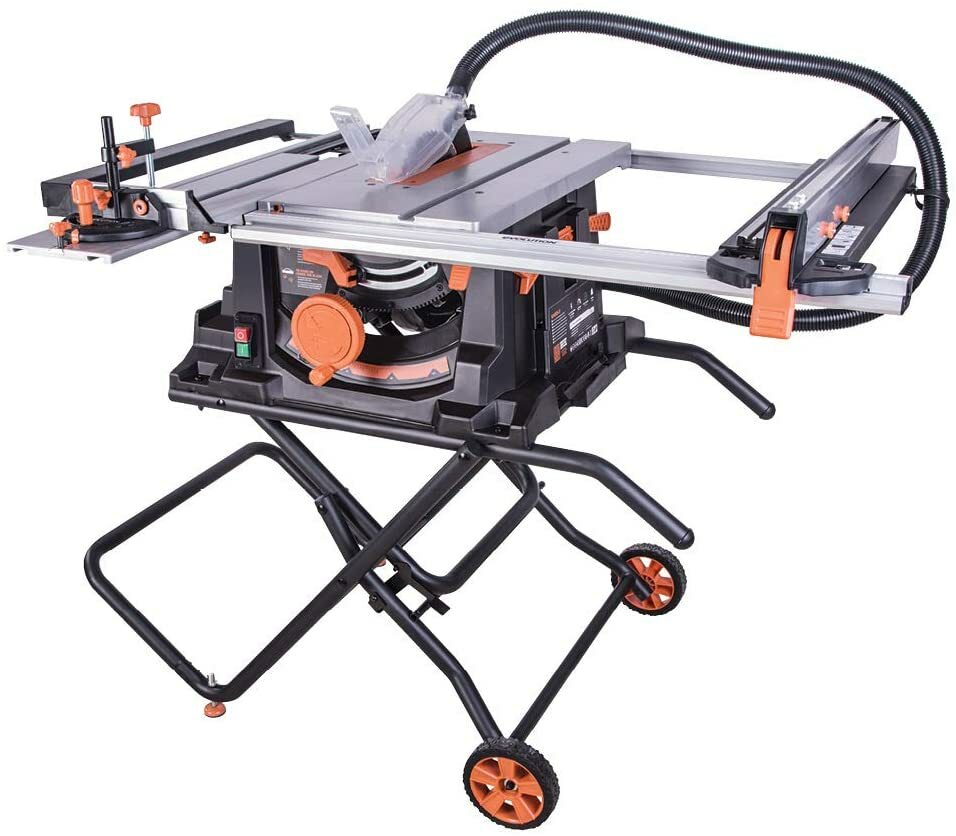

- Collapsible frame with wheels for easy storage and portability.
- Left and right table extensions support wide work-pieces with a table surface area of 1200mm x 640mm when fully extended.
- 1.5m durable cable with the built-in storage cable holder.
- Push Stick included for safer operation when handling smaller offcuts.
- 3 Year limited warranty.
- Japanese Tungsten-Carbide-Tipped (TCT) 255mm blade included.
Technical Details
| Motor (240V 50Hz): | 1500W |
| Motor (110V 50Hz): | 1600W |
| Speed No Load: | 2500rpm |
| Max. Bevel (Left): | 45° |
| Blade Dia.: | 255mm |
| No. of Teeth: | 24 |
| Bore: | 25.4mm |
| Kerf: | 2mm |
| Max. Depth of Cut (0°): | 83mm |
| Max. Depth of Cut (45°): | 58mm |
| Mild Steel Plate (Max. Thickness): |
6mm |
| Rip Capacity - Right of the blade | 605mm |
| Rip Capacity - Left of the blade | 305mm |
| Riving Knife Thickness | 1.8mm |
| Product Dimensions: | (With Leg Assembly) 1050mm x 750mm x 940mm |
| Product Dimensions: | (Without Leg Assembly) 880 x 730 x 330mm |
| Max. Table Dimensions | 1200mm x 640mm |
| Min. Table Dimensions | 745mm x 640mm |
| Packaging Dimensions: | 910mm x 370mm x 750mm |
| Product Weight: | 28.5 kg |
| Packaged Weight: | 33.5 kg |
| Sound Pressure Level L PA : | 93,2dB(A) K:3dB(A) |
| Sound Power Level L WA : | 106,2dB(A) K=3 dB(A) |
110 v or 230v versions of this machine available
