Holzmann ED1000SMART 400V Metal Lathe

Name: Holzmann ED1000SMART 400V Metal Lathe
SKU: ED1000SMART
Price: 11799.0 GBP
Availability: InStock

Store / Precision Machine Tools & Equipment

£11,799.00

In stock

Product Details

Holzmann ED1000SMART 400V Metal Lathe

Highlights

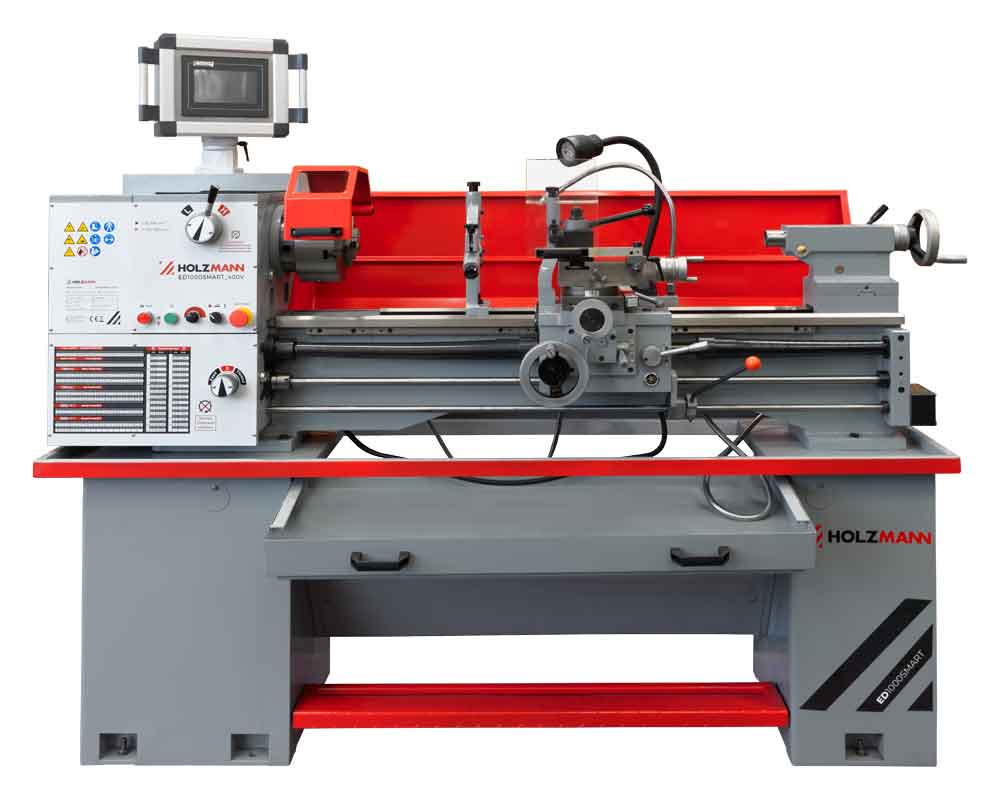

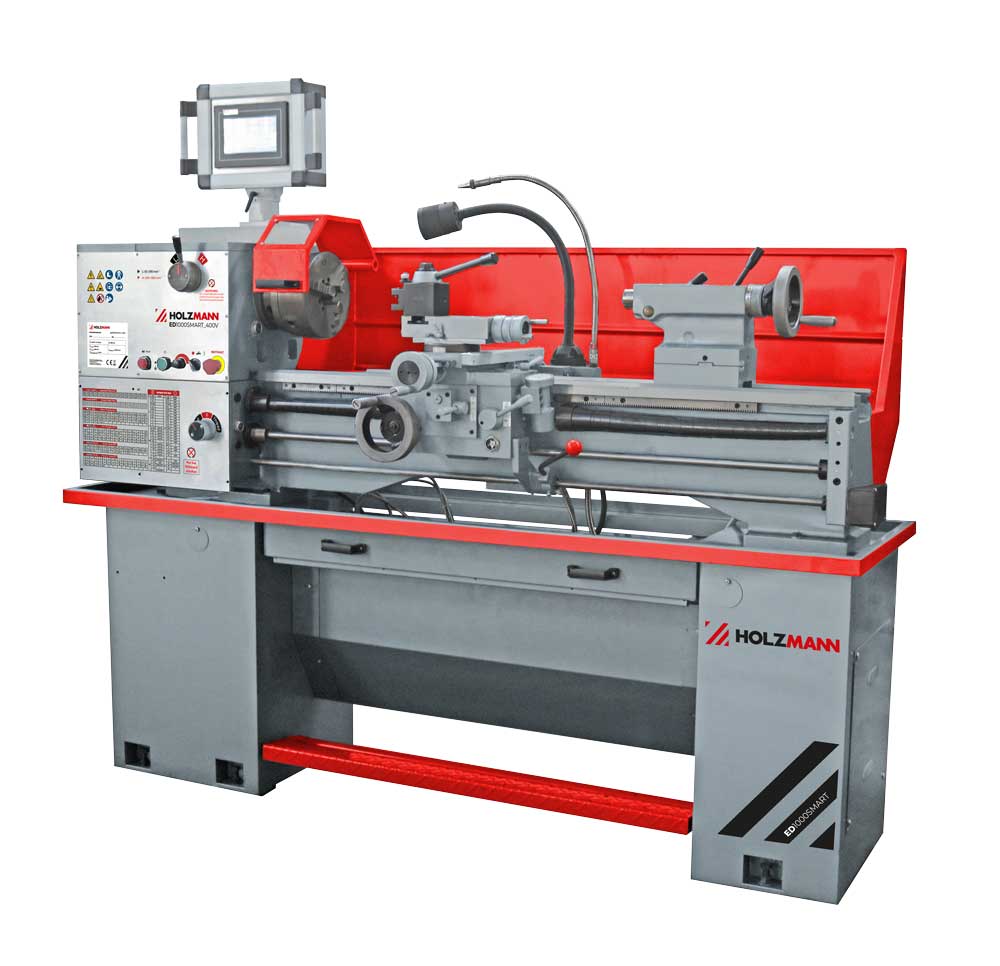

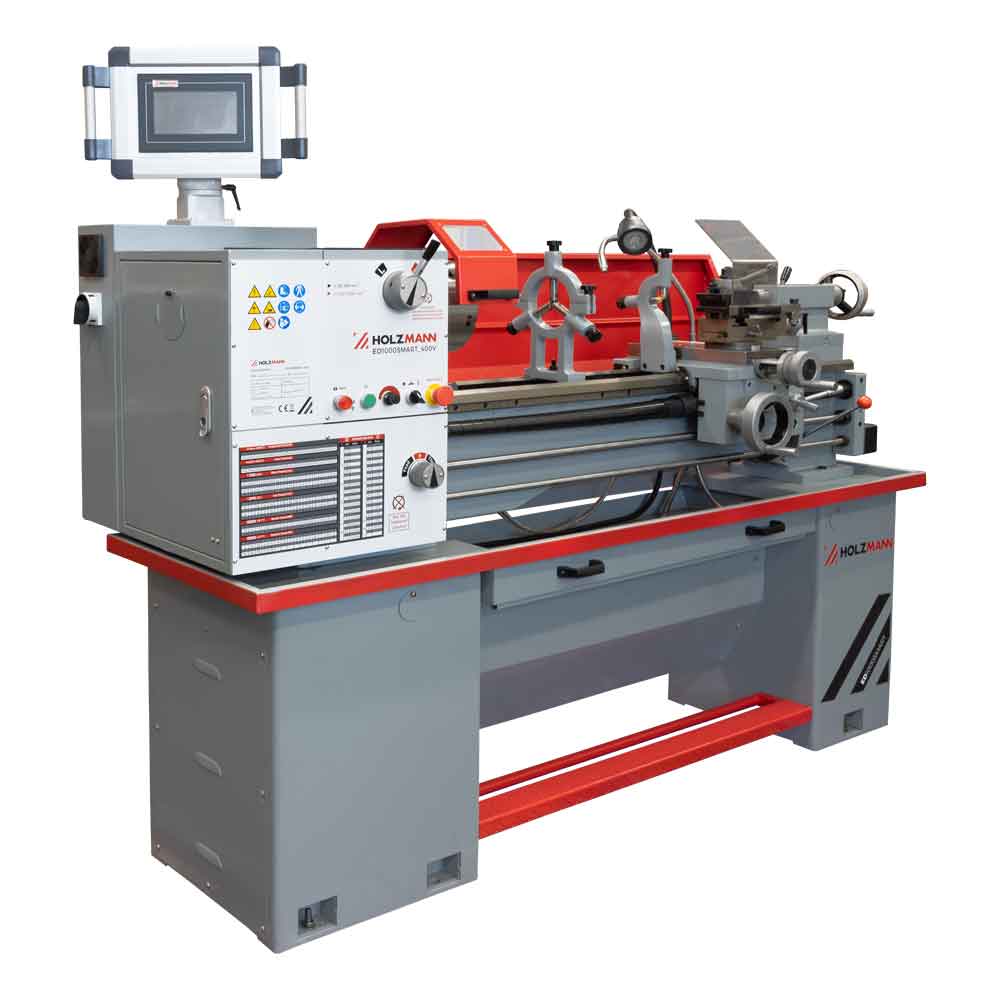

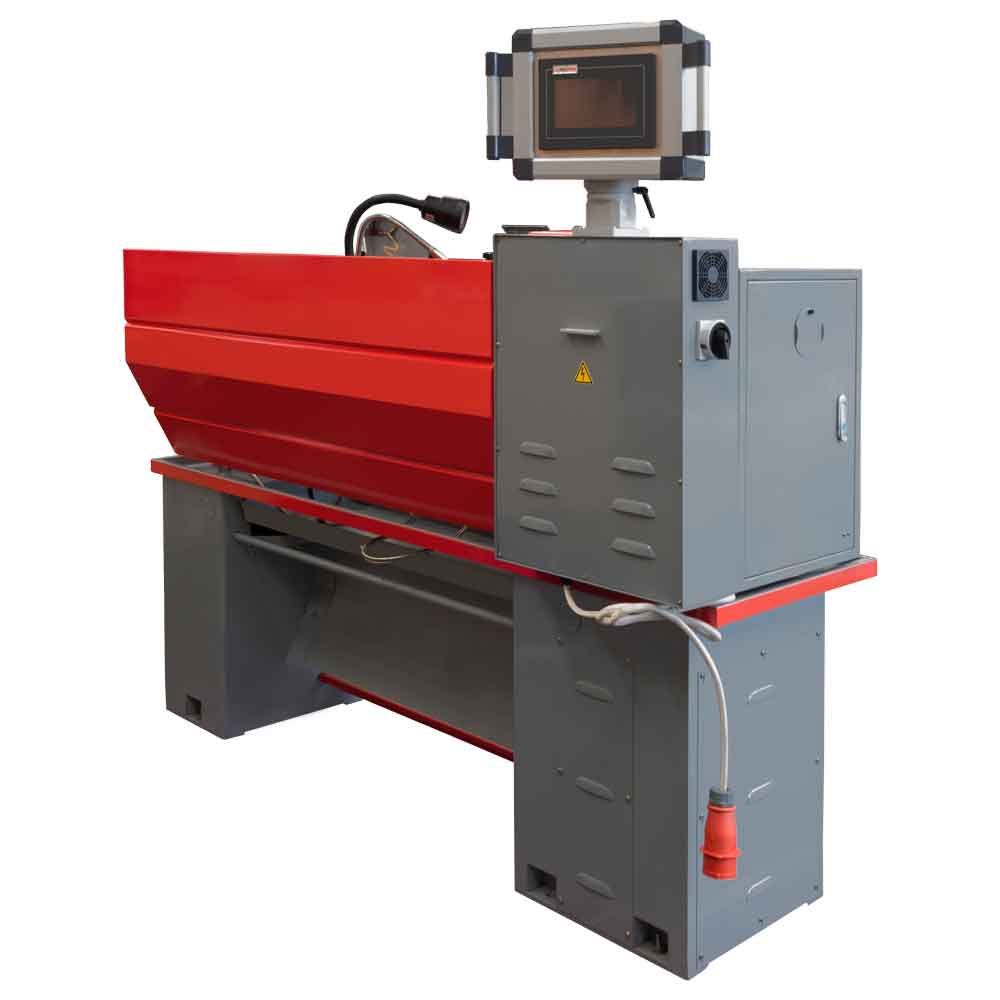

The HOLZMANN ED1000SMART_400V metal lathe with control panel, automatic feed adjustment for X and Z axis and coolant supply.

Workpieces with a diameter of max. 356 mm (/500mm) can be machined with it (above machine bed / without bridge)

spindle drive motor with 1.5 kW as well as servo motor for feed with also 1.5 kW
multifunctional, particularly value-retaining leading and traction spindle lathe

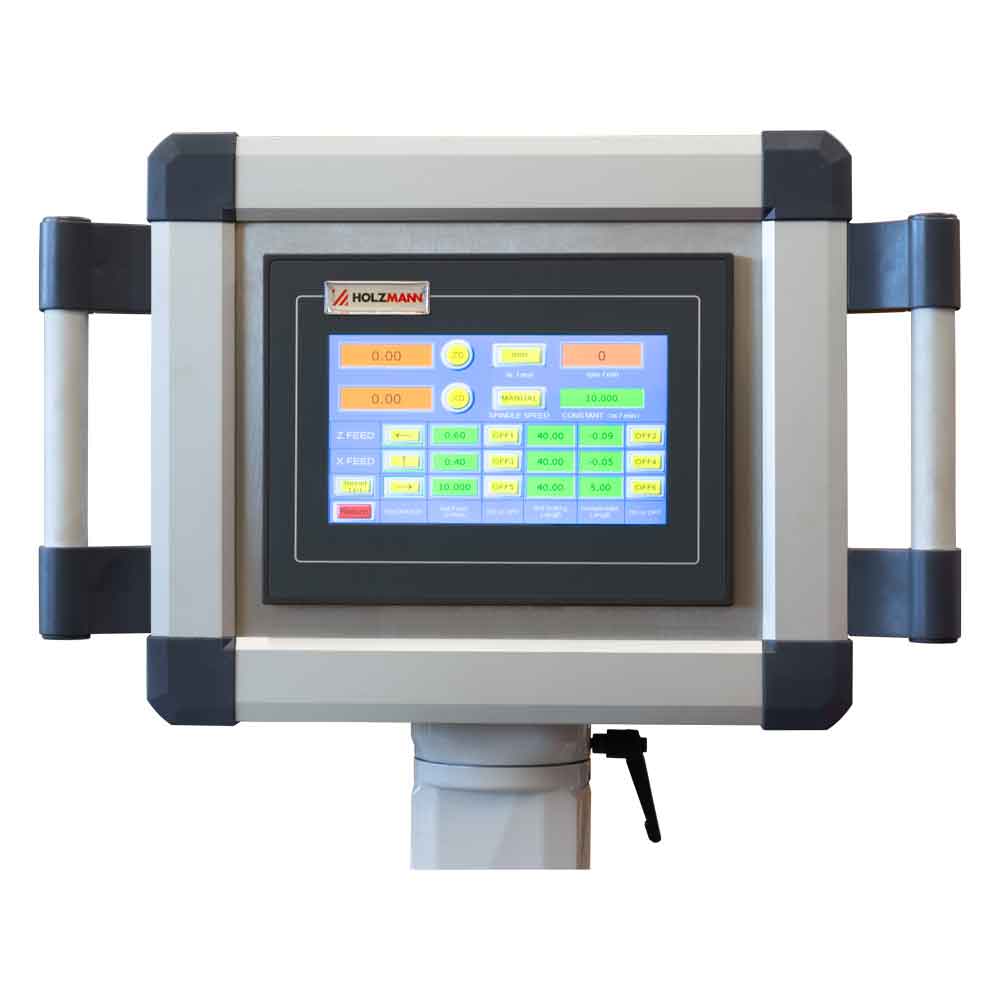

easy operation via touch display
Camlock D5 spindle mount
coolant pump included (40 W)
mechanical spindle brake (foot brake)
including working light (3 W)
removable bed bridge

Included in delivery: 3-jaw chuck Ø 200mm incl. drilling and turning jaws, 4-jaw chuck Ø 200mm, face plate, 2x fixed centre punch, reducing sleeve MK 6/4, fixed steady rest, travelling steady rest, chip back, coolant device, cast iron base, threaded clock,1 operating tool

Technical Details

motor data

voltage 400 V / 3 / 50 Hz

measurements

total dimensions in mm 1950 x 620 x 1690

bed width in mm 186

bed height in mm 305

turning machines

distance between centers in mm 1000

center height in mm 178

max. swing over bed in mm Ø 356

max. swing over cross slide in mm Ø 226

max. swing in gap in mm Ø 500

lathe spindle speed in min-1 L: 85-390; H: 390-1800

spindle bore in mm 51

spindle taper MK6 / MT6

tailstock taper MK4 / MT4

longitudinal feed 0,02 - 0,75 mm/U (30)

cross feed 0,02 - 0,75 mm/U (30)

carriage travel in mm 780

cross slide travel in mm 178

compound slide travel in mm 89

range of metric threads in mm/r 0,08 - 24 (65)

range of inch threads 1 - 112 T.P.I (75)

max. tool holder cross-section 20 x 20 mm

tailstock sleeve travel 100

volume level and vibration

sound pressure level in dB(A) 84

weight

gross weight in kg 720

net weight in kg 680

packaging

packaging width in mm 820

packaging length in mm 2.070

packaging height in mm 1.955

general data

EAN code 9120058379581

The roots of Holzmann and Zipper reach back as far as 1886 to the foundation of a smithery in Haslach Austria. Today the group is one of the global players in the field of workshop machinery and equipment.
