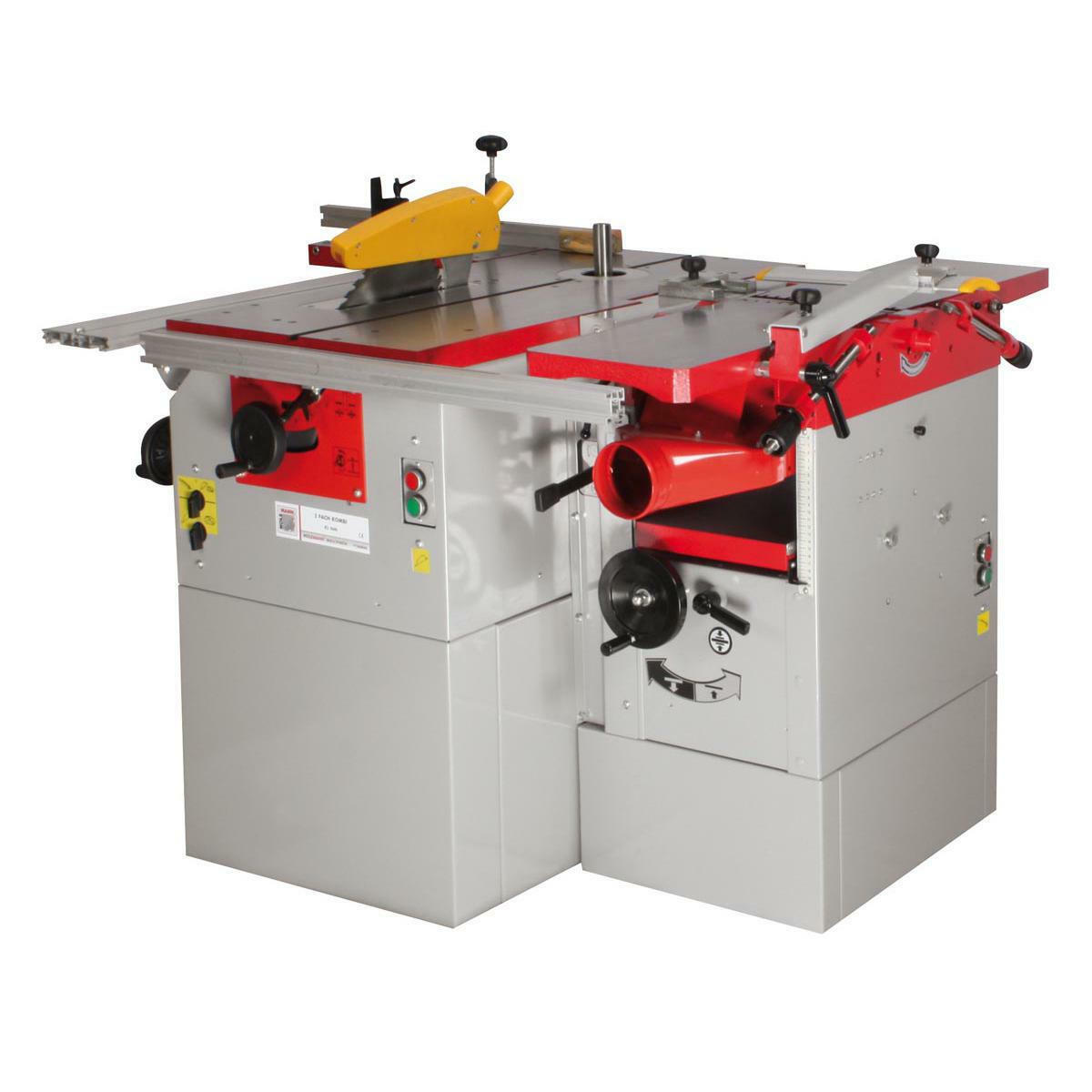

Holzmann K5260L Combined 5-Operation Machine

Name: K5260L Combined 5-Operation Machine
SKU: 9120039902890
Price: 3665.0 GBP
Availability: InStock

Store / Woodworking Machinery , Fixings & Power Tools

£3,665.00

Model variants

K5260L 230V Combined 5-Operation Machine 230 v

K5260L 230V Combined 5-Operation Machine 230 v + K5260LLL Mortising Unit ( +£250.00 )

K5260L 230V Combined 5-Operation Machine 400 V

K5260L 230V Combined 5-Operation Machine 400 V + K5260LLL Mortising Unit ( +£250.00 )

In stock

Product Details

Holzmann K5260L Combined 5-Operation Machine

Highlights

compact universal combination machine with small foot print and optimal price/performance ratio

best choice for woodworking enthusiasts with constrained

workshop capacity
saw-blade can be tilted with handwheel from 90 - 45°
large and precision-ground cast iron table with mitre gauge (+-45°) guided in T-slot
fast and convenient transformation between the operation modes with turn switch
each machine unit powered by an independent motor delivering long-lasting performance at duty
solid 3-knife cutter block with pre-mounted HSS plane knives
engine power circular saw S1 (100%) / S6 2,2 kW / 3,1 kW
engine power spindle shaper S1 (100%) / S6 1.5 kW / 2.1 kW
engine power planer S1 (100%) / S6 1,5 kW / 2,1 kW

included in delivery: shaper hood incl. guide rail and protective plate, mitre gauge incl. workpiece clamp,

mitre fence incl. end stop, rip fence, tiltable (90-45°) planer fence, planer gauge, tools.

mortising unit (K260LLL) optionally available

Technical Details

Model Variants

Available in either 230 v Single phase or 400v three phase

motor data 230 v single phase model variant

motor power s6 in W 3100 / 2100 / 2100

motor power s1 in W 2200 / 1500 / 1500

feed speed 8

voltage 230V

motor data 400 v three phase variant

motor power s6 in W 3100 / 2100 / 2100

motor power s1 in W 2200 / 1500 / 1500

feed speed 8

voltage 400V

planing

max. thicknessing cutting depth in mm 5

planer fence in mm 715x130

fence tilt 90-45°

infeed table length in mm 1090

measurements

table size in mm 980x470

table height in mm 840

suction port in mm 100

sliding table in mm 250x400

cutting performance

max. cutting height 90° in mm 78

max. cutting height 45° in mm 60

max. cutting width at parallel fence in mm 510

thicknessing

thicknessing height in mm 5-195

general planing

shaft diameter in mm 75

shaft speed in min-1 4500

cutter knives amount 3

technical specification

milling spindle diameter in mm 30

milling spindle speed in min-1 6500

spindle stroke in mm 100

max. clamping height in mm 80

max. tool diameter below table in mm 140

table opening in mm 145

mitre fence in mm 350x125

max. tool diameter above table 160

circular saws

sawblade in mm 254

sawblade speed in min-1 4750

weight

net weight in kg 375

gross weight in kg 390

packaging

packaging height in mm 970

packaging width in mm 1.170

packaging length in mm 1.300

general data

EAN code 9120039902890 230 v model

EAN code 9120039901244 400 v model

Optional

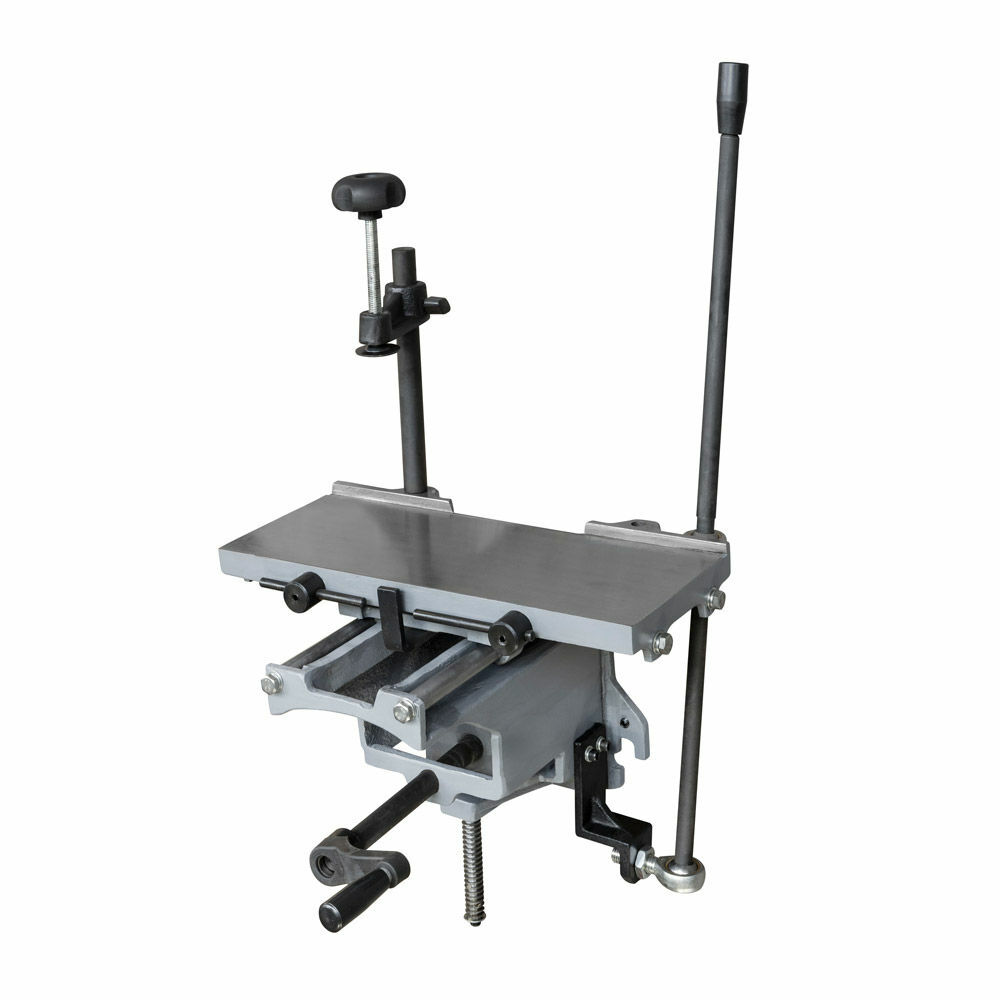

K5260LLL Mortising Unit

Available @ £ 250 + VAT

highlights

table size 365 x 145 mm
westcott drill chuck 0-16 mm
max. drill depth 95 mm
drill width 140 mm
height adjustment 75 mm

technical details

measurements

table size in mm 365x145

table stroke in mm 75

drilling wood

max. drilling depth in mm 95

max. drilling width in mm 140

weight

net weight in kg 28

gross weight in kg 30

packaging

packaging height in mm 330

packaging width in mm 390

packaging length in mm 530

general data

EAN code 9120039903262

The roots of Holzmann and Zipper reach back as far as 1886 to the foundation of a smithery in Haslach Austria. Today the group is one of the global players in the field of workshop machinery and equipment.
