Holzmann MULTI SA200 ACDC
MIG/MMA/WIG/TIG/CUT Inverter Welding System

+12

+11

+10

Holzmann MULTI SA200 ACDC MIG/MMA/WIG/TIG/CUT Inverter Welding System

Name: Holzmann MULTI SA200 ACDC MIG/MMA/WIG/TIG/CUT Inverter Welding System
SKU: 9120132140441
Price: 1399.99 GBP
Availability: InStock

Store / Welding & Fabrication Plant, Consumables

£1,399.99

In stock

Product Details

Holzmann MULTI SA200 ACDC MIG/MMA/WIG/TIG/CUT Inverter Welding System

Typically 3-6 Weeks Delivery Lead Time to Site.

Highlights

Holzmann MULTI SA200ACDCMIG/MMA/WIG/TIG/CUT Inverter Welding System

With the HOLZMANN Multi SA200ACDC welding system you can perform plasma cutting, MMA (electrodes), MIG (shielded gas) and TIG welding. Incl. carrying handle/LCD display and the corresponding torch/electrode holders, a complete package of the highest quality

Gas pre-flow time: 0-10 s
Gas post-flow time: 0 - 10S
Spot welding frequency: 0.5 - 15 s
Spot welding time: 0 - 15 s
MMA (electrode) welding
- Welding current range 10 - 160 A
- Warm start time 0 - 2s
MIG (shielded gas) welding
- Welding current range 30 - 200 A
- Welding wire thickness: Ø 0.6 | 0.8 | 0.9 | 1.1 mm
- Wire feed speed: 1.5 - 15 m/min
- Current reduction time: 0 - 1 s
- Current rise time: 0 - 1 s
TIG welding
- Welding current range: 10 - 200 A DC
- Welding current range: 20 - 200 A AC
- Pulse frequency DC: 0.5 - 150 Hz
- Pulse frequency AC square hard: 0.5 -150 Hz
- Pulse frequency AC square soft: 0.5- 10Hz
- Pulse frequency AC triangle: 0.5 -10 Hz
- Pulse frequency AC sine: 0.5 - 10 Hz
- Basic pulse ratio: 5-95%
- Ground pole current: 3 - 95 %
- TIG arc ignition: HF/Lift
- TIG PULSE welding (hard:): AC peak current: 20 - 125 A
Plasma cutting
- Cutting current range: 20 A - 40A
- max cutting thickness 12 mm
- Operating air pressure: 2.5 - 5 bar (0.25 - 0.5 MPa)
- Air flow rate 60 - 100 l / min

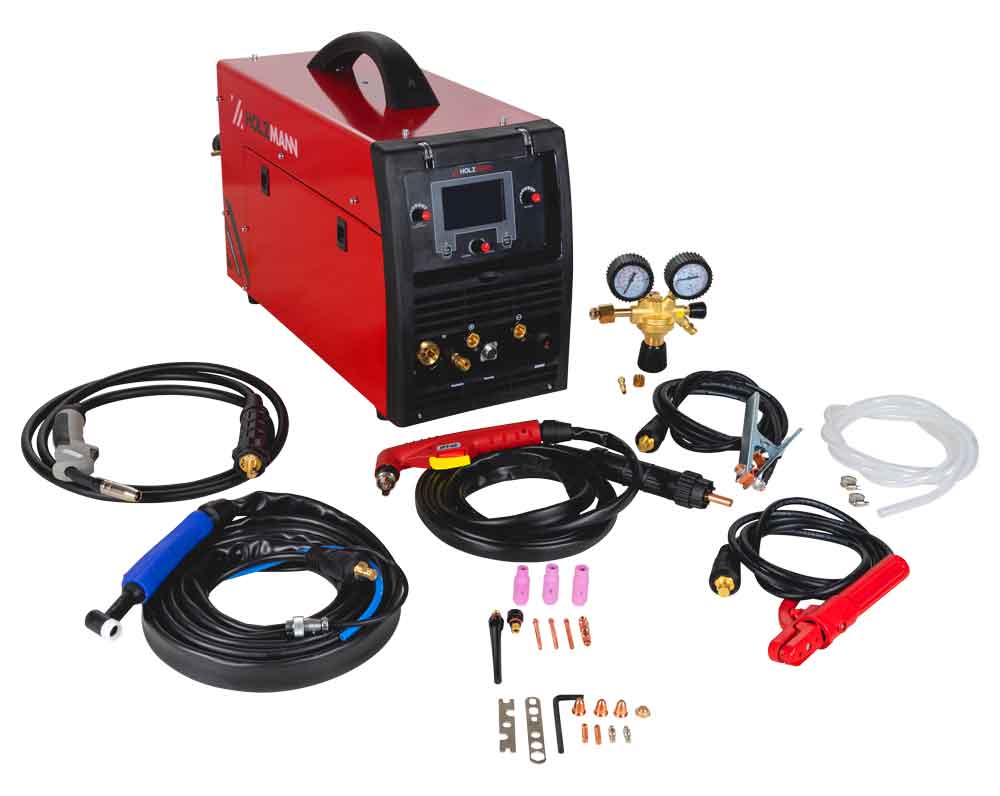

Scope of delivery: Cutting torch, TIG welding torch, MIG welding torch, electrode holder, burner cap (short/long), spacer with wheels, gas nozzles, clamping sleeve housing and clamping sleeves, gas hose, ground cable, pressure reducer

Technical Details

General dimensions

Installation dimensions in mm 600x290x480

Welding technology

Input voltage 230V / 50-60Hz

Input power capacity in KVA 7.4

max. cutting thickness in mm 12

Weight

Gross weight in kg 35

Net weight in kg 30

Shipping dimensions

Packaging width in mm 350

Packaging length in mm 790

Packaging height in mm 630

General data

EAN Code 9120132140441

Warranty

1 year as standard

The roots of Holzmann and Zipper reach back as far as 1886 to the foundation of a smithery in Haslach Austria. Today the group is one of the global players in the field of workshop machinery and equipment.
