Knuth ACE Laser 3015 2.0 MAX Laser Cutting System ( Part No. 141042) State of the art cutting technology sets the standard in price and performance

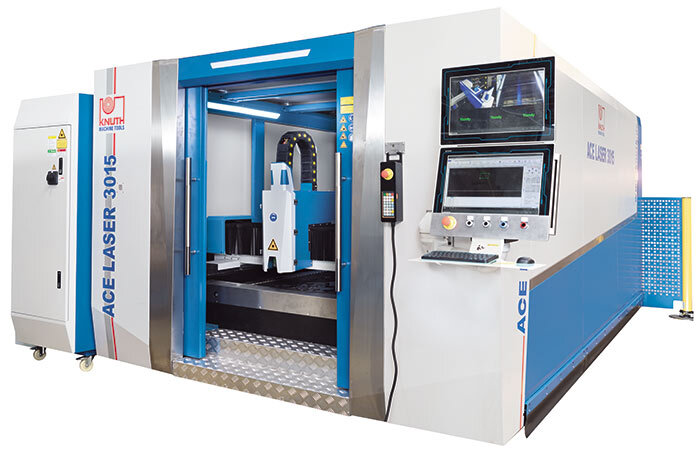

Knuth ACE Laser 3015 2.0 MAX Laser Cutting System
( Part No. 141042)
State of the art cutting technology sets the standard in price and performance
Availability, 6 months lead time to site. Subject to no prior sales.
Highlights
Knuth Laser Cutting Machines
Laser cutting systems have developed into one of the most versatile and affordable metalworking tools. Today's fiber-optic lasers can cut ferrous and non-ferrous materials of different thicknesses utilizing only a photonic beam and assist gasses. Besides the excellent edge finish and high throughput fiber lasers offer blistering speed for thinner applications and high cutting capacities with greater kilowatts. KNUTH's ACE Fiber Laser Cutting System features extensive standard options including a shuttle table and available sizes for any metalworking need. 18 model range available.
Ace Laser MAX Series
The machines of the ACE Laser series offer a cutting system that sets new standards in price and performance. They are optimally designed for the cutting process and excellent part quality. The machines guarantee productivity, safety and reliability. Comprehensive standard equipment ensures efficiency and versatility. These properties make the ACE Laser the ideal choice for industrial laser cutting applications, from complex workpieces with a lot size of 1 to large series production in electronics, aerospace or the automotive industry.
- This state-of-the-art laser cutting system features a gantry-style construction with drives on both sides and a large working area of 3000 x 1500mm up to 6000 mm x 2000 mm that can accommodate most of the common plate sizes
- The Y axis portal features an aluminum die-cast construction with low weight and high rigidity for excellent dynamics
- Thermal treatment of the meticulously welded machine frame and all structural parts reliably eliminates production-related material stresses – ensuring long-lasting, precise alignment of all components. This ensures long-term and reproducible cutting edge accuracy and long machine life
- The precision linear guides require minimal maintenance and are designed for long-lasting precision and high cutting speeds
- High-precision rack-and-pinion gears on the Z and Y axis ensure superior and reliable positioning accuracy
- Powerful servo-motors on all axes
- For the safety of people and the environment, the cutting system is equipped with a machine housing and filter extraction system. Special protective glass windows make it possible to observe the cutting process
- An automatic shuttle table system minimizes production downtimes, since the table can be loaded and unloaded during the cutting process
- Perpendicularity or squareness tolerance for laser cutting acc. to DIN EN ISO 9013-1
Control
- Easy operation with user-friendly optimized interface
- A technology database includes cutting parameters and pre-set cycles for various metals
- The efficient processing of all cutting jobs is further supported by user-friendly software for the selection of process parameters
- Solenoid and proportional valves regulate the gas pressures (set in the control) during the cutting process
Cutting Head
- High-quality cutter head made by Raytools with motorized focus position adjustment, integrated collision guard, and level control
- Maintenance-free beam guide is provided by a flexible fiber optic cable and ensures a long tool life
Laser Sources
- The ytterbium fiber laser provides 1000 to 6000 W beam power, is made by the renowned manufacturer, Maxphotonics, and ensures maximum cut quality and productivity
- The maintenance-free laser source reduces maintenance and operating cost
Laser Cutting Systems with more laser power upon request.
Technical Details
| WORKING AREA | |
|---|---|
| Table dimensions | 3000 mm x 1500 mm |
| Workpiece weight (max.) | 1000 kg |
| Axis acceleration X- / Y-axis | 10 m/s² |
| Axis acceleration Z axis | 5 m/s² |
| TRAVELS | |
|---|---|
| Travel X-axis | 1520 mm |
| Travel Y-axis | 3050 mm |
| Travel Z-axis | 100 mm |
| RAPID FEED | |
|---|---|
| X-axis rapid feed | 100 m/min |
| Y-axis rapid feed | 100 m/min |
| Change time at cutting table | 10 sec - 15 sec |
| ACCURACIES | |
|---|---|
| Positioning accuracy | 0,03 mm/m |
| Repeatability | 0,02 mm/m |
| LASER | |
|---|---|
| Fiber laser | 2000 W |
| Shaft length | 1,08 ± 10% µm |
| Beam power max. | 2000 W |
| Pulse frequency | 50~5k Hz |
| Power consumption | 6,5 kW |
| Supply voltage | AC 380V ± 10%, 50/60Hz, 3xL+N |
| Cutting capacity in structural steel | 14 mm |
| Cutting capacity in stainless steel | 5 mm |
| Cutting capacity in aluminum | 4 mm |
| DRIVE CAPACITY | |
|---|---|
| Machine drive capacity X-axis | 1 kW |
| Machine drive capacity Y-axis | 1,5 kW |
| Machine drive capacity Z-axis | 0,4 kW |
| MEASURES AND WEIGHTS | |
|---|---|
| Overall dimensions (length x width x height) | 9,8 m x 3,7 m x 2,15 m |
| Weight | 8000 kg |
Standard Equipment
Complete system with CNC-control (CypCut)
Ytterbium Faserlaser MAXPHOTONICS
fibre optics
high-pressure cutting head by Raytools
automatic focus position adjustment
laser protection booth
automatic changing table system
filter exhaust system
automatic gas console
central lubrication
coolant return cooler
CAD/CAM software (CypCut)
operating manual and programming instructions
Optional Equipment
Extensive range of optional tooling available for this machine
Structural Steel BM 114S Ace Laser Starter Set SKU: 253342
Stainless Steel/Aluminum Ace Laser Starter Set SKU: 253343
Refrigerated compressed air dryers SKU: 251090
pipe cutting device 3m (4020) SKU: 253238
pipe cutting device 3m (4020)

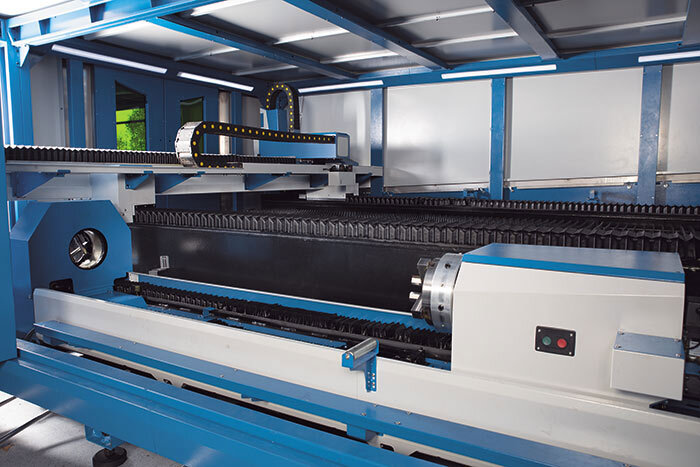

- Tube machining station designed for tubes with 3000 mm length and 150 mm diameter.
- Two mechanical chucks precisely guide the material under the cutter head
- Includes CypCut-Tube software, which was design especially for tube cutting. Drawing data can be imported and exported via the widely used, neutral IGES file format.
Contact us via email for price details on our optional tooling.
Installation & Operator Training
A suitable installation estimate is provided in the options covering the provision of 2 technicians to
visit site and undertake this work.
Knuth technicians are busy worldwide and have experience in a wide variety of industrial facilities.
We require provision of cranes, fork lift assistance etc by our clients as required.
We will be pleased to offer a detailed quotation to cover this aspect of your investment subject to
being forwarded full details of site postcode, access, site conditions and floorspace availability.
Shipping
Fully inclusive shipping rates covering transportation , import customs documentation, duties quoted
for inclusion at time of order for UK mainland sites. Northern Ireland destinations, Islands and other remote
sites should seek advice prior to order via email. Clients will be responsible for their own site offload
and siting at point of use.
Finance Availability
Looking to finance your equipment?We have access to a variety of funding sources who will look sympathetically
at requests for funding finance.
These include leading merchant banks such as asset finance specialists Close Brothers and Lombard.
The financial services division of Siemens will consider HP on the investment. Subject to Status.
On an investment of this nature with a long delivery lead time we can also look at providing a staged payment schedule.
We will confirm this with you at time of order.
