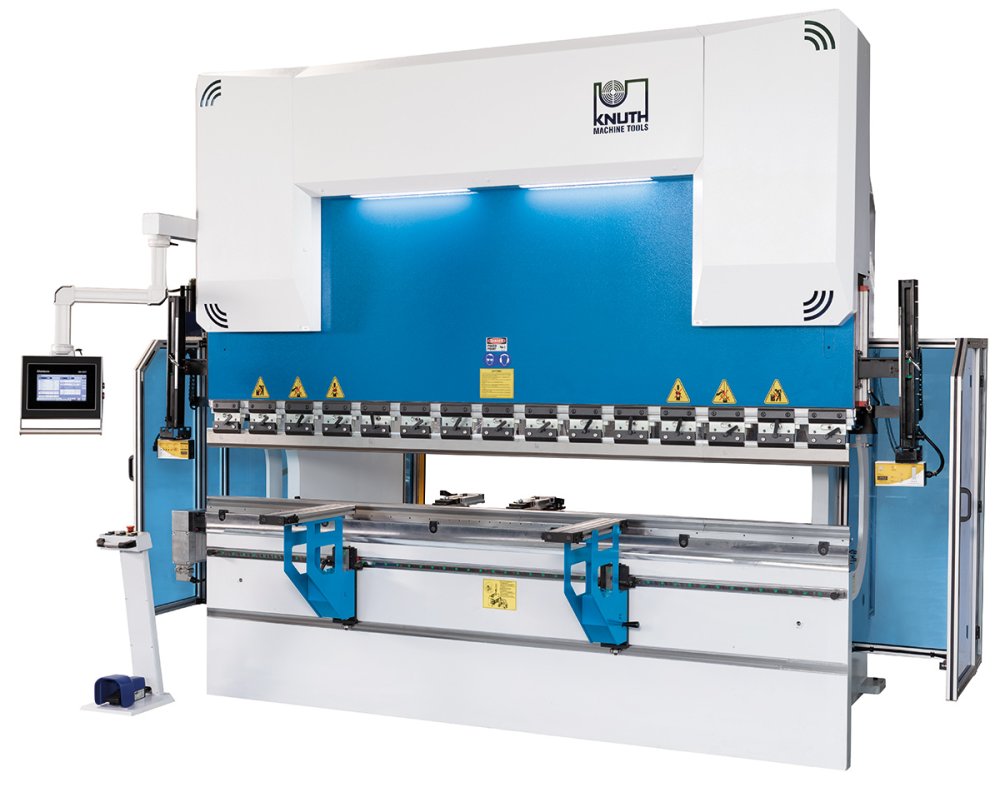

Knuth AHK V 30135 CNC Press Brake ( Part No.182651 ) Features a DELEM graphical touchscreen

Knuth AHK V 30135 CNC Press Brake

( Part No.182651 )

AHK V CNC series models feature a DELEM graphical touchscreen that provides efficient CNC programming tools and control over the entire bending

Delivery lead time/ Typically 3 months.

Highlights

Knuth AHK V 30135 CNC Press Brake

Knuth AHK V 30135 CNC Press Brake

Machine frame

• A steel frame made from certified raw material combined with a modern design, vast experience and extensive production know-how result in above average rigidity and accuracy
• All mounting surfaces of the carefully welded and strain-free steel construction are machined on modern high-end CNC machining centers
• All components subject to tensile loads have been carefully constructed and designed with large radii to eliminate the risk of welding cracks
• The large top beam is prestressable, and therefore optimized for lowest possible deformation
• The measuring system holder features a smart design and compensates for deformations at maximum loads to ensure constant reliable precision
• Guideways, piston bearings and seals are designed for optimum vertical load absorption ensuring long tool life

Work Area

• A large throat, long stroke, and narrow table ensure plenty of free space to accommodate complex bending sequences

Crowning

• The motorized lower crowning ensures precise bending results across the entire bending length when machining thicker sheet metals

Hydraulic system

• Hydraulic cylinders are custom designed for this machine’s requirement and are manufactured and honed in-house
• Hydraulic pistons also are manufactured in-house from forged steel, then hardened, ground, and chrome-plated
• Hydraulic blocks and valves from renowned manufacturers ensure lasting reliability
• Safety valves prevent damages to the system in case of overload conditions

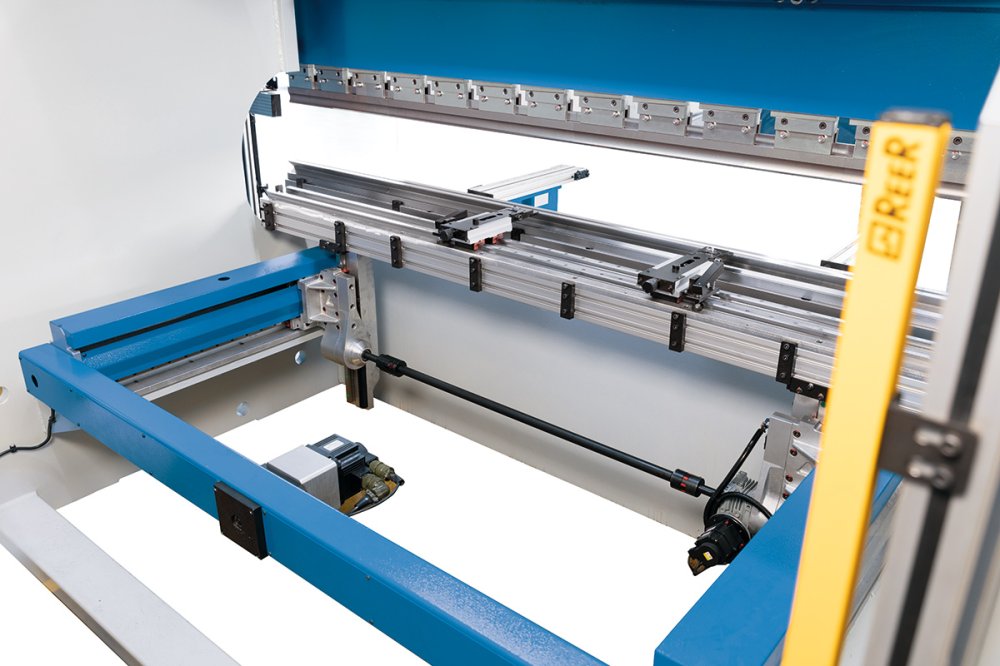

Back Gauge

• The back gauge features a very robust design and is low maintenance
• The back gauge fingers can be quickly adjusted with a safety tool via direct access from the machine front

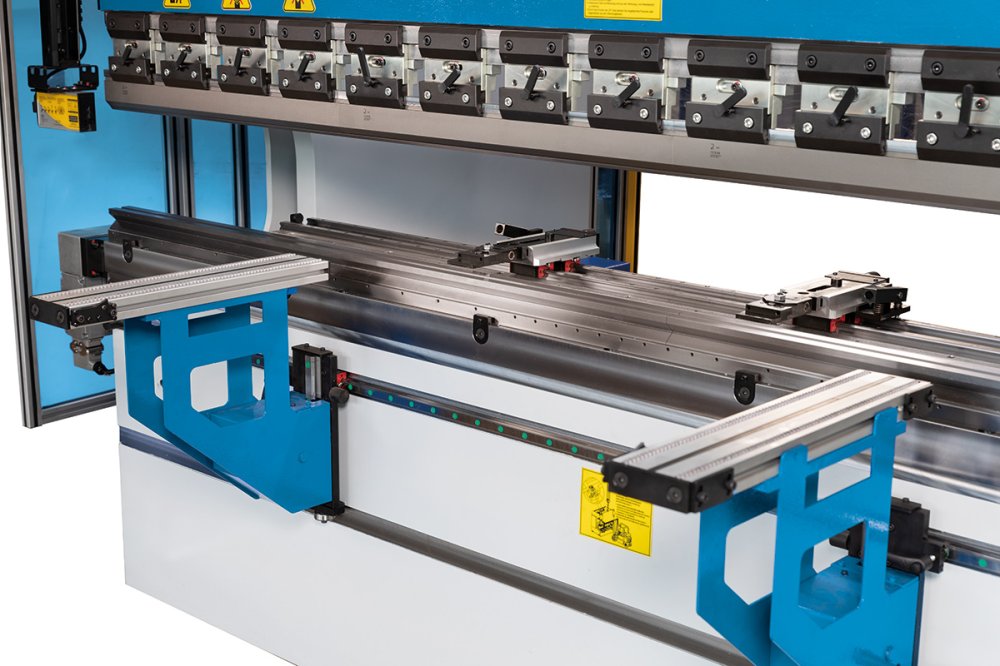

Front Support Arms

• Rigid support arms travel smoothly in a linear guideway and can be clamped at the desired position
• Gear racks allow quick vertical positioning of support arms
• Robust industrial brushes simplify the handling of metal sheets and protect their surfaces

Bending Tools

• Promecam (European) tool mounts accommodate an extensive selection of bending tools
• All tools are hardened and ground, and allow precise setup

Safety and Productivity

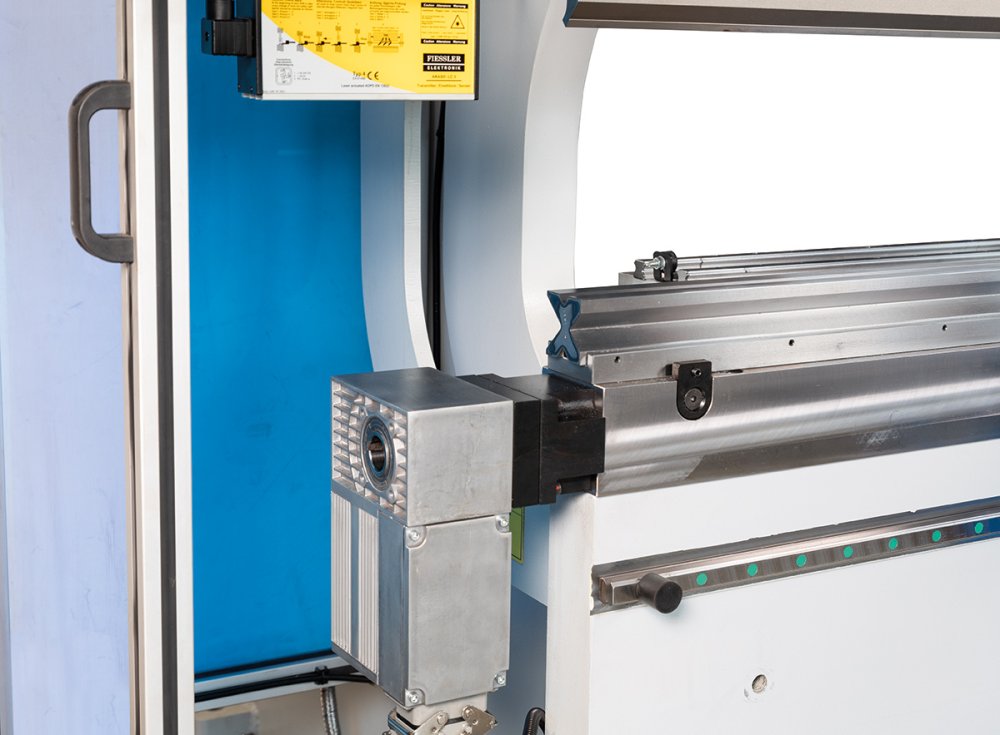

• The AKAS laser safety system monitors safety at the tool without affecting its functionality
• Safety Policy based on the latest CE standards
• A light curtain at the rear of the machine and robust safety guards at the sides secure the work area

Technical Details

Steering / Control

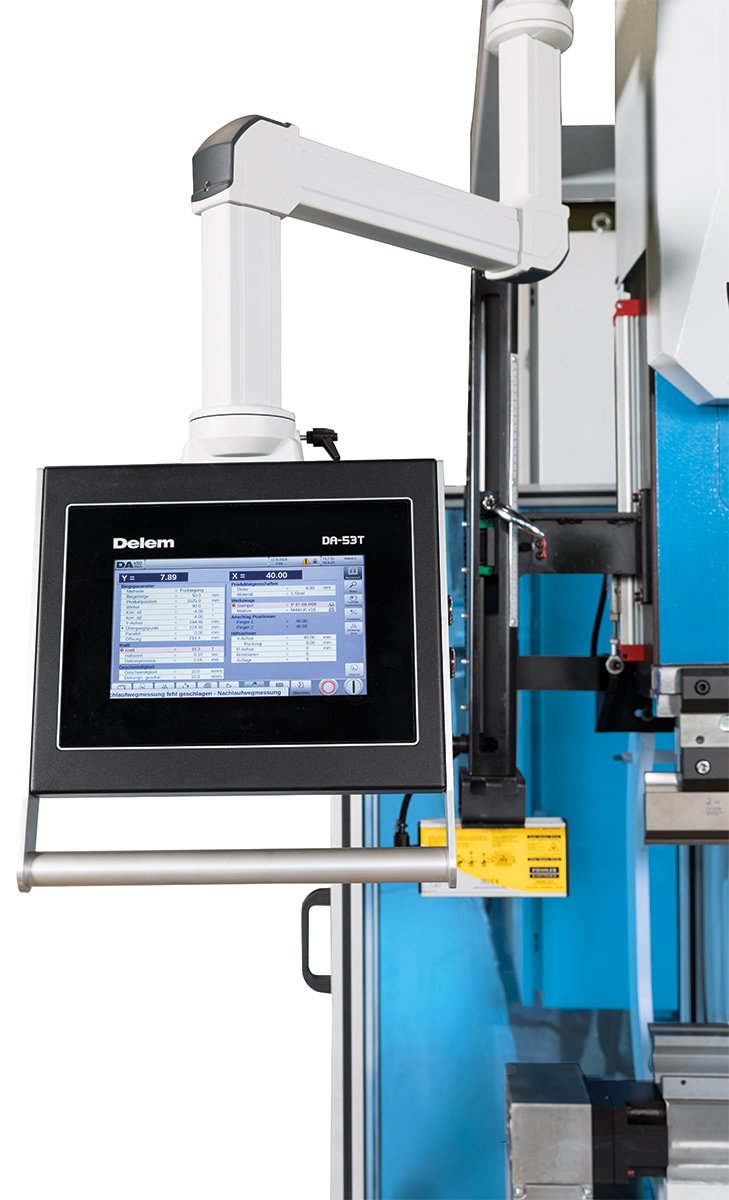

DELEM DA-53T - Everything under control

4-axis CNC control for press brakes with color touch screen

• The DA-53T touch CNC controller offers a modern compact and versatile solution for a wide range of press brake applications without sacrificing machine functionality.
• The controllers in this series offer the simplest CNC programming based on Delem's touch-screen graphical user interface.
• The new compact DA-53T is a state-of-the-art complete touch control solution for synchronized press brakes.
• This controller, which can control up to 4 axes as standard, can be built into control cabinets or used in an optional swivel arm housing.
• A 10.1" wide color TFT screen with high resolution and multi-touch screen technology with industrial quality allows access to the proven Delem user interface.
• It enables direct “hotkey” touch navigation between product programming and actual production. Functions are where they are needed.
• This ensures optimized ergonomics throughout the application.
• Machine setup and test bends are kept to a minimum with a quick and easy program-to-production workflow.
• USB interface enables quick product and tool backup using USB memory sticks.
• The standard machine control functions are Y1-Y2, X, R-axis and crowning.
• The second backgauge axis can also be set as a Z-axis.

DA-53T function:

• • “Hotkey” touch navigation • Up to 4 axes (Y1,Y2 + 2 auxiliary axes) • Crowning control • Tool/material/product inventory • Servo and frequency converter control • Advanced Y-axis control algorithms for closed and open loop valves • TandemLink (option) • USB memory stick interface • Profile-53TL offline software

Default:

• –High brightness color LCD display - 10.1" wide TFT screen - LED backlight - 1024 x 600 pixels - Industrial grade touch screen - Storage capacity 1 GB - Data backup / restore via USB - USB flash memory stick - Built-in valve amplifier - Shutdown Memory - Profile-53TL Offline Software Ordering Information - DA-53T, CNC in Rugged Enclosure - DA-53T-P, CNC Panel Type Factory Option - Swing Arm Type Enclosure Field Options - TandemLink

Technical specifications

• General - Industrial multi-touch screen - Instant power off electrical/interface - Power supply: 24V - Opto-isolated digital I/O - Integrated valve amplifier Y1,Y2,P - Encoder inputs (single/diff. 5V/12V) - RS232 for safety PLC - USB input control - Servo control - Unipolar / frequency converter control - Pressure valve control - Proportional valve control - Crowning control - Multiple digital function outputs Mechanical specifications - Housing 373 x 368 x 122 mm - Panel 311 x 222 x 60 mm - Design, glass surface, aluminum rim - Weight 9 kg (incl. housing) Programming - Alphanumeric product naming - Flattening product programming - Radius programming (bumping) - One page programming table - Programmable material properties - Programmable axis speed - Choice millimeters/inches,kN/ton - Product counter tools - Tool stock 30 punches / 30 dies - Alphanumeric tool identification - Flattening tools - Radius tools calculated - Tool safety zones - Pressing force - Bending tolerance - Crowning setting - Stamping force - Flattening - Automatic rounding calculation - Database learned angle correction Other - Learning function on all axes - From User selectable dialog languages - error reporting system - diagnostic program - operating hours and stroke counter - on-board analysis tool - PLC function (sequencer) - PLC interface for safetyFlattening - Automatic rounding calculation - Database of learned angle correction Miscellaneous - Learning function on all axes - User-selectable dialog languages - Error reporting system - Diagnostic program - Operating hours and stroke counter - On-board analysis tool - PLC function (sequencer) - PLC interface for safetyFlattening - Automatic rounding calculation - Database of learned angle correction Miscellaneous - Learning function on all axes - User-selectable dialog languages - Error reporting system - Diagnostic program - Operating hours and stroke counter - On-board analysis tool - PLC function (sequencer) - PLC interface for safety
