Knuth Basic 170 Super Mechanics Lathe ( Part No. 300815 ) Solid Precision Bench Lathe With Large Centre Width. Extensive Standard Equipment
Knuth Basic 170 Super Mechanics Lathe
( Part No.300815 )
Solid Precision Bench Lathe With Large Centre Width.. Extensive Standard Equipment
Ex Stock Availability, 4 weeks, Subject to No Prior Sales.
Highlights

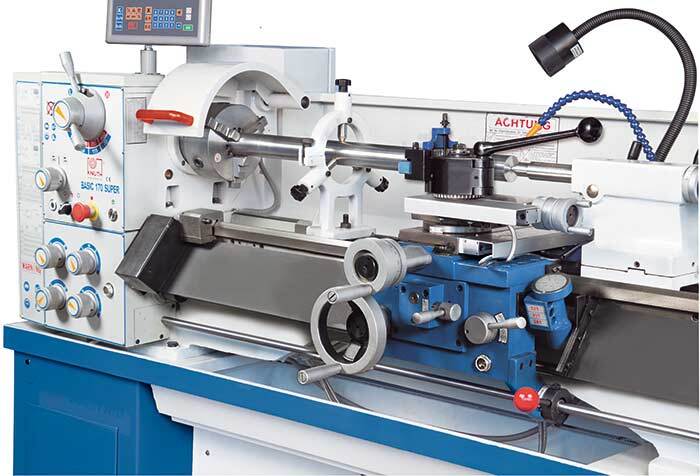

Knuth Basic 170 Super Mechanics Lathe
The Basic-170 Super is a versatile lathe for single part production. The wide range of optional accessories makes this model the best choice for repair, training and workshops of all kinds.
- Compact design reduces the footprint
- Extensive standard equipment for a wide range of possible applications
- 3-axis position indicator with rotating functions
Detail
- Main spindle gears hardened and ground
- Max. spindle speed 2000 rpm
- Adjustable main spindle bearing
- Cast iron bed, double V-guide, hardened and ground
- Safety interlock prevents simultaneous use of lead and feed spindle feed
- The main gear and feed gear run in an oil bath
- Lock case double-walled, oil bath
- All guides adjustable
3-axis position indicator
- Higher work accuracy
- Lower error rate
- Greater production security
- Significant time savings
- productivity increase
- Optimal readable display
- User-friendly functions
- Clearly arranged keyboard
- Resolution 0.01 / 0.005mm
- coordinate value specification
- Retaining the axis position when the display is switched off
- Bolt circle pattern calculation
- calculator function
- Storage for 10 tools
- Radius / diameter switching
- Conversion mm/inch
- Easy attachment and maintenance-free operation
- Display of upper (Z0) and bed slides (Z1) both separately and in difference / cumulative switching on lathes
Technical Details
| WORKSPACE | |
|---|---|
| turning diameter over bed | 330mm |
| Circulation Ø over support | 198mm |
| peak width | 1000mm |
| TRAVERSE PATHS | |
|---|---|
| X axis travel | 170mm |
| Z1 axis travel | 95mm |
| Swivel range top slide | ± 360° |
| MAIN SPINDLE | |
|---|---|
| spindle mount | Camlock D1-4 |
| spindle speed | 70 rpm - 2000 rpm |
| spindle bore | 38mm |
| Spindle speed levels | 8th |
| spindle cone | 5 MK |
| FEED | |
|---|---|
| Feed X axis | 0.014mm/rev - 0.38mm/rev |
| Feed Z axis | 0.052mm/rev - 1.392mm/rev |
| THREADING | |
|---|---|
| Threading Whitworth | (34) 4-56 TPI |
| Threading, Metric | (26) 0.4-7mm |
| TAILSTOCK | |
|---|---|
| tailstock cone | 3 MK |
| tailstock quill stroke | 100mm |
| tailstock quill diameter | 33mm |
| Tailstock cross adjustment | ± 10mm |
| DRIVE POWER | |
|---|---|
| Main drive engine power | 1.5kW |
| MASS AND WEIGHT | |
|---|---|
| Dimensions (length x width x height) | 1.83m x 0.68m x 1.32m |
| Weight | 520kg |
Standard Equipment
3-axis position indicator 3-jaw
chuck Ø 160 mm
4-jaw faceplate chuck Ø 200 mm Clamping disc
Ø 280 mm
WE
quick-change tool post head WED 20100 quick-change tool post
Fixed and revolving steady rest Spray protection wall Chuck protection Foot brake
Underframe Work lamp fixed tip Operating tool Operating manual
Operator Training
Operator training available in showroom subject to quotation
prior to delivery. Email us to outline your needs.
