Knuth Basic 180 Super Mechanics Lathe ( Part No. 300805 ) Powerful and fully equipped

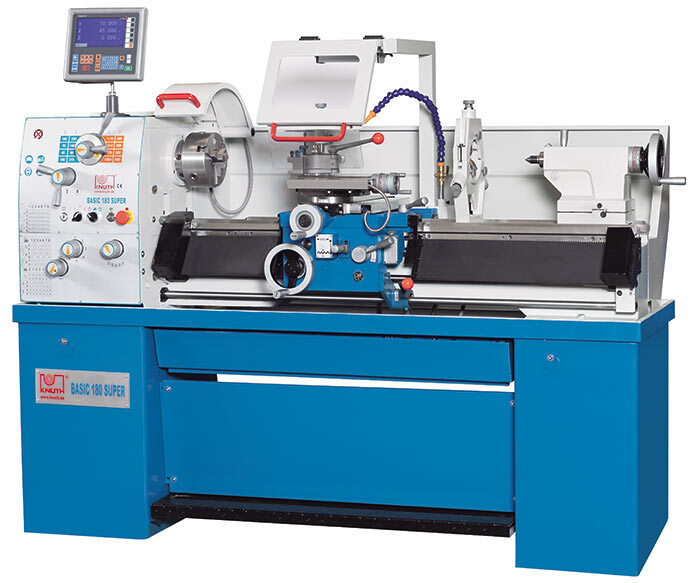

Knuth Basic 180 Super Mechanics Lathe
( Part No.300805 )
Powerful and fully equipped
Availability, Currently 6 weeks to site, Subject to No Prior Sales.
Highlights

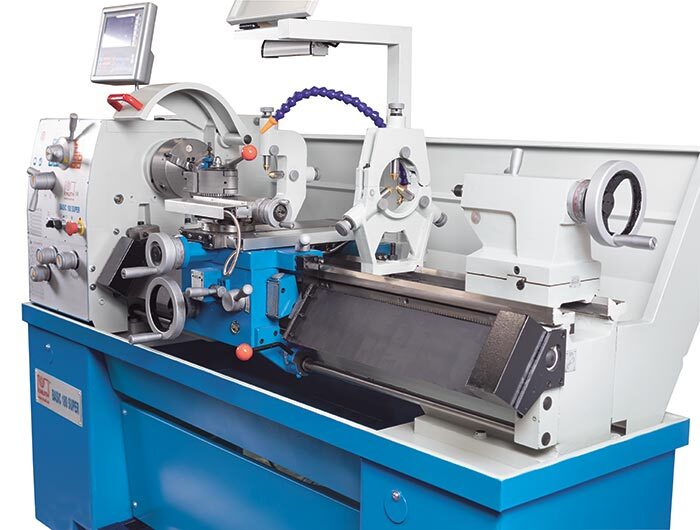

Knuth Basic 180 Super Mechanics Lathe
The Basic 180 Super is the largest mechanic's lathe in the KNUTH machine tool range and is also one of the heaviest machines in this popular market segment. The large bed width of 206 mm and a 30 percent higher overall weight have a positive effect on the overall processing quality and enable machining performance that also meets industrial requirements. Equipped with a position indicator, quick-change holder and other standard accessories, the BASIC 180 Super has been one of our best-selling conventional lathes for more than 20 years.
- Very large bed width for maximum stability
- Stable construction for minimal vibrations
- Powerful engine for demanding tasks
- Extensive standard equipment for a wide range of possible applications
Detail
- Cast iron bed, heavily ribbed
- All guides are induction hardened and precision ground
- Main spindle with D1-4" mount, bore Ø 38 mm, guided in 2 adjustable precision tapered roller bearings
- All gears made of Cr-Ni steel, hardened, precision ground, running in an oil bath
- Tailstock can be shifted ±10mm for taper turning
- Powerful main drive motor (2.4 kW) in the base
- Guides adjustable via V-ledges
- Acceptance report according to DIN

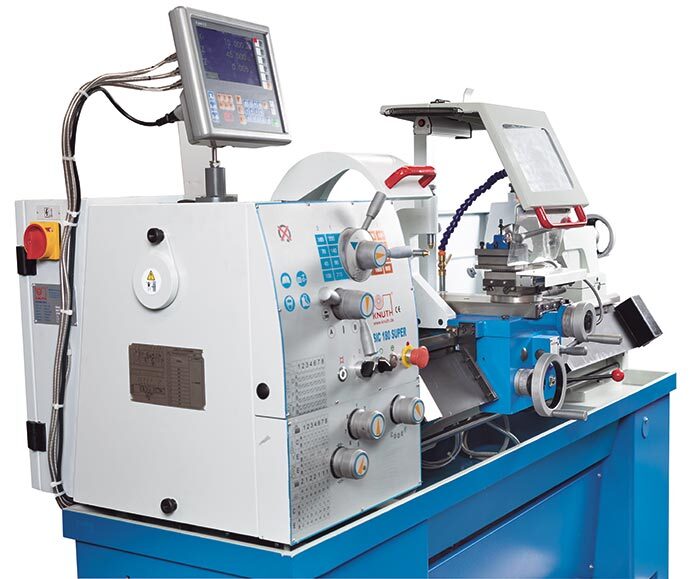

- With 3-axis position indicator, mounted
- 3 Axis Position Indicator
- Higher work accuracy
- Lower error rate
- Greater production security
- Significant time savings
- productivity increase
- Optimal readable display
- User-friendly functions
- Clearly arranged keyboard
- Resolution 0.01 / 0.005mm
- coordinate value specification
- Retaining the axis position when the display is switched off
- Bolt circle pattern calculation
- calculator function
- Storage for 10 tools
- Radius / diameter switching
- Conversion mm/inch
- Easy attachment and maintenance-free operation
- Display of upper (Z0) and bed slides (Z1) both separately and in difference / cumulative switching on lathes
Technical Details
| WORKSPACE | |
|---|---|
| turning diameter over bed | 356mm |
| Circulation Ø over support | 220mm |
| bridge length | 206mm |
| bed width | 206mm |
| peak width | 1000mm |
| Turning diameter over bridge | 506mm |
| TRAVERSE PATHS | |
|---|---|
| X axis travel | 178mm |
| Z1 axis travel | 92mm |
| Swivel range top slide | ± 50° |
| MAIN SPINDLE | |
|---|---|
| spindle mount | Camlock D1-4 |
| spindle speed | 45 rpm - 1800 rpm |
| spindle bore | 38mm |
| Spindle speed levels | 16 |
| spindle cone | 5 MK |
| FEED | |
|---|---|
| Feed X axis | 0.015mm/rev - 0.22mm/rev |
| Feed Z axis | 0.043 mm/rev - 0.653 mm/rev |
| THREADING | |
|---|---|
| Threading Whitworth | (28) 4-56 TPI |
| Threading, Metric | (37) 0.4-7mm |
| TAILSTOCK | |
|---|---|
| tailstock cone | 3 MK |
| tailstock quill stroke | 120mm |
| tailstock quill diameter | 45mm |
| Tailstock cross adjustment | ± 10mm |
| DRIVE POWER | |
|---|---|
| Main drive engine power | 2.4kW |
| Main drive, constant load | 1.5kW |
| MASS AND WEIGHT | |
|---|---|
| Dimensions (length x width x height) | 1.95m x 0.79m x 1.2m |
| Weight | 880kg |
Standard Equipment
3-axis position indicator 3-jaw
chuck Ø 160 mm
4-jaw faceplate chuck Ø 200 mm
clamping disc Ø 320 mm
WE
quick-change tool holder head WED 20100 quick-change tool holder
coolant system
fixed and moving
steady rest chip tray
splash guard
chuck protection
foot brake
base
LED work
light micrometer longitudinal stop
change gears
reducing sleeves
fixed tips (Center points)
Thread
gauge Operating tool
Operating instructions
Optional Tooling
Wide range of tooling options available
SKU: 103810
Contact us via Email for price details
Operator Training
Operator training available in showroom subject to quotation
prior to delivery. Email us to outline your needs.
