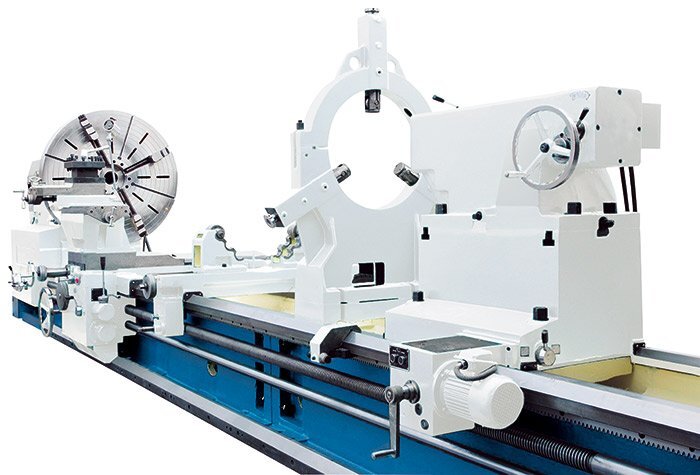

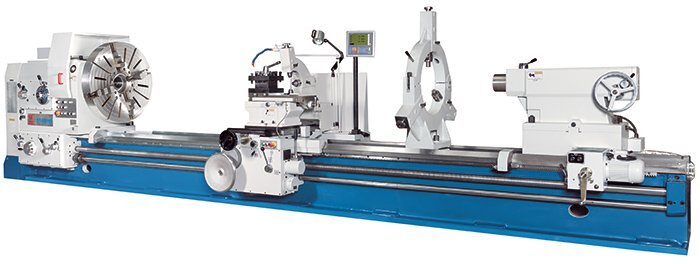

Knuth DL E Heavy 1000/3000 Universal Heavy Duty Lathe ( Part No. 300519 ) 130 mm Spindle bore, large turning diameter and centre width of 3000mm

Knuth DL E Heavy 1000/3000 Universal Heavy Duty Lathe

( Part No 300519 )

130 mm Spindle bore, large turning diameter and centre width of 3000mm

Availability, 26 weeks lead time to site. Subject to No Prior Sales.

Highlights

Knuth DL E Heavy Universal Heavy Duty Lathes Series

With the machines of the DL E Heavy series, you can machine really large turning diameters and workpiece lengths. This lathe series is the solution for conventional machining of workpieces up to 8000 mm (315 in.) in length and over 1600 mm (63 in.) in diameter. The particularly wide and heavily ribbed machine bed takes heavy workpiece weights. Powerful motors drive the main spindle via a finely adjustable multi-disc clutch. The rapid traverse in the support is particularly effective with large bed lengths and the heavy tailstock is also moved with a motor drive.

Range 15 models to choose from

DL E Heavy 500/1500 Maximum length 1500 mm , Turning dia over bed 1000 mm

DL E Heavy 500/3000 Maximum length 3000 mm , Turning dia over bed 1000 mm

DL E Heavy 500/5000 Maximum length 5000 mm , Turning dia over bed 1000 mm

DL E Heavy 500/8000 Maximum length 8000 mm , Turning dia over bed 1000 mm

DL E Heavy 620/1500 Maximum length 1500 mm , Turning dia over bed 1250 mm

DL E Heavy 620/3000 Maximum length 3000 mm , Turning dia over bed 1250 mm

DL E Heavy 620/5000 Maximum length 5000 mm , Turning dia over bed 1250 mm

DL E Heavy 620/8000 Maximum length 8000 mm , Turning dia over bed 1250 mm

DL E Heavy 800/3000 Maximum length 3000 mm , Turning dia over bed 1600 mm

DL E Heavy 800/5000 Maximum length 5000 mm , Turning dia over bed 1600 mm

DL E Heavy 800/8000 Maximum length 8000 mm , Turning dia over bed 1600 mm

DL E Heavy 1000/2000 Maximum length 2000 mm , Turning dia over bed 2000 mm

DL E Heavy 1000/3000 Maximum length 3000 mm , Turning dia over bed 2000 mm ( Quoted Model)

DL E Heavy 1000/5000 Maximum length 5000 mm , Turning dia over bed 2000 mm

DL E Heavy 1000/8000 Maximum length 8000 mm , Turning dia over bed 2000 mm

Contact us for current availability if any of these models of interest.

Knuth DL E Heavy 1000/3000 Universal Heavy Duty Lathe

Highlights

• With the machines of the DL E Heavy series, you can machine really large turning diameters and workpiece lengths. This lathe series is the solution for conventional machining of workpieces up to 8000 mm (315 in.) in length and over 1600 mm (63 in.) in diameter. The particularly wide and heavily ribbed machine bed takes heavy workpiece weights. Powerful motors drive the main spindle via a finely adjustable multi-disc clutch. The rapid traverse in the support is particularly effective with large bed lengths and the heavy tailstock is also moved with a motor drive.
  • Spindle bore of 130 mm (5 in.)
  • Powerful 22 kW motor (30 hp)
  • Sturdy multi-disk clutch
  • Rapid feed in X
  • and Z-direction
  • Complete with assembled 3-axis position indicator

  Product Detail

  • 30kW motor ensures high cutting power
  • Heavy-duty cast-iron body with ribbed bed reduces vibrations to a minimum
  • Induction hardened and ground guideways
  • Joystick control for X and Z feeds is mounted directly to support
  • Hand wheel for tailstock adjustment
  • Separate rapid feed motor for feed in X and Z direction
  • Sturdy multi-disk clutch for headstock drive
  • Large spindle bearings
  • Includes completely assembled 3-axis position indicator
  • Overload clutch enclosed in apron

  3-axis position indicator

  • More accuracy
  • Lower error rate
  • Increased productivity
  • Resulting in valuable time savings
  • For increased productivity
  • Easy to read display
  • Operator-specific features
  • Convenient keyboard layout
  • Resolution: 0.01/ 0.005 mm
  • Default coordinates
  • Axis position is maintained when display is turned off
  • Hole circle pattern calculation
  • Calculator function
  • Storage for 10 tools
  • Radius / diameter toggle
  • Mm/inch conversion
  • Easy expansion and maintenance-free operation
  • Display for top (Z0) and box way slide (Z1) both separate and in differential / cumulative mode for lathes

Technical Details

Standard Equipment

3-axis position indicator
4-jaw face plate chuck Ø 1600 mm
coolant system
steady rest 220-630 mm
motorized tailstock
LED work lamp
center points
reducing sleeves
foundation bolts
central lubrication
operating tools
operator instructions

Optional Equipment

Optional equipment available as follows

Contact us by email if any optional equipment is of interest

Operator Training

Operator training available in showroom subject to quotation

prior to delivery. Email us to outline your needs.

Shipping

Fully inclusive shipping rates covering transportation, import customs documentation, duties

quoted for inclusion at time of order for UK mainland sites. Northern Ireland destinations, Islands

and other remote sites should seek advice prior to order via email. Clients will be responsible for

their own site offload and siting at point of use.

Finance Availability

Looking to finance your equipment?

We have access to a variety of funding sources who will look sympathetically

at requests for funding finance.

These include leading merchant banks such as asset finance specialists Close Brothers and Lombard.

The financial services division of Siemens will consider HP on the investment. Subject to Status.

On an investment of this nature with a long delivery lead time we can also look at providing a staged payment schedule.

We will confirm this with you at time of order.
