Knuth Direct Indexing Head S 200 ( 110966 )

Name: Knuth Direct Indexing Head S 200 ( 110966 )
SKU: 110966
Price: 992.0 GBP
Availability: InStock

Store / Precision Machine Tools & Equipment

£992.00

In stock

Product Details

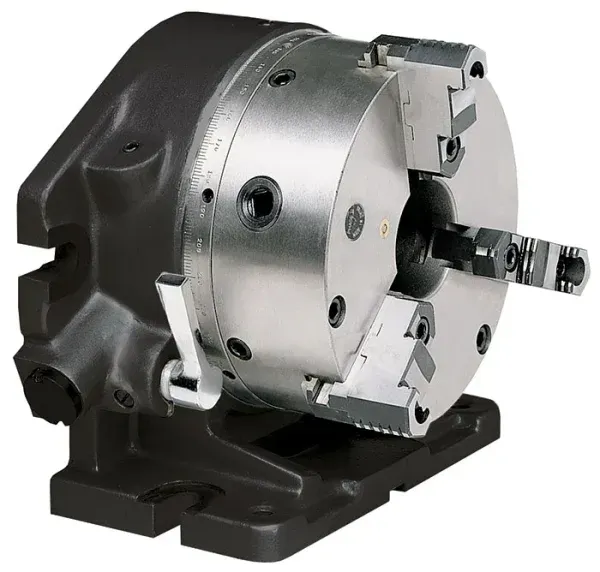

Knuth Direct Indexing Head S 200 ( 110966 )

Highlights

A divider is a universal device for positioning a workpiece at a precise angle, so that it can be machined on its face or side surface. Direct dividers include a disc with a single row of notches or boreholes that can be stopped in a particular position with a wedge or bolts. For easier operation, divider sections that are not needed can be covered, so the desired separation can be set easily and reliably.

Vertical and horizontal setup
Centrally clamping 3-jaw chuck

Product Details

The S 200 Direct Indexing Head can be used in a horizontal or vertical setup. The indexing unit is enclosed in the resistant cast-iron body of the divider, where it is protected from contamination to ensure precise and constant divisions of 2, 3, 4, 6, 8, 12, and 24. An easy-to-read circumferentially mounted Nonius scale provides exact divisions up to 360º. A sturdy clamping lever is provided for the torsion-proof fixture of the chuck at any set position

Technical Details

Center height 150 mm

Manual 3-jaw-chuck diameter 210 mm

Divisions 2, 3, 4, 6, 8, 12, 24

Spindle concentricity radial 0,01 mm

Axial concentricity, clamping plate 0,015 mm

Optical flat setup plate - base plate 0,02 mm

Squareness of setup area 0,015/200 mm

Indexing accuracy 25 "

Weight 59 kg
