Knuth FSM 480 Surface Grinder ( Part No. 122802 ) Compact manual surface grinder for workshops

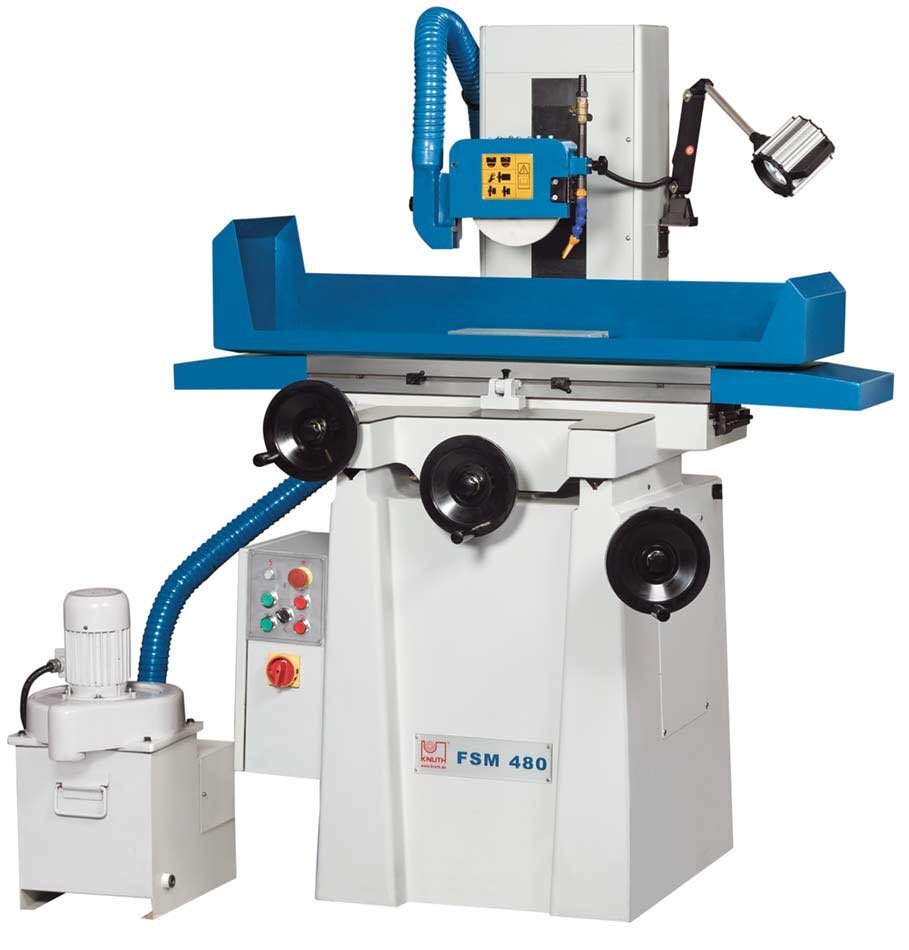

Knuth FSM 480 Surface Grinder
( Part No. 122802 )
Compact manual surface grinder for workshops
Ex Stock Availability .Delivery currently 2 weeks from receipt of order.
Highlights
This series of manual surface grinding machines is aimed at users who have to carry out short and simple grinding work with high precision but at low cost. They are a perfect solution for repair and training workshops. The machine frame in cross table construction offers high quality. The table is guided easily and a magnetic clamping plate is also part of the standard accessories, as is the dust suction device.
- Cast-iron machine base absorbs vibrations
- Magnetic clamping plate 125 x 300 mm (4.9 x 11.8 in.)
- Extensive standard equipment included
- Angle-adjustable grinding vise
Knuth FSM 480 Surface Grinder
- Spindle resists high loads; mounted in pre-loaded angular deep-groove ball bearings ensures low-vibration operation, high accuracy, increased lifetime and low maintenance
- Completely leak-proof and balanced spindle motor with high load capacity
- Solid, vibration-absorbing construction
- V- and flat guides in X and Y directions for consistently high accuracy
- Longitudinal table movement over linear ball guide; linear roller guideway
- Adjustable hand wheel scales for vertical and transverse adjustments allows zeroing at any position
- Central lubrication
- Grinding parallelism 0,005 mm / 300 mm
Technical Details
| WORKING AREA | |
|---|---|
| Table dimensions | 210 mm x 450 mm |
| Spindle axis-to-table surface distance | 450 mm |
| TRAVELS | |
|---|---|
| Travel X-axis | 480 mm |
| Travel Y-axis | 230 mm |
| Travel distance per hand-wheel rotation, X-axis | 5 mm |
| Travel distance per hand-wheel rotation, Y-axis | 5 mm |
| Travel distance per hand-wheel rotation, Z-axis | 1 mm |
| FEED | |
|---|---|
| Scale ring division X-axis | 0,02 mm |
| Scale ring division Y-axis | 0,02 mm |
| Scale ring division Z-axis | 0,005 mm |
| ACCURACIES | |
|---|---|
| Roughness | >= 0,63 µm Ra |
| DRIVE CAPACITY | |
|---|---|
| Motor rating main drive | 1,5 kW |
| MEASURES AND WEIGHTS | |
|---|---|
| Grinding wheel dimensions | 200 mm x 13 mm x 32 mm |
| Weight | 730 kg |
Standard Equipment
grinding wheel flange
grinding wheel dresser
grinding wheel
exhaust vacuum
work lamp
magnetic clamping plate 125 x 300 mm
balancing shaft
balancing station
angle - adjustable grinding vise
operating tools
operator manual
