Knuth FlexLoader 10

( Part No. 100128 )

Loader system with robot for autonomous loading and unloading

Ex stock availability, 4 weeks to site,Subject to no prior sales

Highlights

The Flexloader is a comprehensive system for the automation of workpiece handling on an existing machine. The system is intended for small batch sizes but offers a modular design for easy expansion.

• Made in Germany
• Plug and Play solution
• Covers a large working radius
• Features a modern HMI
• Certified security

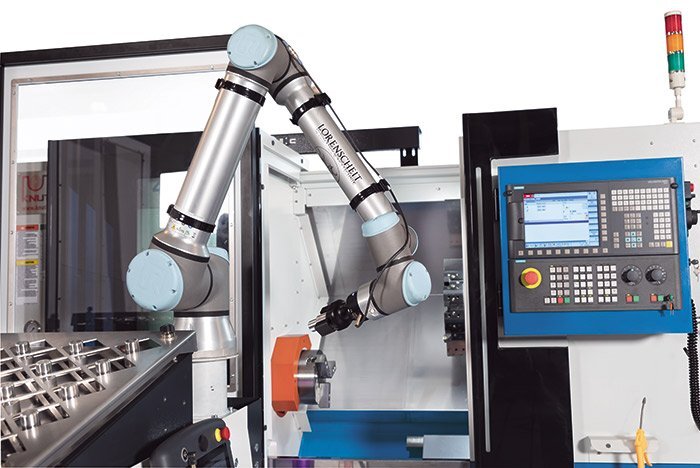

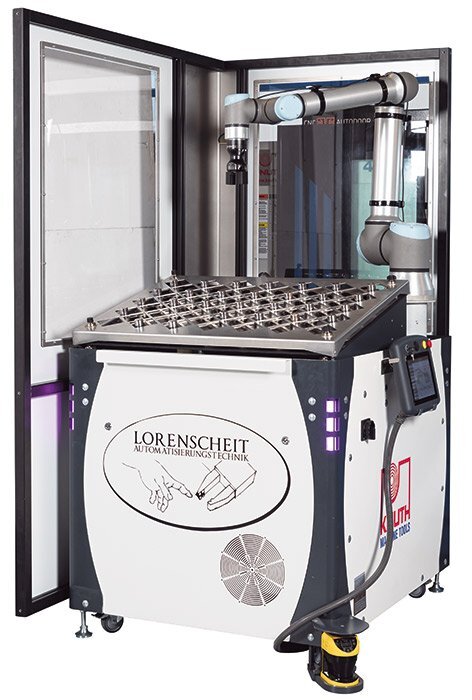

The system comes complete with frame and safety technology.

• It features bulkheads on one side and is open on the operator side
• The enclosure can be selected as needed for left-hand or right-hand access

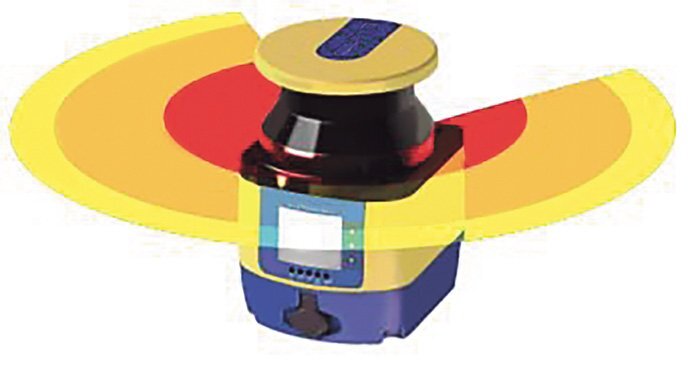

• The safety scanner is installed at the open side
• The system is provided with a pre-installed machine interface for various machine tools

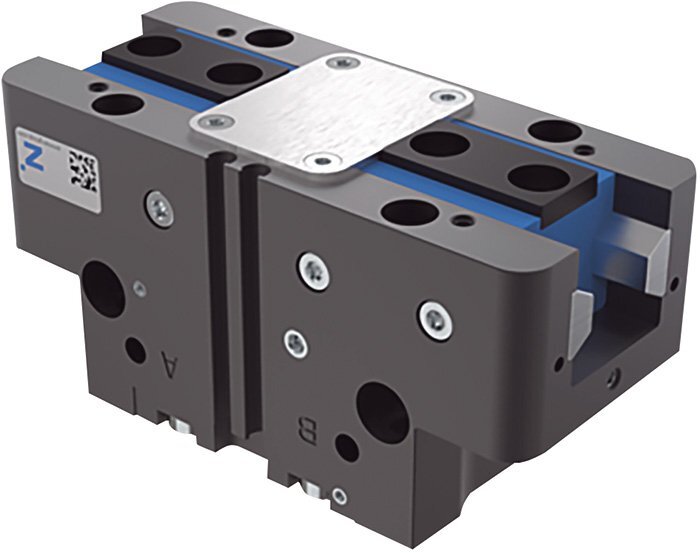

• A pneumatic 2-finger gripper with adjustable pressure is pre-installed
• The standard version includes a grid plate. The plate size can be selected by the customer as needed for their workpiece dimensions.

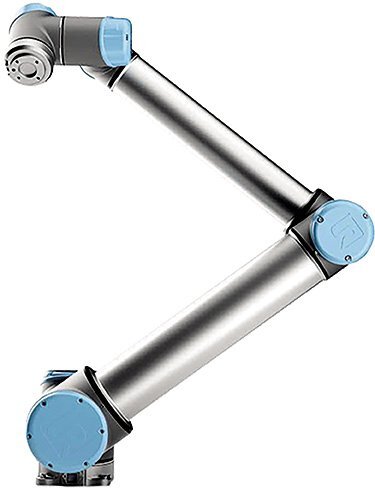

Universal Robots UR10 (3rd generation)

• 6-axis robot arm with a working radius of 1300 mm
• Load capacity: 10 kg
• Reach: 1300 mm
• Joint rotation: +/- 360° on all joints
• Speed: Joint: max. 120°/180°/sec ; Tool: about 1 m/sec
• Repeatability: +/- 0.1 mm
• IP Rating: IP54

• Includes an encoder and UR Safety 3.1 (8 adjustable safety functions) - with TüV certification
• Communication: TCP/IP - Ethernet ports; Modbus, Profinet
• TCP programming: Graphical User Interface; 12” touchscreen

Easy and flexible programming

• Flex HMI is a technology developed by Lorenscheit Automatisierungs-Technik. It features a PC-based user interface that is customized for the respective application and makes tooling of your robot a breeze. Many SMBs use their machines for small batch productions of 1 to 100 workpieces. At these quantities, work-intensive tooling would be counterproductive - tooling has to be simple and straightforward.

Advantages

• High efficiency, consistent product quality and increased productivity
• Simplified operation during tooling of new workpieces
• Database for loading workpieces that have ben set up previously (optionally with barcode scanner)
• Modular system design for easy expansion and maximum scalability
• Plug-and-Play connectivity based on pre-configured system consisting of HMI, robot and KNUTH FlexLoader

• For the KNUTH FlexLoader an automatic door is required at the machine. We provide retrofitting solutions upon request.

Technical Details

Standard Equipment

• enclosure
  safety technology
  2-finger gripper
  grid plate
  flex-HMI with 12'' touchscreen

Options

Wide range of tooling options available

CNC-AutoDoor 1000mm, Single door, Servo, installed SKU: 253322

Contact us via Email for price details

Operator Training

Operator training available in showroom subject to quotation

prior to delivery. Email us to outline your needs.
