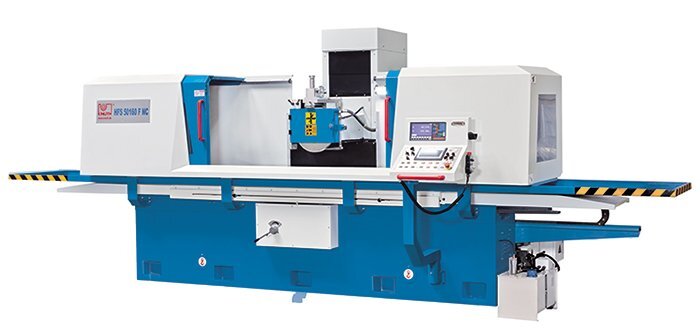

Knuth HFS 50100 F NC Surface Grinding Machine ( Part No. 124934 ) Easy programming of grinding precision for large and heavy workpieces
Knuth HFS 50100 F NC Surface Grinding Machine
( Part No. 124934 )
Easy programming of grinding precision for large and heavy workpieces
Delivery currently 26 weeks from receipt of order.
Highlights
Knuth HFS F NC Series Surface Grinders
This series of surface grinders processes large and heavy workpieces with tolerances as required for precision surface grinding or for the preparatory processing step of lapping or polishing. The machine frame is designed in a cross-bed design with a movable column. This construction enables a long table guidance and thus the optimal introduction of weight force over the entire work area. The ability to switch between automatic or manual operation extends the scope for sample production, repair and training.
Range - 7 model series
Knuth HFS 50100 F NC Surface Grinding Machine 500 mm x 1000 mm Table / Quoted Model
Knuth HFS 50160 F NC Surface Grinding Machine 500 mm x 1600 mm Table
Knuth HFS 60160 F NC Surface Grinding Machine 600 mm x 1600 mm Table
Knuth HFS 60200 F NC Surface Grinding Machine 600 mm x 2200 mm Table
Knuth HFS 80160 F NC Surface Grinding Machine 800 mm x 1600 mm Table
Knuth HFS 80220 F NC Surface Grinding Machine 800 mm x 2200 mm Table
Knuth HFS 80300 F NC Surface Grinding Machine 800 mm x 3000 mm Table
Please email us if you are interested in any other models in the series and require price and delivery details.
Knuth 50100 F NC Surface Grinder
This series of surface grinders processes large and heavy workpieces with tolerances as required for precision surface grinding or for the preparatory processing step of lapping or polishing. The machine frame is designed in a cross-bed design with a movable column. This construction enables a long table guidance and thus the optimal introduction of weight force over the entire work area. The ability to switch between automatic or manual operation extends the scope for sample production, repair and training.
- Moving column design for maximum stability
- Enclosed working space
- Siemens smart line PLC control with grinding cycles
- NC controlled Y-/Z-axes driven by servo motors
- User friendly HMI with touchscreen
- Electronic hand wheel for Y-/Z-axes
Detail
- Surface Grinding Machine
- The massive, heavily ribbed cross-bed machine frame with traversing column and horizontal spindle is extremely rigid even under heaviest workpiece loads
- The large work area allows machining of single workpieces with large surface areas or machining of several workpieces in one setup
- The workspace is protected by an easily accessible enclosure

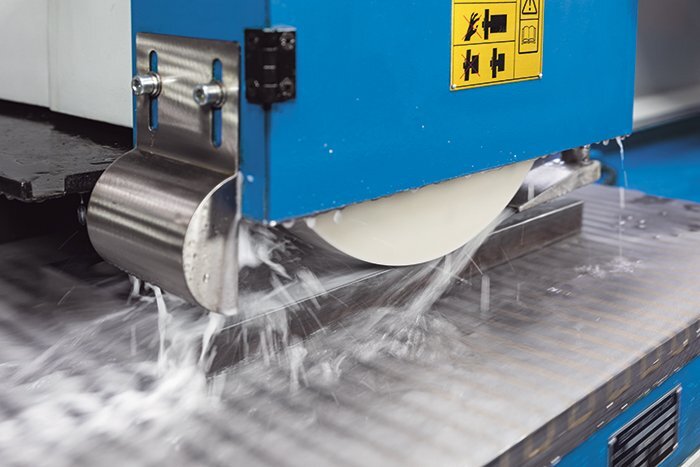

- A high-performance cooling system is included in the standard equipment of this series
- Grinding cycles for automatic face and groove grinding are accessible and editable via touchscreen
- Preloaded ball screws and powerful servo-motors on Y and X ensure high precision and repeatability during grinding wheel feeds
- An electronic hand-wheel for Y- and Z-axis simplifies setup and manual positioning of the grinding spindle
- If set to Auto mode, the user-defined roughing and finishing parameters, number of spark-out strokes, and return to zero are automatically processed
- Large grinding spindle, dynamically balanced, completely sealed with permanent lubrication
- Preloaded precision-bearings ensure maximum grinding performance and high reliability over many production hours
- Extremely quiet operation and minimal heat build-up for optimum work results under continuous operating conditions
- The hydraulic linear table feed is infinitely variable, maintains a constant speed with smooth travel direction reversals
- External hydraulic unit with oil cooler unit ensures perfect temperature stability
- Large magnetic chucks for torsion-free clamping across the entire work surface are included in the standard equipment
- The modern control also ensures reliable operation with firm holding forces and high-grade degaussing
Siemens Touchscreen
Technical Details
| WORKING AREA | |
|---|---|
| Table dimensions | 500 mm x 1000 mm |
| Spindle center-to-table distance | 600 mm |
| Table load capacity (max.) | 700 kg |
| Magnetic chuck height | 110 mm |
| Dimensions magnetic clamping plate | 500 mm x 1000 mm |
| Number of magnetic chucks | 1 positions |
| TRAVELS | |
|---|---|
| Travel X-axis | 1000 mm |
| Travel Y-axis | 500 mm |
| FEED | |
|---|---|
| Hydr. feed X-axis | 5 m/min - 25 m/min |
| Feed Y-axis | 50 mm/min - 500 mm/min |
| Feed depth, Y-axis | 0,005 mm - 0,05 mm |
| Feed Z-axis | 50 mm/min - 600 mm/min |
| Automatic Z-axis feed | 0 mm/min - 30 mm/min |
| GRINDING WHEEL | |
|---|---|
| Grinding wheels dimensions (length x width) | 355 mm x 40 mm x 127 mm |
| Speed | 1450 1/min |
| DRIVE CAPACITY | |
|---|---|
| Motor rating main drive | 7,5 kW |
| Hydraulic motor rating | 3 kW |
| Y-axis servo motor | 0,5 kW |
| Z-axis servo motor | 2 kW |
| MEASURES AND WEIGHTS | |
|---|---|
| Overall dimensions (length x width x height) | 4,5 m x 2,65 m x 2,7 m |
| Weight | 5500 kg |
Standard Equipment
2-axis position indicator
Electronic Handwheel for Y Z Axis
grinding wheel flange
workspace enclosure
coolant system
diamond dresser stand (without diamond)
balancing station
balancing shaft
LED work lamp
magnetic clamping plate
adjustment screws
operating tools
operator manual
Siemens PLC-control with Touchscreen
grinding wheel
automatic central lubrication
Optional Equipment
Please contact us if any of the optional equipment is of interest for further information
Operator Training
Operator training available in showroom subject to quotation prior to delivery.
Email us to outline your needs.
Shipping
Fully inclusive shipping rates covering transportation , import customs documentation, duties quoted
for inclusion at time of order for UK mainland sites. Northern Ireland destinations, Islands and other remote
sites should seek advice prior to order via email. Clients will be responsible for their own site offload
and siting at point of use.
Installation Assistance
We will be pleased to offer a detailed quotation to cover this aspect of your investment subject to
being forwarded full details of site postcode, access, site conditions and floorspace availability.
Knuth technicians are busy worldwide and have experience in a wide variety of industrial facilities.
We are also likely to request provision of cranes, fork lift assistance etc by our clients as required.
Finance Availability
Looking to finance your equipment?We have access to a variety of funding sources who will look sympathetically
at requests for funding finance.
These include leading merchant banks such as asset finance specialists Close Brothers and Lombard.
The financial services division of Siemens will consider HP on the investment. Subject to Status.
On an investment of this nature with a long delivery lead time we can also look at providing a staged payment schedule.
We will confirm this with you at time of order.
