Knuth HPS 85 H Hydraulic Structural Steel Cutters ( Part No. 131183) Universal machining on up to 5 work stations: Punching-Cutting-Notching
Knuth HPS 85 H Hydraulic Structural Steel Cutters
( Part No. 131183)
Universal machining on up to 5 work stations: Punching-Cutting-NotchingEx Stock Availability, 4 weeks, Subject to No Prior Sales.
Highlights
HPS H Series Hydraulic Structural Steel Cutters
The hydraulic profile steel shears of the HPS H series cut and punch flat steel, rods and profiles extremely precisely and efficiently. Section steel cutters like these are mainly used in metalworking shops, repair shops and in vehicle construction. As a one- or two-cylinder construction, the construction convinces with multifunctionality. It combines flat steel shears, notcher, hole punch and profile steel shears in one machine. The hole punch of the HPS series works with common punches and matrices, which expands the range of use of the machines.
Range
HPS 45 H Rated 45 tons press force / Single Cylinder
HPS 60 H Rated 60 tons press force / Single Cylinder
HPS 65 H Rated 65 tons press force / Double Cylinder
HPS 85 H Rated 85 tons press force / Double Cylinder
HPS 115 H Rated 115 tons press force / Double Cylinder
HPS 175 H Rated 175 tons press force / Double Cylinder

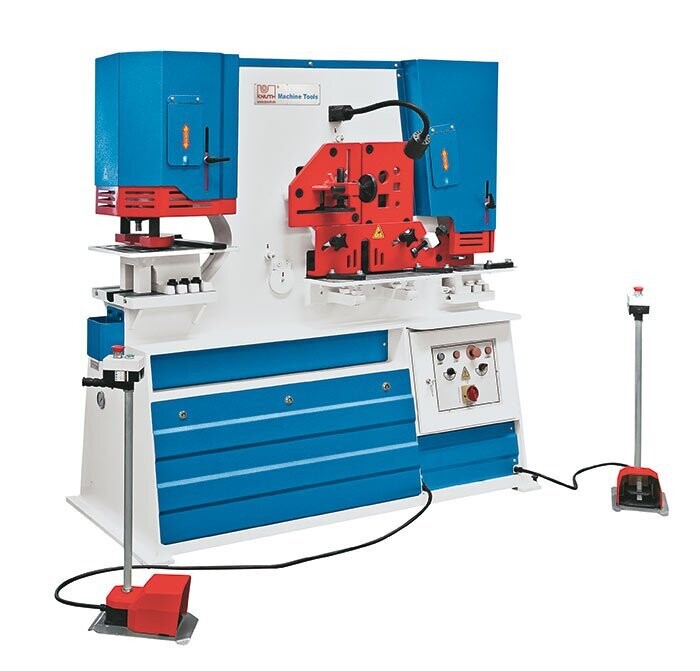

HPS 85 H Hydraulic Structural Steel Cutter
The hydraulic profile steel shears of the HPS H series cut and punch flat steel, rods and profiles extremely precisely and efficiently. Section steel cutters like these are mainly used in metalworking shops, repair shops and in vehicle construction. As a one- or two-cylinder construction, the construction convinces with multifunctionality. It combines flat steel shears, notcher, hole punch and profile steel shears in one machine. The hole punch of the HPS series works with common punches and matrices, which expands the range of use of the machines.
Flat steel station
- For strip steel, flat steel, wide flat steel
- Table with angle and length stop
- Adjustable hold down
- Bottom knife with 4 cutting edges
Angle steel station
- For angle steel profiles
- Cutting angles 90° and 45°
- Adjustable material guide plate
Steel bar station
- For round and square steel
- Stable material management
Backgauge
- With pivoting boom
- Can be used at the flat, angle and bar steel stations

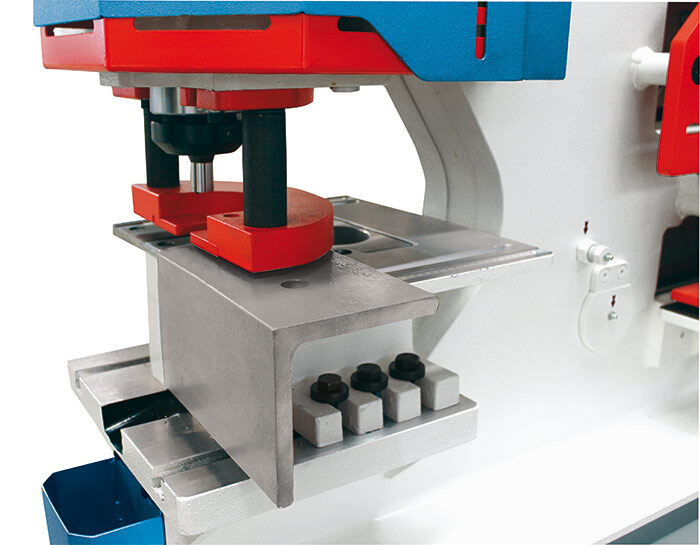

Hole punching station
- Punching round and oblong holes in sheet metal, flat and channel steel
- Table with adjustable angle stops
- Stepless stroke adjustment
- Quality tools from Kingsland
- Hydraulic overload protection
Notching station
- Stable support table with adjustable stops
Technical Details
| WORKSPACE | |
|---|---|
| Number of hydraulic cylinders | 2 pieces |
| HOLE PUNCH | |
|---|---|
| print performance | 85t |
| diameter x thickness | 57mm x 12mm |
| unloading | 355mm |
| hub | 80mm |
| Number of strokes (at 20mm stroke) | 25 hrs/min |
| working height | 1070mm |
| Punching capacity (max.) | 33mm x 20mm |
| STEEL SCISSORS | |
|---|---|
| Cutting capacity flat (max. width) | 480mm x 15mm |
| Cutting capacity flat (max. thickness) | 380mm x 20mm |
| knife length | 485mm |
| cutting performance round | 50mm |
| Cutting performance square | 50mm |
| Working height of steel scissors | 930mm |
| PROFILE SCISSORS | |
|---|---|
| Cutting capacity 90° | 150mm x 150mm x 15mm |
| Cutting capacity 45° | 80mm x 8mm |
| Working height profile scissors | 1190mm |
| RELEASE DEVICE | |
|---|---|
| broad | 52mm |
| sheet thickness (max.) | 13mm |
| depth | 100mm |
| DRIVE POWER | |
|---|---|
| Engine power hydraulic pump | 7.5kW |
| MASS AND WEIGHT | |
|---|---|
| Dimensions (length x width x height) | 1.87m x 0.77m x 1.89m |
| Weight | 2250 kg |
Standard Equipment
Punch holder (easily interchangeable)
Punch and die
Angle cutting knife
Flat steel cutting knife
Notching knife
Solid steel cutting knife
Electric back gauge with automatic cut (1,000mm)
Foot pedal with emergency stop switch
Hook wrench
Work light
Optional Equipment
Cutting blade for UPN profiles for HPS 85 H
SKU: 253588
Contact us via email for price and delivery details of this option.
