Knuth KB 32 SFV Pro Column Drilling Machine. (Part No. 170464 ) High quality column drill press for industrial applications
Knuth KB 32 SFV Pro Column Drilling Machine
(Part No. 170464 )
High quality column drill press for industrial applications
Availability. Ex Stock. 4 weeks to site. Subject to no prior sales.
Highlights
Knuth KB 32 SFV Pro Column Drilling Machine.
The KB SFV Pro Series Drill Presses are the newest versions of the robust, streamlined drill presses with automatic feeds. This series is especially suited for single part productions and manual series production in workshops and industrial operations. These are high-quality machines, and the infinitely variable drive is virtually maintenance-free. The control panel features a touchscreen, so all functions and options are easily accessible.
- Automatic feed
- Touchscreen
- Thread cutting unit
Detail
Ideal for drilling, countersinking, reaming and tapping
- Base, column, table and gear head are made of premium high-quality cast iron
- Modern design, high-quality cast-iron, and excellent workmanship combined with superior rigidity, function and appearance
- Heavy, precision-ground work table with diagonal T-slots
- Large base plate with ground setup area and parallel T-slots
- Spindle shank and spindle are hardened and ground
- Robust, low-maintenance belt-driven spindle drive
- High-performance coolant system integrated in the machine base
- The standard LED work light is integrated in the drill head for maximum protection and ideal lighting

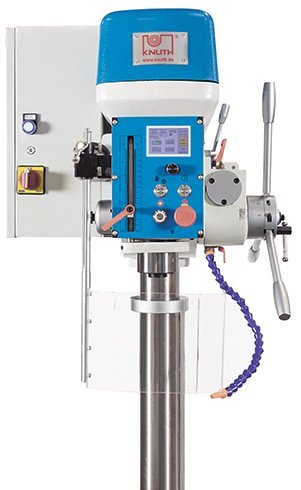

Electronically Controlled Quill Feed
- The color touchscreen conveniently displays all functions and features a rugged, resistant touch panel
- The spindle speed can be controlled infinitely variable at the display and is easy to read
- The automatic quill feed can also be infinitely adjusted and read at the display
- The depth stop for automatic feed is set mechanically via a robust clamping mechanism
- If the thread cutting function is enabled, the spindle rotation will automatically reverse upon reaching the set depth
Technical Details
| WORKING AREA | |
|---|---|
| Drilling capacity | 32 mm |
| Table set up area | 330 mm x 330 mm |
| Table load capacity | 50 kg |
| Tapping capacity, steel | M24 |
| Throat | 245 mm |
| Spindle nose-to-table surface distance | 800 mm |
| Quill stroke | 150 mm |
| Column diameter | 100 mm |
| Spindle nose-to-foot distance | 1235 mm |
| HEADSTOCK | |
|---|---|
| Speed range | 140 1/min - 2250 1/min |
| Spindle mount | MT 3 |
| FEED | |
|---|---|
| Quill feed | 24 mm/R - 242 mm/R |
| DRIVE CAPACITY | |
|---|---|
| Motor rating main drive | 1,5 kW |
| Motor rating coolant pump | 0,16 kW |
| WEIGHTS & MEASURES | |
|---|---|
| Overall dimensions( l x w x h) | 0.9m x 0.6m x1.9m |
| Weight | 310 kg |
Standard Equipment
touchscreen control panel
automatic quill feed
LED work lamp
coolant system
drill chuck
tool-holder bits
drill press vise
tapping unit
operating tools
operator manual
Options
Wide range of optional equipment available for this machine including
Contact us via Email for price details
