Knuth KMT B Series - Guillotine Shear ( 4 Size Options)
Knuth KMT B Series - Guillotine Shear
Ideal for processing long or thick sheet metal in metalworking workshops.
4 Size Options Available / Normal Stock Levels 15 - 20 Units
3 - 4 Weeks Lead Time To UK/ Irish Mainland Sites
Highlights
The KMT B series is ideal for processing long or thick sheet metal in metalworking shops, for repairs and in individual production. The guillotine shears with motor drive have a modern, high-quality and very stable construction. The guided cutter bars also enable cuts with little twist in the workpiece. The cutting length can be precisely positioned manually on the backgauge.
- Solid steel weldment
- Rugged long support arms
- Mobile control unit with foot switch
- Manual back gauge with counter (back-of-machine operation)
Range Summary
1/ Knuth KMT B 1253 - Guillotine Shear - 0.8 mm- 3 mm MS Plate x 1250 mm Working Length

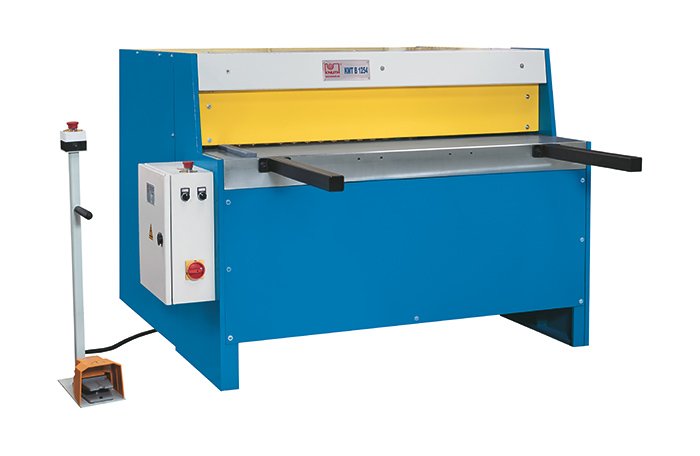

2/ Knuth KMT B 1254 - Guillotine Shear - 0.8 mm- 4 mm MS Plate x 1250 mm Working Length
3/ Knuth KMT B 2052 - Guillotine Shear - 0.8 mm- 2 mm MS Plate x 2050 mm Working Length
4/ Knuth KMT B 2053 - Guillotine Shear - 0.8 mm- 3 mm MS Plate x 2050 mm Working Length
Product Detail
Machine Frame and Drive System
- The machine frame is made of a rigid, solid steel weldment
- A rubber-coated hold-down automatically fixates the plate
- A small knife angle ensures cut accuracy
Material Support

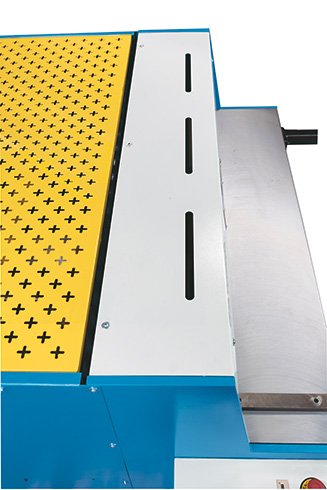

- The rigid side angle stop simplifies alignment of the plate to the cut line
- Rugged support arms ensure a good hold of large plates on the support table
Operation and Ergonomics
- Illuminated cut line ensures good visibility of marking
- The mobile control unit features a foot switch, so the operator has both hands free

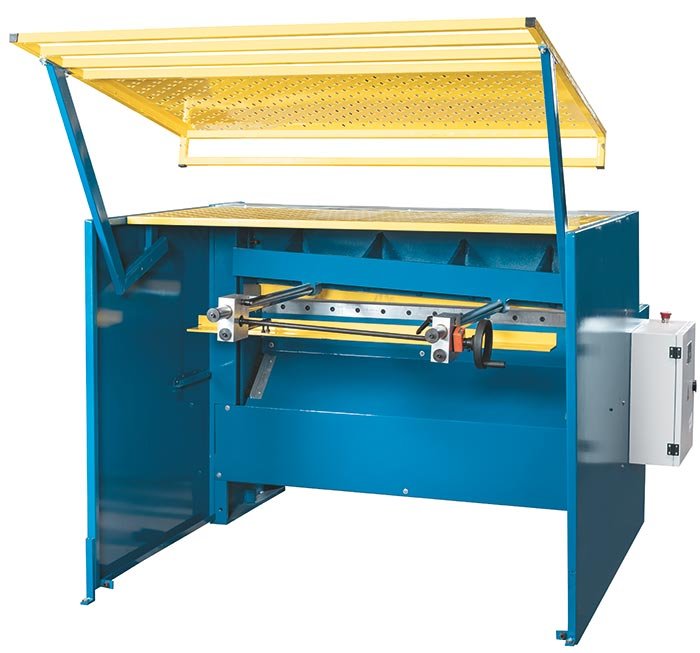

Back Gauge

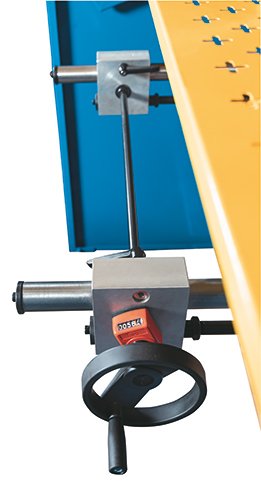

- Manual back gauge with counter
- The back gauge is robust and rigid and can handle any challenges in everyday operations

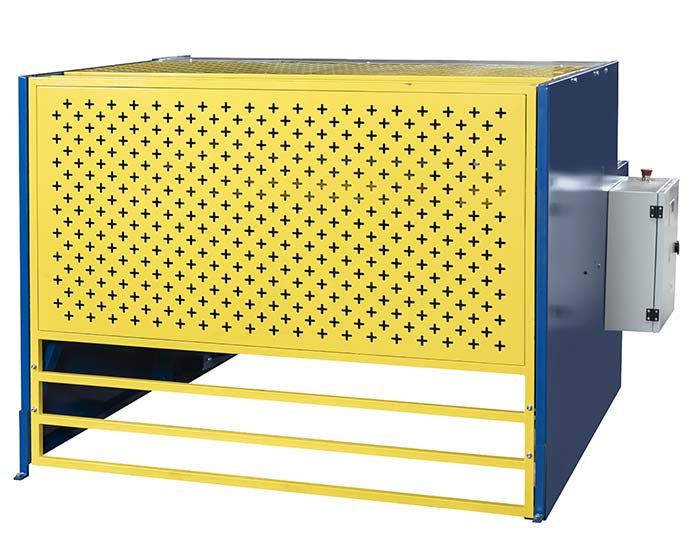

- The work area at the back gauge is covered with safety panels
Technical Details
1/ Knuth KMT B 1253 - Guillotine Shear - 0.8 mm-3 mm MS Plate x 1250 mm Working Length
| WORKING AREA | |
|---|---|
| Working length | 1250 mm |
| Cutting angle | 2 deg |
| Strokes per minute (automatic mode) | 30 H/min |
| Knife length | 1350 mm |
| Work table height | 830 mm |
| Support arms | 600 mm |
| Number of support arms | 2 positions |
| BACK GAUGE | |
|---|---|
| Rear stop | 630 mm |
| CUTTING CAPACITIES | |
|---|---|
| Plate thickness (max.) - 450 N/mm² | 0,8 mm - 3 mm |
| DRIVE CAPACITY | |
|---|---|
| Motor rating main drive | 3 kW |
| MEASURES AND WEIGHTS | |
|---|---|
| Overall dimensions (length x width x height) | 1,69 m x 1,48 m x 1,1 m |
| Weight | 850 kg |
| WORKING AREA | |
|---|---|
| Working length | 1250 mm |
| Cutting angle | 2,4 deg |
| Strokes per minute (automatic mode) | 30 H/min |
| Knife length | 1350 mm |
| Work table height | 830 mm |
| Support arms | 600 mm |
| Number of support arms | 2 positions |
| BACK GAUGE | |
|---|---|
| Rear stop | 630 mm |
| CUTTING CAPACITIES | |
|---|---|
| Plate thickness (max.) - 450 N/mm² | 0,8 mm - 4 mm |
| DRIVE CAPACITY | |
|---|---|
| Motor rating main drive | 4 kW |
| MEASURES AND WEIGHTS | |
|---|---|
| Overall dimensions (length x width x height) | 1,72 m x 1,6 m x 1,19 m |
| Weight | 1185 kg |
| WORKING AREA | |
|---|---|
| Working length | 2050 mm |
| Cutting angle | 2 deg |
| Strokes per minute (automatic mode) | 30 H/min |
| Knife length | 2100 mm |
| Work table height | 830 mm |
| Support arms | 600 mm |
| Number of support arms | 3 positions |
| BACK GAUGE | |
|---|---|
| Rear stop | 630 mm |
| CUTTING CAPACITIES | |
|---|---|
| Plate thickness (max.) - 450 N/mm² | 0,8 mm - 2 mm |
| DRIVE CAPACITY | |
|---|---|
| Motor rating main drive | 3 kW |
| MEASURES AND WEIGHTS | |
|---|---|
| Overall dimensions (length x width x height) | 2,5 m x 1,67 m x 1,1 m |
| Weight | 1300 kg |

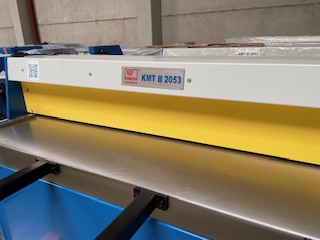

4/ Knuth KMT B 2053 - Guillotine Shear - 0.8 mm-3 mm MS Plate x 2050 mm Working Length
| WORKING AREA | |
|---|---|
| Working length | 2050 mm |
| Cutting angle | 2 deg |
| Strokes per minute (automatic mode) | 30 H/min |
| Knife length | 2100 mm |
| Work table height | 830 mm |
| Support arms | 600 mm |
| Number of support arms | 3 positions |
| BACK GAUGE | |
|---|---|
| Rear stop | 630 mm |
| CUTTING CAPACITIES | |
|---|---|
| Plate thickness (max.) - 450 N/mm² | 0,8 mm - 3 mm |
| DRIVE CAPACITY | |
|---|---|
| Motor rating main drive | 4 kW |
| MEASURES AND WEIGHTS | |
|---|---|
| Overall dimensions (length x width x height) | 2,5 m x 1,6 m x 1,19 m |
| Weight | 1520 kg |
KMT B 2052 & KMT B 2053 Feature 3 no. support
bars to the front.
