Knuth KNWP H 100 Hydraulic Workshop Press ( 131772)
£8,297.00
In stock
Product Details
Knuth KNWP 100 Hydraulic Workshop Press
( Part No. 131772 )
Ex stock availability. 3 Weeks lead time to site. Subject to no. prior sales.
Highlights
Knuth KNWP 100 Hydraulic workshop press
- Torsionally rigid welded gantry-style frame made of thick-walled sectional steel
- Heavy-duty design, intended for professional use
- Versatile for many kinds of repair and assembly work
- Finely adjustable press force for trueing axles, supports, shafts, and much more
- Long piston stroke for removing and press-fitting bearings and bushings
- The operator can see the current working pressure on the gauge at all times.
- Motorized hydraulic unit for efficient work
- Work cylinder with smooth horizontal adjustment for easier setup
- Premium components for guaranteed long-lasting reliable operation
Technical Details
| WORKING AREA | |
|---|---|
| Working width | 1020 mm |
| Frame through-hole | 300 mm |
| Pressure force | 100 t |
| Operating pressure (max.) | 400 bar |
| Stroke | 400 mm |
| Forward motion speed | 7,12 mm/s |
| Press speed | 7,12 mm/s |
| Return speed | 13,42 mm/s |
| DRIVE CAPACITY | |
|---|---|
| Motor rating hydraulic pump | 4 kW |
| MEASURES AND WEIGHTS | |
|---|---|
| Hydraulic tank volume | 11 l |
| Weight | 1000 kg |
| Dimensions (L X W X H) | 1600 mm x 850 mm x 2450 mm |

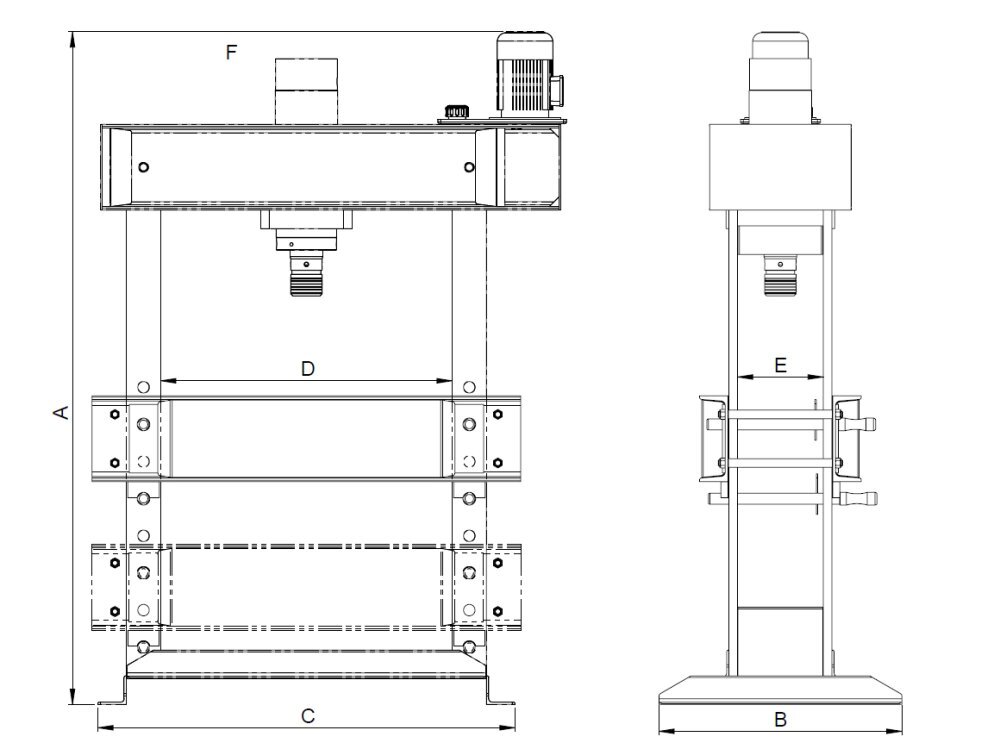

| DIMENSIONS | |
|---|---|
| A | 2450 mm |
| B | 850 mm |
| C | 1260 mm |
| D | 1020 mm |
| E | 300 mm |
| F | 1600 mm |
