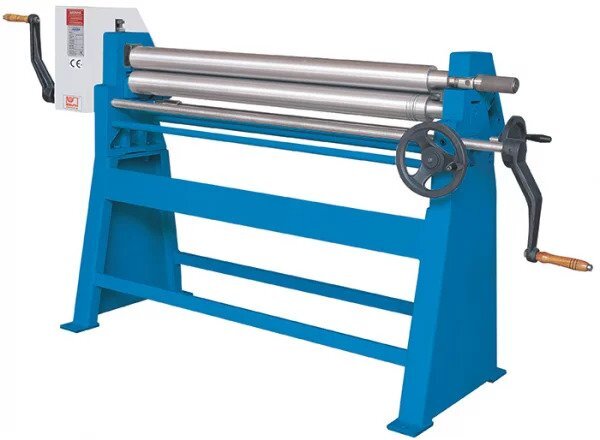

Knuth KRT 20/1.5 Manual Roll Bending Machine ( Part No. 131898) Features hardened rollers with conical bending capability
Knuth KR T 20/1,5 Manual Roll Bending Machine
( Part No. 131898)
Features hardened rollers with conical bending capability
Availability. 8 weeks, subject to no prior sales
Highlights
KR T Series
The KRT series includes manual roll bending machines for repair work and single parts production. These machines are known for their great bending capacity for powerful and controlled forming of sheet metals. The machine features hardened rollers with conical bending capability, and is a robust addition to any metal workshop.
- Asymmetrical structure
- Hardened rollers with wire insertion grooves
- Conical bender
- Range Available
- KR T 10/3.0 1050 mm working length 3.0 mm thickness
- KR T 12/2.5 1270 mm working length 2.5mm thickness
- KR T 15/2.0 1550 mm working length 2.0 mm thickness
- KR T 20/1.5 2050 mm working length 1.5mm thickness ( Quoted Model )
- Clients wanting other machines in the range should contact us for full price and delivery details.
- Knuth KR T 20/1,5 Manual Roll Bending Machine
- The asymmetrical roller arrangement prevents any slipping of sheets in the stretch-bending phase
- The machine frame is made of cast-iron, and the base is made of steel plates
- Hardened rollers, suitable for stainless steel
- An auxiliary gearbox ensures that less effort is needed to operate the hand crank
- The top roller can be pulled out for easy removal of the workpiece
- Bottom and rear roller with wire insertion groove
- Supplied with conical bending feature
- Rear and bottom roller are manually adjustable
Technical Details
| WORKING AREA | |
|---|---|
| Working length | 2050 mm |
| Plate thickness (max.) | 1,5 mm |
| Roll diameter | 95 mm |
| MEASURES AND WEIGHTS | |
|---|---|
| Overall dimensions (length x width x height) | 3,08 m x 0,7 m x 1,25 m |
| Weight | 650 kg |
Standard Equipment
conical bending feature
hardened rollers
wire insert groove
operator instructions
