Knuth NZM Machine vise with pull-down ( Optional Sizes NZM 100, 125, 160, 200 mm Jaw Width)
+3
+2

Knuth NZM Machine vise with pull-down ( Optional Sizes NZM 100, 125, 160, 200 mm Jaw Width)

Store / Precision Machine Tools & Equipment
£162.18
Vise Jaw Width
In stock
Product Details

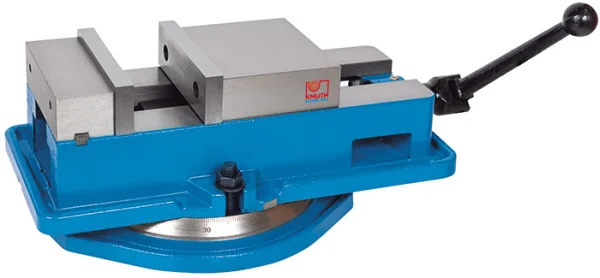

Knuth NZM Machine vise with pull-down

( Optional Sizes NZM 100, 125, 160, 200 mm Jaw Width)



Highlights

Knuth NZM Machine vise with pull-down

( Optional Sizes NZM 100, 125, 160, 200 mm Jaw Width)Machine vises with pull-down system, and with dial

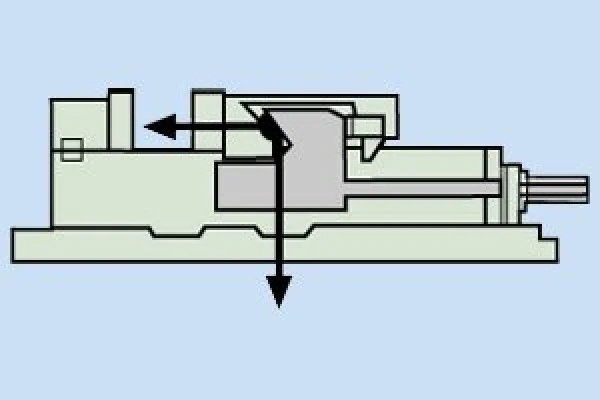

The design of a pull-down vise makes it more difficult to remove clamped material. The movable clamping jaws are pressed against the guide when clamping. This special design makes it easier to clamp flat workpieces.

  • Hardened and precision-ground steel jaws
  • Made of high-quality cast-iron
  • Dial turns 360° and has 1° scale division

Product Details

  • Pull-down system: absolutely secure workpiece hold even during cutting of heavy parts
  • Hardened and precision-ground steel jaws
  • Dial turns 360° and has 1° scale division
  • Parallelism ± 0,03 mm / 100 mm
  • Precise, hardened jaw guides
  • Made of high-quality cast-iron

Technical Details

NZM 100 Machine vise ( 104916 )

Weight 16 kg
Height 118 mm
Clamp width 100 mm
Swivel-base, diameter 160 mm
Jaw width 100 mm
Jaw height 32 mm

NZM 125 Machine vise ( 104918 )

Weight 24 kg
Height 136 mm
Clamp width 125 mm
Swivel-base, diameter 187 mm
Jaw width 125 mm
Jaw height 40 mm

NZM 160 Machine vise ( 104920 )

Weight 34 kg
Height 157 mm
Clamp width 170 mm
Swivel-base, diameter 230 mm
Jaw width 160 mm
Jaw height 45 mm

NZM 200 Machine vise ( 104922 )

Weight 56 kg
Height 179 mm
Clamp width 230 mm
Swivel-base, diameter 268 mm
Jaw width 200 mm
Jaw height 50 mm
