Knuth PFG 2513 Engraving & Milling Machine ( Part No. 171960) Large work area and superior precision and performance
Knuth PFG 2513 Engraving & Milling Machine
( Part No. 171960)
Large work area and superior precision and performance
Availability . 6 months lead time to site. Subject to no prior sales.
Highlights

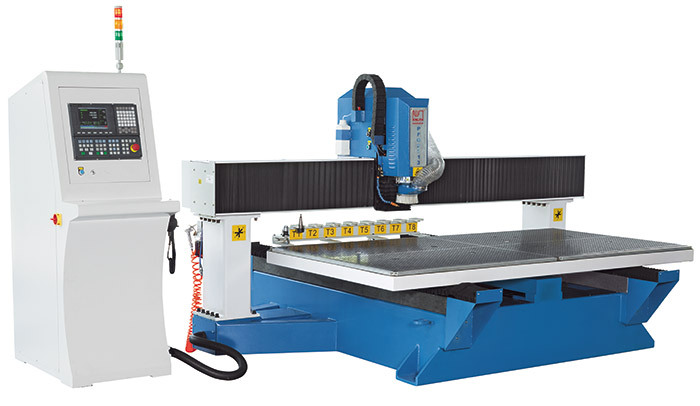

Knuth PFG 2513 Engraving & Milling Machine
The series of PFG engraving machines can mill and engrave large panels made of plastic and non-ferrous metals. A granite machine frame with a fixed portal and a work table that can be positioned in an axis serve as the basis. The workpiece is fixed on the machine table by vacuum. The HSD spindle motor manufactured in Europe has a wide speed range and pneumatic tool clamping for the linear 8-station tool changer. The machines have proven themselves in the production of advertising displays, furniture and sheet metal processing, among other applications.
- Granite machine frame
- Clamping with vacuum table
- 9 kW (12 hp) HSD spindle motor with pneumatic tool clamping
- Linear 8-station tool changers
- Syntec CNC
- Tool length measurement
Detail
- A major advantage of this machine is the heavy construction with fixed gantry and axis-aligned work table
- The use of natural, precision-machined granite for the machine frame ensures maximum accuracy and stability
- This exclusive material provides complete resistance against corrosion, acids and alkaline solutions
- A powerful vacuum pump ensures a firm hold of the workpiece on the machining table
- The high-quality 7,5kW / 9kW HSD spindle motor (made in Europe) provides a wide rpm range and pneumatic tool clamping
- Ceramic bearings at the tool mount and a powerful air cooler provide maintenance-free, highly reliable service
- The linear 8-station tool changer is designed without complex mechanics for short travels and quick tool changes
- All three axes are provided with linear guides and preloaded ball screws for increased accuracy, high precision and excellent rigidity
- Syntec CNC controls are known for their performance and reliability and are used worldwide on premium engraving and machining centers
- Tool length measurements simplify machine configurations, save time and increase production accuracy
- A highly efficient cold-air nozzle delivers precise cooling of tools and workpiece
- The granite machine frame with fixed gantry and axis-aligned work table is precise and extremely robust
Controls & Software
SYNTEC CNC 6MA- controller
- Production history of the last 100 programs
- Block processing speed of more than 300 blocks
- Online functions
- Alarm History up to 200 Alarms
- Windows-based CE Software
- Service interval reminder and machine lock function
- Closed Loop- SYNTEC CNC controller
- Can be interfaced with any Pulse Input based servo drive
- HSHP - high- speed high- precision parameters
Technical Details
| WORKING AREA | |
|---|---|
| Table set up area | 2500 mm x 1300 mm |
| X-axis travel | 2500 mm |
| Y axis travel | 1300 mm |
| Z-axis travel | 200 mm |
| HEADSTOCK | |
|---|---|
| Speed range | 6000 1/min - 24000 1/min |
| Spindle mount | ISO 30 (DIN 69871) |
| FEED | |
|---|---|
| Working speed axe X | 1800 mm/min |
| Working speed axe Y | 1800 mm/min |
| Rapid feed | 10000 mm/min |
| TOOLING | |
|---|---|
| Number of tool stations | 8 positions |
| DRIVE CAPACITY | |
|---|---|
| Main motor rating | 7,5 / 9,0 kW |
| MEASURES AND WEIGHTS | |
|---|---|
| Overall dimensions (length x width x height) | 3,2 m x 2,2 m x 2 m |
| Weight | 2500 kg |
Standard Equipment
8-station tool changer
collet chuck ISO 30 (DIN 69871)
ER collet set ( 3 / 4 / 6 / 8 / 12 mm
tool length measuring device
syntec control
main spindle motor 7.5/9 kW
draw bolt (DIN 69872)
vacuum clamping plate
vacuum pump
cooling air nozzle
operating tools
operator instructions
Optional Equipment
LED Strip 1120 mm SKU: 670606
Knuth Pedigree in Engraving Machines
Knuth have enjoyed a good deal of success with this type of machinery over a number of years.
The current series have proven themselves in the production of advertising displays, furniture and sheet metal processing, among other applications.
An earlier engraving and routing machine from Knuth can be seen in the attached video of the TFGM series.
The current PFG series features a whole host of advances in this field from the company including a granite machine frame with fixed gantry.
Operator Training
Operator training available in showroom subject to quotation
prior to delivery. Email us to outline your needs.
