Knuth Plasma-Jet TrueCut 1530 K SKU : 144038 plus ( Kjellberg Smart Focus 200 Plasma Source 253089 ) World Class Plasma Cutter System with Kjellberg Plasma Source ( 1500 x 3000 Table)
Knuth Plasma-Jet TrueCut 1530 K
SKU : 144038 plus ( Kjellberg Smart Focus 200 Plasma Source 253089 )
Availability 5 months lead time to site. Subject to no prior orders.
Highlights
Knuth Plasma Jet TrueCut K Series

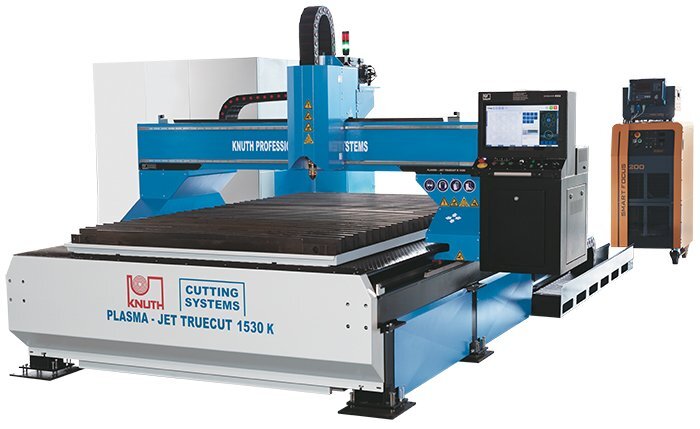

The machines of the Plasma-Jet TrueCut K series are highly specialized cutting systems for the production and one-off production of complex individual parts. Equipped with the latest technology from Eckelmann and Kjellberg and high-quality components from well-known manufacturers, this series is designed for high loads in multi-shift operation. With extensive optional equipment, this series is very versatile and offers tailor-made solutions for specific customer requirements, such as multiple torches, oxy-fuel cutting heads, miter cuts or pipe processing units.
Range Available
Plasma Jet True Cut 1530 K 1500 x 3000 mm long cutting table
Plasma Jet True Cut 4020 K 20 00 x 4000 mm long cutting table
Plasma Jet True Cut 3060 K 3000 x 6000 mm long cutting table
Plasma Sources Available
Discuss with Traxx Industries Limited your desired Plasma Source
Kjellberg Plasma Sources Approved For Use On Knuth True Cut K Series Range
Quoted Model
Knuth Plasma-Jet TrueCut 1530 K
SKU : 144038 plus ( Kjellberg Smart Focus 200 Plasma Source 253089 )
Product Details

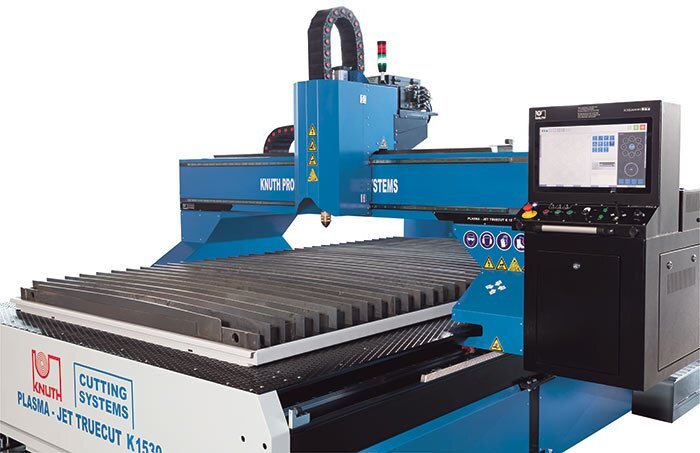

Construction
- Stand-alone cutter table features rigid steel construction for high load capacity
- Stand-alone table eliminates thermal and mechanical influences on the plasma cutter system

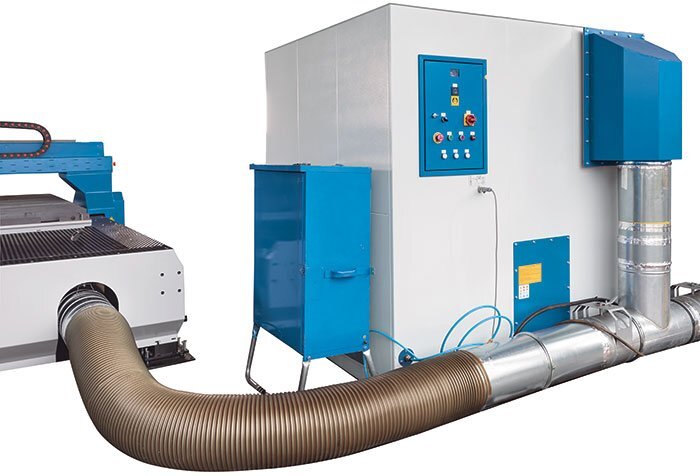

- Table is prepared for dust collection system, being equipped with electro-pneumatically actuated suction flaps for an efficient fume extraction of the segment where the cutting process is momentary in action
Transmission and drives
- Dynamic AC servo drives from Panasonic on all axes with maintenance-free, zero-backlash planetary gears
- Low-wear and low-maintenance helical gears are designed for continuous operation
- Linear guide ways from on all axes, designed for long life and smooth motion even at high speeds. The width of linear guides on X/Y axes is 20/30 mm
- The structure of the machine and the selection of components are designed to enable multi-shift operation
Cutting head
- Z axis with ball screw transmission and servo-driven automatic torch height control
- Quick-coupling for cutter head allows quick head exchanges for reduced tooling time
- Use the existing cutting parameters stored in the control to find the optimum cut
- Optimum bed speed even for fine contours and tight radii
- Available with 5-axis cutter head, tube cutter, and many more options
Control
- CNC controller from Eckelmann
- The Eckelmann IBE software is delivered as standard.
Please select the plasma source with the required power.
- Smart Focus 130 – maximum cutting capacity 40 mm, plunge-cuts 25 mm, recommended range 1-32 mm
- Smart Focus 170 – maximum cutting capacity 50mm, plunge-cuts 30mm, recommended range 1-35 mm
- Smart Focus 200 – maximum cutting capacity 60 mm, plunge-cuts 30 mm, recommended range 1-40 mm ( Quoted Plasma Source )
- Smart Focus 300 – maximum cutting capacity 80 mm, plunge-cuts 40 mm, recommended range 1-60 mm
- Smart Focus 400 – maximum cutting capacity 100 mm, plunge-cuts 50 mm, recommended range for stainless steel 1-70 mm
- Q 1500 – maximum cutting capacity 60 mm, plunge-cuts 30 mm, recommended range 0,5–40 mm
- Q 3000 – maximum cutting capacity 80mm, plunge-cuts 50mm, recommended range 0,5 – 60 mm
Note: All specified cutting and piercing depths are dependent on the material as well as the cutting technology and guide system
Controls & Software
Eckelmann CNC-Unit
Eckelmann E°EXC 880 E°CUT ECO
- These application optimized CNC controls have extremely short cycle times, making them ideal for highly dynamic applications
- The HMI offers a clearly structured design with greater user comfort thanks to its simplicity, yet providing intuitive access to all functions of the machine
Technical Details
| WORKING AREA | |
|---|---|
| Cutting Width | 1500 mm |
| Cutting length | 3000 mm |
| Table height | 700 mm |
| Table load capacity | 520 kg/m2 |
| Rapid feed | 18000 mm/min |
| Plasma source | Kjellberg |
| MEASURES AND WEIGHTS | |
|---|---|
| Weight | 3100 kg |
Plasma Source Technical Details
Kjellberg Smart Focus 200
Cutting capacity in production 1- 40 mm
Maximum 60 mm
Plunge Cut 30 mm
Current Capacity 35 - 200 A
Gases O2,Ar/H2,N2,Air
Weight 388 kg
Standard Equipment
table prepared for filter system (automatic closure control )
panasonic Servomotors and drivers
automatic torch height control from Eckelmann
cutting torch with magnetic coupling and crash sensor
Eckelmann CNC-Unit
19” touchscreen by ELO
A-Modul from Beckhoff
laser pointer
Eckelmann IBE Software cncCUT Nest
Optional Equipment
A wide range of customised solutions is available. Please contact us for further details, price and delivery information.
Operator Training
Operator training available in showroom subject to quotation prior to delivery.
Email us to outline your needs.
Shipping
Fully inclusive shipping rates covering transportation , import customs documentation, duties quoted
for inclusion at time of order for UK mainland sites. Northern Ireland destinations, Islands and other remote
sites should seek advice prior to order via email. Clients will be responsible for their own site offload
and siting at point of use.
Installation Assistance
We will be pleased to offer a detailed quotation to cover this aspect of your investment subject to
being forwarded full details of site postcode, access, site conditions and floorspace availability.
Knuth technicians are busy worldwide and have experience in a wide variety of industrial facilities.
We are also likely to request provision of cranes, fork lift assistance etc by our clients as required.
Finance Availability
Looking to finance your equipment?
We have access to a variety of funding sources who will look sympathetically
at requests for funding finance.
These include leading merchant banks such as asset finance specialists Close Brothers and Lombard.
The financial services division of Siemens will consider HP on the investment. Subject to Status.
On an investment of this nature with a long delivery lead time we can also look at providing a staged payment schedule.
We will confirm this with you at time of order.
