Knuth R 32 Basic Radial Drill Press ( Part No. 101522) Rigid radial drill press with an unbeatable price/performance ratio.
Knuth R 32 Basic Radial Drill Press
( Part No. 101522)
Availability. Currently 10 weeks to site from receipt of order. Subject to no prior sales.
Highlights

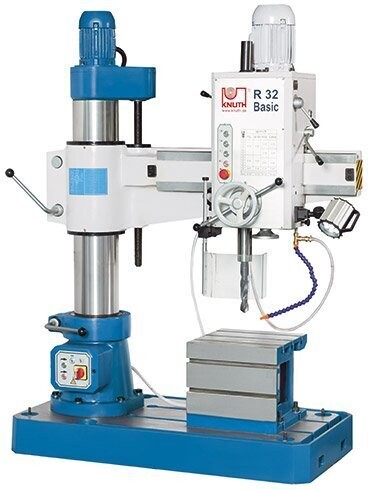

Knuth R 32 Basic Radial Drill Press
As an entry-level model, this radial drilling machine offers 32 mm (1.26 in) drilling capacity, 820 mm (32.28 in) throat and 860 mm (33.86 in) processing height. The model belongs to our R Basic series of classic radial drilling machines with manually switched gears and manual clamps. With their heavy weight they guarantee the best stability with an excellent price-performance ratio. Due to the easy handling of large workpieces and the robust design, we recommend these models for use in workshops and steel construction, among other applications. A cube table is part of the standard equipment for smaller workpieces.
- Easy positioning on all axes

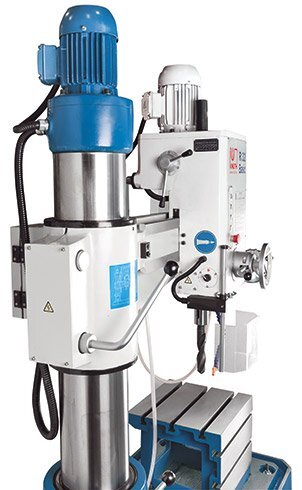

- Motorized arm height adjustment
- Spindle made of premium hardened steel
- Mechanical clamping for head, column, and arm
Detail
- For drilling, reaming and tapping
- Machine frame made of high-quality fine-grain cast-iron with heavy ribbing to ensure maximum reduction of vibrations
- Precision-ground gears for quiet operation

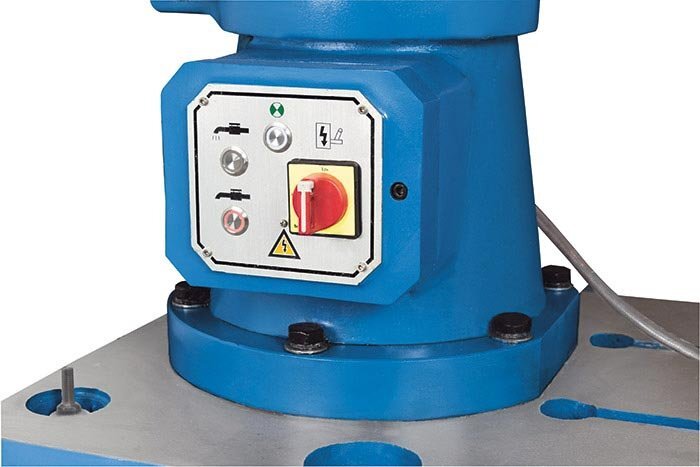

- Practical layout of electrical and mechanical controls at the headstock for easy operation
- Motorized arm height adjustment
- The spindle is made of high-quality hardened steel of consistent accuracy
- Mechanical clamping for head, column and arm
Technical Details
| WORKING AREA | |
|---|---|
| Drilling capacity | 32 mm |
| Throat | 320 mm - 820 mm |
| Spindle nose-to-table surface distance | 320 mm - 860 mm |
| Quill stroke | 240 mm |
| Column diameter | 200 mm |
| Machine table dimensions | 1370 mm x 700 mm x 160 mm |
| Cube table dimensions | 400 mm x 400 mm x 350 mm |
| HEADSTOCK | |
|---|---|
| Speed range-stages | 6 |
| Speed range | 75 1/min - 1220 1/min |
| Spindle mount | MK 4 |
| FEED | |
|---|---|
| Feeds | 0,1 mm/R - 0,25 mm/R |
| Feeds-stages | 3 |
| DRIVE CAPACITY | |
|---|---|
| Motor rating main drive | 1,5 kW |
| MEASURES AND WEIGHTS | |
|---|---|
| Overall dimensions (length x width x height) | 1,41 m x 0,72 m x 1,89 m |
| Weight | 1180 kg |
Standard Equipment

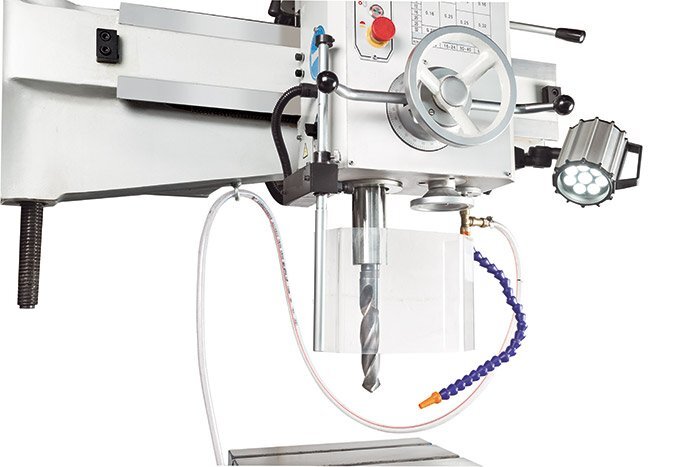

- coolant system
cube table
halogen lights
Optional Equipment
Wide range of tooling options available
Contact us via Email for price details of any tooling options of interest.
Operator Training
Operator training available in showroom subject to quotation
prior to delivery. Email us to outline your needs.
Shipping
Fully inclusive shipping rates covering transportation, import customs documentation, duties
quoted for inclusion at time of order for UK mainland sites. Northern Ireland destinations, Islands
and other remote sites should seek advice prior to order via email. Clients will be responsible for
their own site offload and siting at point of use.
Finance Availability
Looking to finance your equipment?
We have access to a variety of funding sources who will look sympathetically
at requests for funding finance.
These include leading merchant banks such as asset finance specialists Close Brothers and Lombard.
The financial services division of Siemens will consider HP on the investment. Subject to Status.
On an investment of this nature with a long delivery lead time we can also look at providing a staged payment schedule.
We will confirm this with you at time of order.
