Knuth RBM 25/25 Hydraulic 4 Roller Roll Bending Machine ( Part No. 131912) Reliable processing of thick steel plates

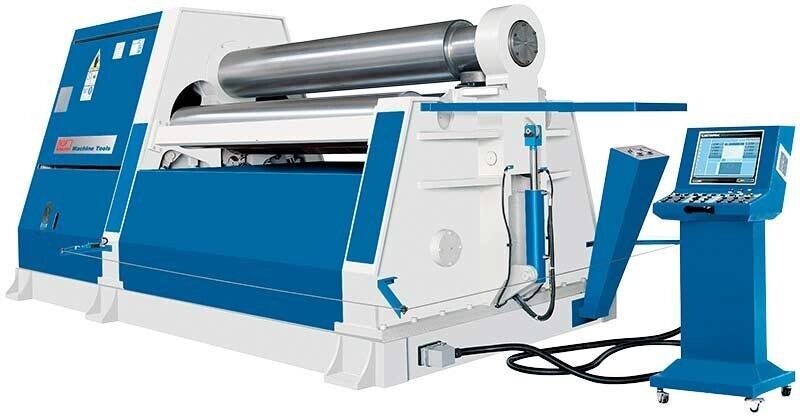

Knuth RBM 25/25 Hydraulic 4 Roller Roll Bending Machine
( Part No. 131912)
Reliable processing of thick steel plates
Availability. 4 months to site, subject to no prior sales
Highlights
Knuth RBM Hydraulic 4 Roller Roll Bending Machine Series

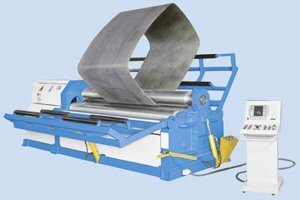

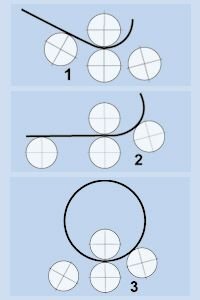

RBM is a series of 4-roll bending machines that are particularly suited for large sheet metal thicknesses. The advantage of this design is that the bending process can be done in one operation, and the operator only has to find one position for the side rolls. With special features such as conical bending that can be controlled via the control panel, the models in this series enable a wide range of applications in shipbuilding, steel and container construction.
Range . 11 models available in the range.
Knuth RBM 25/25 Hydraulic 4 Roller Roll Bending Machine
RBM is a series of 4-roll bending machines that are particularly suited for large sheet metal thicknesses. The advantage of this design is that the bending process can be done in one operation, and the operator only has to find one position for the side rolls. With special features such as conical bending that can be controlled via the control panel, the models in this series enable a wide range of applications in shipbuilding, steel and container construction.
- Bending solution for thick materials
- 4 rollers with symmetrical structure
- Hydraulic roller drive
- Hardened rollers

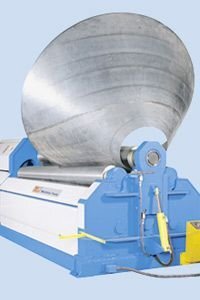

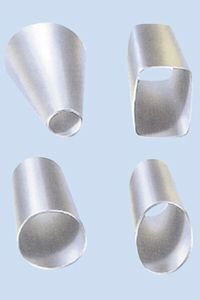

- Conical bender
Product Detail
- Massive machine frame, based on an advanced design and many years of experience
- Hydraulic safety chuck for easy removal of the part
- Roller adjustments (feed and adjustment of parallelism and taper) at the control panel
- All rollers are hardened and equipped with precision bearings
- Hydraulically driven top and bottom rollers
- Hydraulic components from Parker / Bosch
- Electric components from Siemens / Telemanique
- Minimum bending diameter = 3 x Ø of the top roller
Technical Details
| WORKING AREA | |
|---|---|
| Working length | 2600 mm |
| Plate thickness (max.) | 25 mm |
| Max. plate thickness for bending | 20 mm |
| Upper roll diameter | 360 mm |
| Lower roll diameter | 330 mm |
| Side roll diameter | 250 mm |
| DRIVE CAPACITY | |
|---|---|
| Motor rating hydraulic pump | 18,5 kW |
| MEASURES AND WEIGHTS | |
|---|---|
| Overall dimensions (length x width x height) | 5,04 m x 1,9 m x 1,68 m |
| Weight | 11800 kg |
Standard Equipment
hardened rollers
conical bending feature
digital display
control panel
operator manual
Optional Equipment
Tooling options available
Contact us via Email for price details
Operator Training
Operator training available in showroom subject to quotation
prior to delivery. Email us to outline your needs.
