Knuth SBS E 2020/2,0 Manual Folding Machine ( Part No. 131367) Heavy manual folding machine with segmented upper tool
Knuth SBS E 2020/2,0 Manual Folding Machine
( Part No. 131367)
Heavy manual folding machine with segmented upper toolEx Stock Availability, 2/3 weeks lead time to site, Subject to no prior sales.
Highlights
SBS E Series Manual Folding Machines
The manual folding machines of the SBS E-series with their heavy and robust design are designed for bending long metal sheets of up to 3000 mm (118 in.) in length. Due to its angle stop, this series can also be used for the production of small series.
- Segmented upper tool
- Upper beam with hand-lever
Range - 3 models available
SBS E 2020/2.0 2020 mm width capacity 2 mm thickness mild steel ( Quoted Model )
SBS E 2540/1.5 2540 mm width capacity 1.5 mm thickness mild steel
SBS E 3020/1.2 3020 mm width capacity 1.2 mm thickness mild steel
Contact us for price and delivery details if any other model of interest.

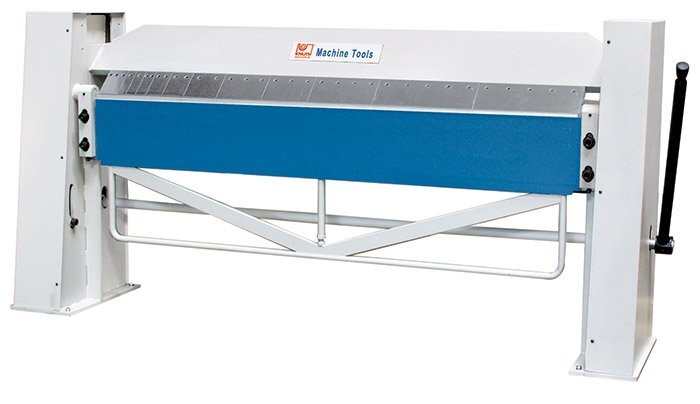

SBS E 2020/2.0 Manual Folding Machine
- The series has a rugged, very robust design and is impressively easy to handle while delivering maximum accuracy.
- All models of this series have a hardened, segmented male die.
- Segments can be removed individually, so all sides of the basin can be bent
- Adjustable angular stop for the production of angular small batches
- A manually adjustable rear gauge is available as an option
Technical Details
| WORKING AREA | |
|---|---|
| Working length | 2020 mm |
| Plate thickness (max.) | 2 mm |
| Working height | 920 mm |
| MALE DIE | |
|---|---|
| Stroke | 120 mm |
| BENDING DIE | |
|---|---|
| Bending angle (max.) | 135 deg |
| Adjustment range for A axis | 15 mm |
| MEASURES AND WEIGHTS | |
|---|---|
| Overall dimensions (length x width x height) | 2,8 m x 0,85 m x 1,3 m |
| Weight | 1025 kg |
Standard Equipment
Segmented sharp nose tool type upper die
operator manual
Optional Equipment
manual back gauge SBS E 2020/2,0 SKU: 257386
Contact us for price and delivery details if this optional feature is of interest.
