Knuth SM Universal Tool Grinding Machine c/w Base ( Part No. 102880 ) Universal Tool Grinder for grinding profile forms

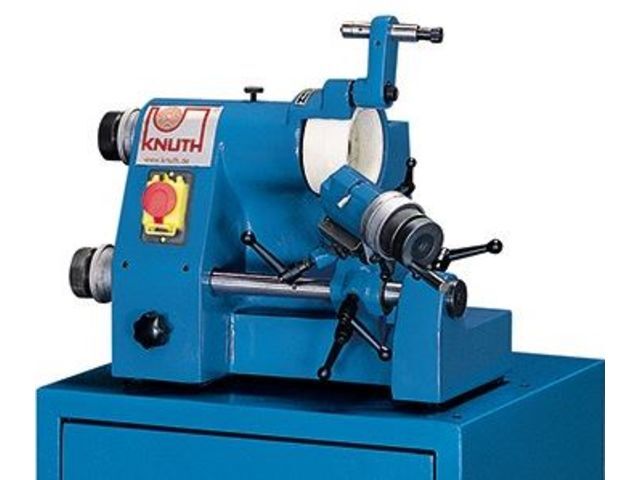

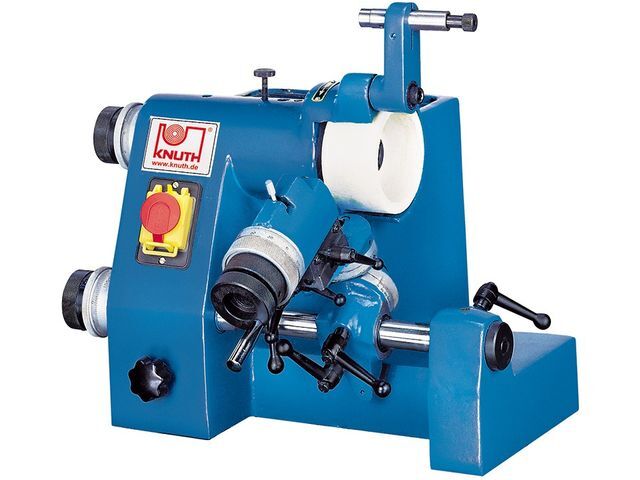

Knuth SM Universal Tool Grinding Machine c/w Base
( Part No. 122880 )
Universal Tool Grinder for grinding profile forms
Ex Stock Availability .Delivery currently 2 weeks from receipt of order.
Highlights
Universal Tool Grinder for grinding profile forms.
Technical Details
| working area | |
| grinding diameter (max.) | 25 mm |
| speed | 5200 rpm |
| travel tool holder | 140 mm |
| collet chuck diameter | 18 mm |
| taper grinding | 0° ~ 180° |
| rear angle | 0° ~ 45 ° |
| hand-wheel rotation, spindle | 8 mm |
| hand-wheel rotation, tool holder | 18 mm |
| drive capacity | |
| motor rating | 0,18 kW |
| supply voltage | 400 V |
| measures and weights | |
| grinding wheels dimensions | 100x50x20 mm |
| overall dimensions | 450x400x350 mm |
| machine weight | 56 kg |
| base weight | 17 kg |
Standard Equipment
base,
wheel mount,
grinding wheel,
operating tools,
manual,
spare parts list,
test certificate,
collets 3, 4, 6, 8, 10 mm.
Optional Equipment
Diamond wheel SM SKU 102861
Collet 2.5 SM SKU 102864
Grinding Wheel Flange SM 102874
Collets for SM
|
| Cup Wheel / SM |
Shipping
Fully inclusive shipping rates covering transportation , import customs documentation, duties quoted
for inclusion at time of order for UK mainland sites. Northern Ireland destinations, Islands and other remote
sites should seek advice prior to order via email. Clients will be responsible for their own site offload
and siting at point of use.
Installation Assistance
We will be pleased to offer a detailed quotation to cover this aspect of your investment subject to
being forwarded full details of site postcode, access, site conditions and floorspace availability.
Knuth technicians are busy worldwide and have experience in a wide variety of industrial facilities.
We are also likely to request provision of cranes, fork lift assistance etc by our clients as required.
Finance Availability
Looking to finance your equipment?We have access to a variety of funding sources who will look sympathetically
at requests for funding finance.
These include leading merchant banks such as asset finance specialists Close Brothers and Lombard.
The financial services division of Siemens will consider HP on the investment. Subject to Status.
On an investment of this nature with a long delivery lead time we can also look at providing a staged payment schedule.
We will confirm this with you at time of order.
