Knuth Servomill UWF 5 Universal Milling Machine ( Part No. 301254) Servo conventional Knee and Column Milling with Universal Swivel Head
Knuth Servomill UWF 5 Universal Milling Machine
( Part No. 301254)
Servo conventional Knee and Column Milling with Universal Swivel Head
Availability. Currently 4 weeks from receipt of order. Subject to no prior sales.
Highlights

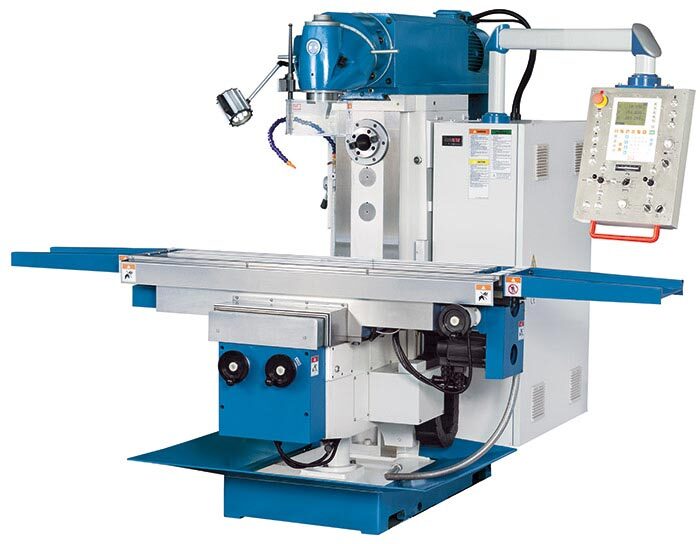

Servomill UWF 5 Universal Milling Machine
The servo-conventional universal milling machine has the latest CNC technology, but can be operated conventionally. In addition to the universal milling head that can be swiveled in two planes, the machine is also equipped with a horizontal spindle and a more powerful main spindle drive. The servo motor feed with electronic handwheels and the additional milling functions make the advantages of CNC technology accessible without programming. With the extensive equipment, this model is ideal for repair shops as well as training and production departments.
- servo-conventional feed technology
- Ball screws in all axes
- Electronic handwheels
- Universal milling head with 2 swivel axes

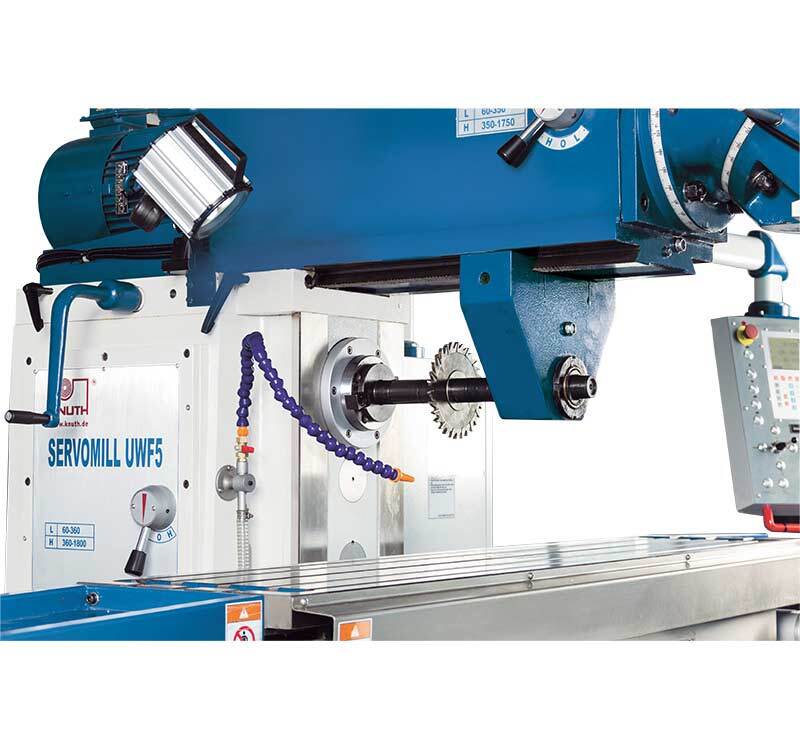

- Horizontal spindle with its own drive
Conventional milling made easier, more precise and more efficient thanks to integrated electronics
- The Servomill machines represent a new generation of conventionally operated milling machines
- It is characterized by ease of use, significantly increased precision and increased processing performance
- The high reliability of all components used and their longevity significantly reduce the maintenance effort and thus ensure increased availability
- Heavy machine frame in cantilever design made of high-strength HT-200 gray cast iron
- Precision-ground guideways, surface-hardened, long-term precise and robust
- The smooth-running, precisely manufactured spindle gears are equipped with hardened and ground gears
- Powerful 7.5 kW horizontal spindles and the heavy-duty design of the upper beam and counter holder enable excellent machining results with long milling arbors
- Servo-conventional drives in all axes, infinitely variable and with rapid rapid traverse
- Ball screws in all axes ensure increased precision and reduced wear in the long term
- Servomill Highlights
- Control developed and manufactured in Germany

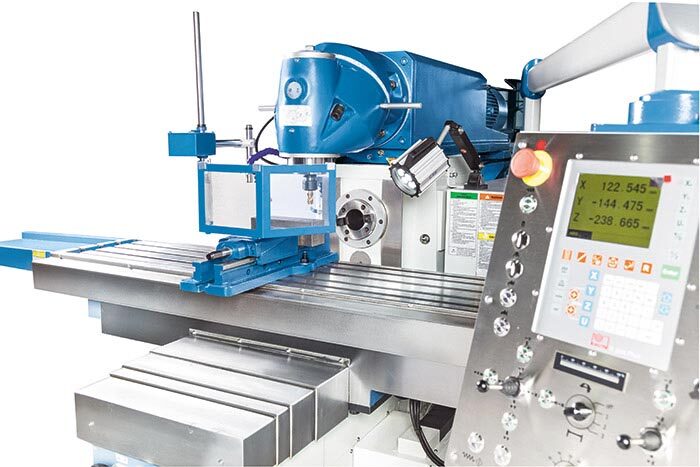

- Positioning control for traversing preselected distances in all axes
- Preloaded ball screws without backlash
- Servo motors in all axes, infinitely variable feed, rapid traverse and speed control
- Electronic spindle load indicator
- Electronic handwheels on all axes
- X, Y and Z axes can be moved using joystick technology
- Integrated position indicator with glass scales
Your Advantages
- Simple: intuitive operation - clear arrangement of the operating elements and clear function
- Automatic feed infinitely adjustable in all axes
- End stops can be set electronically in each axis at the push of a button - 3 stop positions +/- per axis can be saved
- More precise: Operation via electronic handwheels - the axes are moved by high-quality servo drives, which implement your handwheel movements with the precision and dynamics of modern CNC machines
- More reliable: Drives, spindles and measuring systems are encapsulated or mounted in a protected manner and are almost maintenance-free
- Electronics - Made in Germany
- More resilient: only high-quality drive components are used that are designed for continuous operation
- Maintenance-free: no regular maintenance is required for the entire feed drive
- State-of-the-art feed technology:
- The axes are moved by high-quality servo drives that convert your hand wheel movements with the precision and dynamics of modern CNC machines
- Reliable, maintenance-free mass production technology
- High rapid traverse speed reduces idle times
- Ball screw drive in all axes:
- Decisively smaller loose error (backlash), which is reflected in significantly increased precision
- Significantly reduced friction, no stick-slip effect, reduced heat generation - less wear
- Electronic handwheels:
- Operation via electronic handwheels in the µ range - in terms of feel and position as with a conventional machine, but smoother and more precise
- Joystick operation:
- Ease of use when moving the axes
- Easy handling when editing work sequences
- Electronic fixed stops:
- In each axis, 3 x 2 end stops can be set electronically at the push of a button - these switches are grouped directly around the feed switch and can be operated intuitively
- When drilling coordinates or chamfering pockets, this ensures a high level of repeat accuracy and significantly more positions can be set up than with conventional machines
- Electronic spindle load display:
- Also supports the operator in the efficient use of machine and tool capacity
- A reliable indicator to avoid damage caused by overloading
X.pos Plus ; your gain in productivity , quality and comfort
- coordinate value specification
- Bolt circle pattern calculation
- Vibration filter function
- Conversion mm/inch
- 8 display languages
- calculator function
- High-resolution display with excellent readability
- High level of functional reliability under production conditions thanks to state-of-the-art electronics and a particularly robust, completely sealed housing
- During the development and selection of the electronic components, particular attention was paid to ensuring that they were largely insensitive to external interference and kept to a low temperature level
- The display colors of the background and the display can be changed and adapted to the individual wishes of the operator
- Particularly durable and practical keyboard membrane, very pleasant to use
- Furthermore, the display has a radius / diameter switch
- A data backup for the created programs is also possible according to the same principle
- Graphic support with distance-to-go display and sketch display
- Linear and non-linear length correction possible
- Easy installation, simple electrical connection and maintenance-free operation
Technical Details
WORKSPACE | |
---|---|
table load capacity | 300kg |
T-slots, number | 3 pieces |
T-slots, width | 18mm |
T-slots, spacing | 80mm |
table dimensions | 1600mm x 320mm |
TRAVERSE PATHS | |
---|---|
X axis travel | 1300mm |
Y axis travel | 290mm |
Z axis travel | 450mm |
MILLING HEAD | |
---|---|
spindle mount | ISO 50 |
swivel angle | 360° |
Travel upper beam | 550mm |
Distance spindle center - table | 186mm - 636mm |
Speed range (2) levels | 2 |
attributes.MEG-000034.MER-001250 | 60-360 / 360-1800 rpm |
RAPID TRAVERSE | |
---|---|
Rapid X axis | 5000mm/min |
Rapid traverse Y-axis | 3000mm/min |
Rapid Z axis | 1500mm/min |
HORIZONTAL MILLING SPINDLE | |
---|---|
Speed range (2) levels | 2 |
RPM range (2) | 60-360 / 360-1800 rpm |
Spindle mount (horizontal) | 50 SK |
Distance spindle center - table | 10mm - 460mm |
FEED | |
---|---|
Feedrate X axis | 0mm/min - 1000mm/min |
Y axis feed rate | 0mm/min - 1000mm/min |
Feedrate Z axis | 0mm/min - 1000mm/min |
DRIVE POWER | |
---|---|
Main drive engine power | 7.5kW |
Standard Equipment
- 3-axis position
indicator Electronic handwheels
Reducing sleeves (ISO 50 / MT4) Milling arbors
(27, 32 mm)
Collet chuck ISO 50 including collets up to 16 mm (8 pieces)
Coolant system
Work light Chip tray
Drawbar Operating tools Operating instructions
