Knuth Sinus D 400/ 1500 Precision Lathe ( Part No. 300015 ) High rigidity and power with perfect control for a wide variety of applications
Knuth Sinus D 400/1500 Precision Lathe
( Part No.300015 )
High rigidity and power with perfect control for a wide variety of applications
Ex Stock Availability, 3 weeks lead time to site. Subject to No Prior Sales.
Highlights

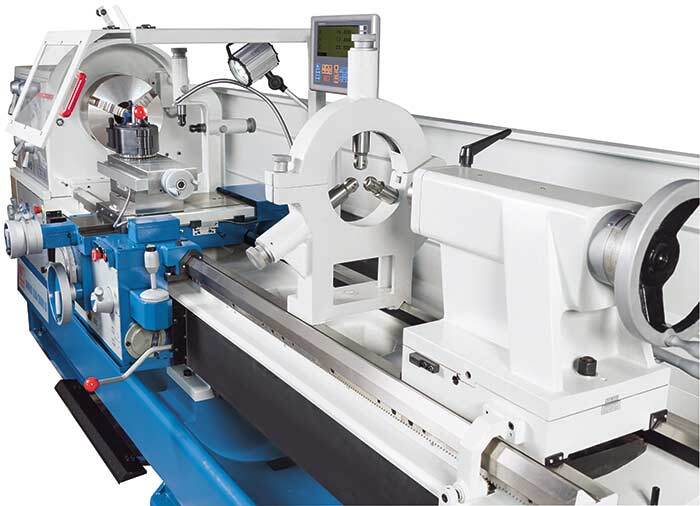

Sinus D Series Precision Lathes
Sinus D is the largest series in the universal lathe segment. The construction follows the classic design but is based on a heavy, one-piece cast machine bed. As with the heavy-duty lathes, the force connection between the motor and the spindle is also here via a manual multi-plate clutch. With integrated functions such as the removable bed bridge, rapid traverse and a taper turning device, this series offers optional solutions for machining long workpieces or large flanges.
- One-piece heavy casted bed for increased rigidity
- Sturdy headstock design with minimum vibrations
- Rapid feed on 2 axes ensure fast positioning
- Taper turning attachment for additional applications
- Well thought out safety protection
Range . 6 models to choose from
Sinus D 330/1500 Maximum length 1500 mm , Turning dia over bed 660 mm
Sinus D 330/2000 Maximum length 2000 mm , Turning dia over bed 660 mm
Sinus D 330/3000 Maximum length 3000 mm , Turning dia over bed 660 mm
Sinus D 400/1500 Maximum length 1500 mm , Turning dia over bed 800 mm ( Quoted model)
Sinus D 400/2000 Maximum length 2000 mm , Turning dia over bed 800 mm
Sinus D 400/3000 Maximum length 3000 mm , Turning dia over bed 800 mm
Contact us by email for current availability if any of these models of interest and we will be pleased to quote.
Knuth Sinus D 400/1500 Precision Lathe
Highlights
- Removable bridge (250 mm) for machining of large parts with diameters up to 1035 mm
- High accuracy and low-noise operation even at high cutting power
- Heavy and large bed
- Hardened guideways (>HB 400)
- 105 mm spindle capacity for machining of large parts
- Manual central lubrication
- Clutch for soft startup with heavy parts
- Automatic lubrication of headstock and main drive
- Protected leadscrew
- Overload protection for feed shaft and leadscrew
- Support moves in linear and cross directions via rapid feed
3-axis position indicator
-
3-axis position indicator X.Pos 3.2
- Integrating multiple functions, this new generation of 3 axis digital readouts significantly offer a much better control over the machining processes, greatly decreasing down-times and error rates
- It features a totally sealed enclosure made of high quality polyester film which protects it against hazardous enviroments in shop floors, such as dust or fumes and offers excellent chemical resistance to most commonly used industry solvents
- The optical scales provide 5 micron resolution (0.005 mm) with outside cover from aluminum for protection against oil, coolant and chips.
- Resolution of 0,005 mm
- Spindle control ON/OFF
- Unit measurement conversion Inch / Metric
- Setting / Reseting current position
- Coordinate display switching ABS / INC
- Radius / Diameter display
- Z1/Z2 Axes summing
- Pocket calculator functions
- Axis position is maintained when display is turned off
- Hole circle pattern calculation
- Radius / diameter toggle
- Reference function for tool gauging
- Taper turning function
Technical Details
| WORKING AREA | |
|---|---|
| Workpiece length (max.) | 1500 mm |
| Turning diameter over bed | 800 mm |
| Turning-Ø over support | 570 mm |
| Turning diameter without gap bridge | 1035 mm |
| Gap bridge length | 330 mm |
| Bed width | 400 mm |
| TRAVELS | |
|---|---|
| Travel X-axis | 420 mm |
| Travel Z1-axis | 230 mm |
| Swing range of top slide | 70° |
| HEADSTOCK | |
|---|---|
| Spindle speed | 25 1/min - 1600 1/min |
| Spindle bore | 105 mm |
| Spindle mount | D1-8 |
| Spindle taper | 5 MT |
| RAPID FEED | |
|---|---|
| Rapid feed X-axis | 2000 mm/min |
| Rapid feed Z-axis | 4000 mm/min |
| FEED | |
|---|---|
| Feed X-axis | 0,022 mm/R - 0,74 mm/R |
| Feed Z-axis | 0,044 mm/R - 1,48 mm/R |
| THREADING | |
|---|---|
| Threading, metric | 0,45 mm - 120 mm |
| Threading, diametric | 0,88 DP - 160 DP |
| Threading, module | 0,25 mm - 60 mm |
| Threading, whitworth | (54) 7/16 - 80 TPI |
| TAILSTOCK | |
|---|---|
| Tailstock quill diameter | 90 mm |
| Tailstock taper | 5 MT |
| Tailstock quill stroke | 235 mm |
| Tailstock traverse adjustment | ± 11 mm |
| DRIVE CAPACITY | |
|---|---|
| Motor rating main drive | 7,5 kW |
| MEASURES AND WEIGHTS | |
|---|---|
| Overall dimensions (length x width x height)-height | 3,24 m x 1,14 m x 1,91 m |
| Weight | 3220 kg |
Standard Equipment
Operator Training
Operator training available in showroom subject to quotation
prior to delivery. Email us to outline your needs.
Shipping
Fully inclusive shipping rates covering transportation, import customs documentation, duties
quoted for inclusion at time of order for UK mainland sites. Northern Ireland destinations, Islands
and other remote sites should seek advice prior to order via email. Clients will be responsible for
their own site offload and siting at point of use.
Finance Availability
Looking to finance your equipment?
We have access to a variety of funding sources who will look sympathetically
at requests for funding finance.
These include leading merchant banks such as asset finance specialists Close Brothers and Lombard.
The financial services division of Siemens will consider HP on the investment. Subject to Status.
On an investment of this nature with a long delivery lead time we can also look at providing a staged payment schedule.
We will confirm this with you at time of order.
