Knuth Turnado 280 / 2000 Lead Screw & Feed Shaft Lathe ( Part No. 320560) Proven classic with extensive standard equipment
Knuth Turnado 280 / 2000 Lead Screw & Feed Shaft Lathe
( Part No. 320560)
Proven classic with extensive standard equipment
Ex Stock Availability, 4 weeks, Subject to No Prior Sales.
Highlights
Knuth Turnado 280 / 2000 Lead Screw & Feed Shaft Lathe
The machines of the Turnado series are the modern version of the classic lathe. They are characterized by robust construction, a powerful motor and high level of versatility. With the extensive range of standard accessories and options, these machines can be adapted to many production requirements. A modern position indicator is also part of the standard equipment, as is a high-quality quick-change toolholder system. The models in this series have proven themselves many times and have been one of our best-selling conventional lathes for more than 20 years.
- Classic design with sturdy construction
- built to last
- 3-axis position indicator with various turning functions
- Extensive standard equipment package
Detail
- Cost-effective, lasting value
- Practically arranged control panel with ergonomic layout of selection levers
- Wide bed, ground and hardened
- Offset tailstock for taper turning
- Large number of thread leads
- Removable gap bridge for machining of large diameter
- Stop spindle with adjustable travel stops
- 3 Axis Position Indicator
- Resulting in valuable time savings
- For increased productivity
- Easy to read display
- Operator-specific features
- Convenient keyboard layout
- Resolution: 0.01/ 0.005 mm
- Default coordinates
- Axis position is maintained when display is turned off
- Hole circle pattern calculation
- Calculator function
- Storage for 10 tools
- Radius / diameter toggle
- Mm/inch conversion
- Easy expansion and maintenance-free operation
- Display for top (Z0) and box way slide (Z1) both separate and in differential / cumulative mode for lathes
Technical Details
| WORKING AREA | |
|---|---|
| Center height | 280 mm |
| Workpiece length (max.) | 1928 mm |
| Turning-Ø over support | 355 mm |
| Gap bridge length | 170 mm |
| Bed width | 350 mm |
| Turning diameter over gap bridge | 785 mm |
| In-gap diameter over bed | 560 mm |
| DETAILS | |
|---|---|
| Equipment | with position indicator |
| TRAVELS | |
|---|---|
| Travel X-axis | 316 mm |
| Travel Z1-axis | 130 mm |
| Swing range of top slide | ± 52° |
| HEADSTOCK | |
|---|---|
| Spindle mount | Camlock D1-8 |
| Spindle bore | 80 mm |
| Spindle taper | 7 MT |
| Spindle speeds | (12) 25 - 1,600 1/min |
| FEED | |
|---|---|
| Feed X-axis | 0,02 mm/R - 0,573 mm/R |
| Feed Z-axis | 0,059 mm/R - 1,646 mm/R |
| TAPPING | |
|---|---|
| Tapping, metric-stages | 47 |
| Tapping, metric | 0,2 mm - 14 mm |
| Tapping, module-stages | 39 |
| Tapping, module | 0,1 mm - 7 mm |
| Tapping, whitworth | (60) 2-112 TPI |
| Tapping, diametric | (50) 4-112 DP |
| TAILSTOCK | |
|---|---|
| Tailstock taper | 5 MT |
| Tailstock quill stroke | 180 mm |
| Tailstock quill diameter | 75 mm |
| Tailstock traverse adjustment | ± 12 mm |
| DRIVE CAPACITY | |
|---|---|
| Motor rating main drive | 5,5 kW |
| MEASURES AND WEIGHTS | |
|---|---|
| Overall dimensions (length x width x height) | 3,34 m x 1,15 m x 1,46 m |
| Weight | 2720 kg |
Standard Equipment
3-axis position indicator
3-jaw chuck Ø 315 mm
4-jaw face chuck Ø 350 mm
face plate Ø 450 mm
quick tool changer head WC
quick change tool holder WCD 32150
coolant system

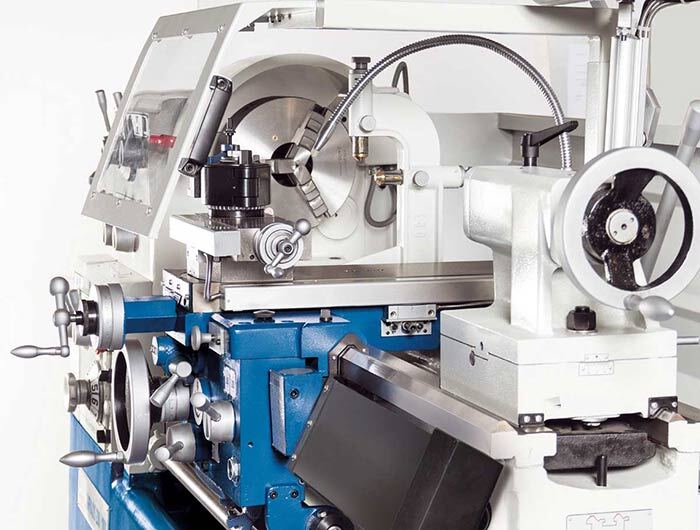

steady and follow rests
stop spindle
fixed splash guard (wall)
chuck guard
foot brake pedal
LED work lamp
reducing sleeve
dead center
thread gauge
operating tools
operator instructions
Optional Equipment
Extensive range of optional tooling available for this machine
4-Jaw Lathe Chuck 315/8 2800 min-1 / Topturn SKU: 146483
Quick-Set Spindle Bore Stop Size 9 79-91mm SKU: 103025
Tool Holder WCD 32x150 SKU: 103301
Tool Holder WCD 32x170 SKU: 103302
Tool Holder WCD 40x150 SKU: 103303
Tool Holder WCD 40x170 SKU: 103304
Tool Holder WCD 45x170 SKU: 103305
Tool Holder WCH 50x160 SKU: 103307
Tool Holder WCJ 40x160 SKU: 103308
Tool Holder WCJ 50x160 SKU: 103309
Cut-off insert holder WCA-A3a SKU: 103310
Reduction Sleeve MT 5/2 SKU: 103835
Reduction Sleeve MT 5/3 SKU: 103840
Reduction Sleeve MT 5/4 SKU: 103845
3-jaw chuck 315mm D1-8 (cast iron) SKU: 116523
soft top jaws for 3-jaw-chuck 315mm (116504/116505) SKU: 116553
4-Jaw Lathe Chuck Cast Iron 315 mm SKU: 116625
soft top jaws for 4-jaw-chuck 315mm (116604-116605) SKU: 116653
4-jaw independent chuck 315mm D1-8 SKU: 116674
soft top jaws for 4-jaw- chuck 315mm SKU: 116692
Clamped Turning Tool Set 25 mm SKU: 108670
Coolant Concentrate 5 Ltr . SKU: 103184
Live Centers MT 5 SKU: 106760
Power Worker Metal Cutter SKU: 123040
Knurl Holder SKU: 108520
Knurl Set, angles SKU: 108521
Contact us via email for price details on our optional tooling.
