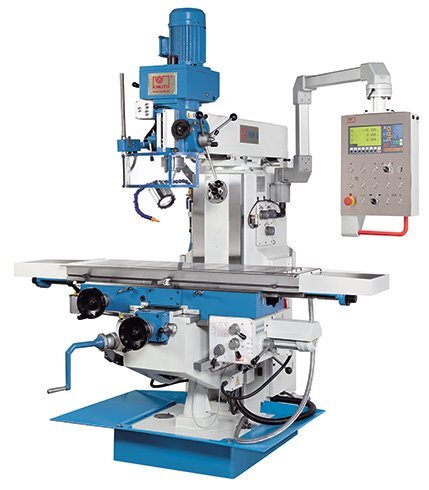

Knuth VHF 3 Universal Milling Machine ( Part No. 301410 ) Equipped with a horizontal spindle, a swiveling vertical milling head and a large clamping table.
Knuth VHF 3 Universal Milling Machine
( Part No.301410 )
Equipped with a horizontal spindle, a swiveling vertical milling head and a large clamping table.
Availability. Currently 3-4 weeks from receipt of order. Subject to no prior sales.
Highlights
Knuth VHF 3 Universal Milling Machine
The VHF 3 is a universal milling machine that can keep pace with the growing demands of our customers even after a good 20 years in the KNUTH catalog. Equipped with a horizontal spindle, a swiveling vertical milling head and a large clamping table, this model serves a wide range of applications. The entire VHF series is ideal for repair shops, as well as training and production departments. The complete configuration with automatic feed and digital position display enables precise production and short non-productive times.
- Solid construction for precision machining
- Automatic work feeds on all axes to ensure best surface finish
- Automatic rapid feeds on all axes to minimize downtime
- Swiveling vertical head ± 45° for angle machining
- Automatic quill feed for fast and accurate drilling
- New generation DRO with milling functions
Knuth VHF 3 Universal Milling Machine
- All 3 axes with automatic feed and rapid feeds
- Vertical head swivels ± 45°
- Spindle speeds for horizontal and vertical spindle controlled by separate switch gears with oil-bath lubrication
- Capstan-controlled quill feed for drilling, manual micro-feed for milling
- For horizontal spindle operations, the top beam including head can be completely rotated on the stand
- 3 automatic quill feeds
- Adjustable ground dovetail guideways on the X-axis and wide square guideways on Y and Z-axis
- Clamping device in all 3 axes
- Adjustable stops for drilling depth and table adjustment
3-axis position indicator
- More accuracy
- Lower error rate
- Increased productivity
- Resulting in valuable time savings
- For increased productivity
- Easy to read display
- Operator-specific features
- Convenient keyboard layout
- Resolution: 0.01/ 0.005 mm
- Default coordinates
- Axis position is maintained when display is turned off
- Hole circle pattern calculation
- Calculator function
- Storage for 10 tools
- Radius / diameter toggle
- Mm/inch conversion
- Easy expansion and maintenance-free operation
Technical Details
| WORKING AREA | |
|---|---|
| Table set up area | 1320 mm x 320 mm |
| Number of T-slots | 5 positions |
| T-slot (width x spacing) | 14 mm x 63 mm |
| Table load capacity | 300 kg |
| TRAVELS | |
|---|---|
| Travel X-axis | 1000 mm |
| Travel Y-axis | 245 mm |
| Travel Z-axis | 430 mm |
| VERTICAL MILLING HEAD | |
|---|---|
| Spindle mount | ISO 40 |
| Spindle speeds | 90 1/min - 2000 1/min |
| Quill stroke | 120 mm |
| Throat | 200 mm - 540 mm |
| Spindle nose-to-table surface distance | 140 mm - 540 mm |
| Head swivel range | ± 45° |
| RAPID FEED | |
|---|---|
| Rapid feed X-axis | 1024 mm/min |
| Rapid feed Y-axis | 1024 mm/min |
| Rapid feed Z-axis | 670 mm/min |
| HORIZONTAL MILLING HEADA | |
|---|---|
| Spindle mount | ISO 40 |
| Spindle speeds | 40 1/min - 1300 1/min |
| Horizontal spindle-to-table surface distance | 0 mm - 430 mm |
| FEED | |
|---|---|
| Feed speed X / Y axis | 20 mm/min - 360 mm/min |
| Quill feeds | (3) 0,08; 0,15; 0,25 mm/R |
| DRIVE CAPACITY | |
|---|---|
| Motor rating horizontal spindle | 2,2 kW |
| Motor rating vertical spindle | 2,2 kW |
| Motor rating feed | 0,55 kW |
| Motor rating coolant pump | 0,09 kW |
| MEASURES AND WEIGHTS | |
|---|---|
| Overall dimensions (length x width x height)-height | 1,71 m x 1,72 m x 2,33 m |
| Weight | 1900 kg |
Standard Equipment
- 3-axis position indicator X.Pos 3.2Drill chuck 16 mmCutter arbor Ø 27 mmCutter arbor Ø 40 mmcollet chuck ISO 40 with collets Ø 4,5,6,8,10,12,14,16 mmReducing sleeve ISO 40 / MT3 and ISO 40 / MT2Coolant systemChip trayWork lampOperating toolsOperator instructions
Operator Training
Operator training available in showroom subject to quotation
prior to delivery. Email us to outline your needs.
Shipping
Fully inclusive shipping rates covering transportation, import customs documentation, duties
quoted for inclusion at time of order for UK mainland sites. Northern Ireland destinations, Islands
and other remote sites should seek advice prior to order via email. Clients will be responsible for
their own site offload and siting at point of use.
