Promac JMDT-764016 Vertical Mill Drill ( Part No. 764016) Versatile milling drilling machine with adjustable table

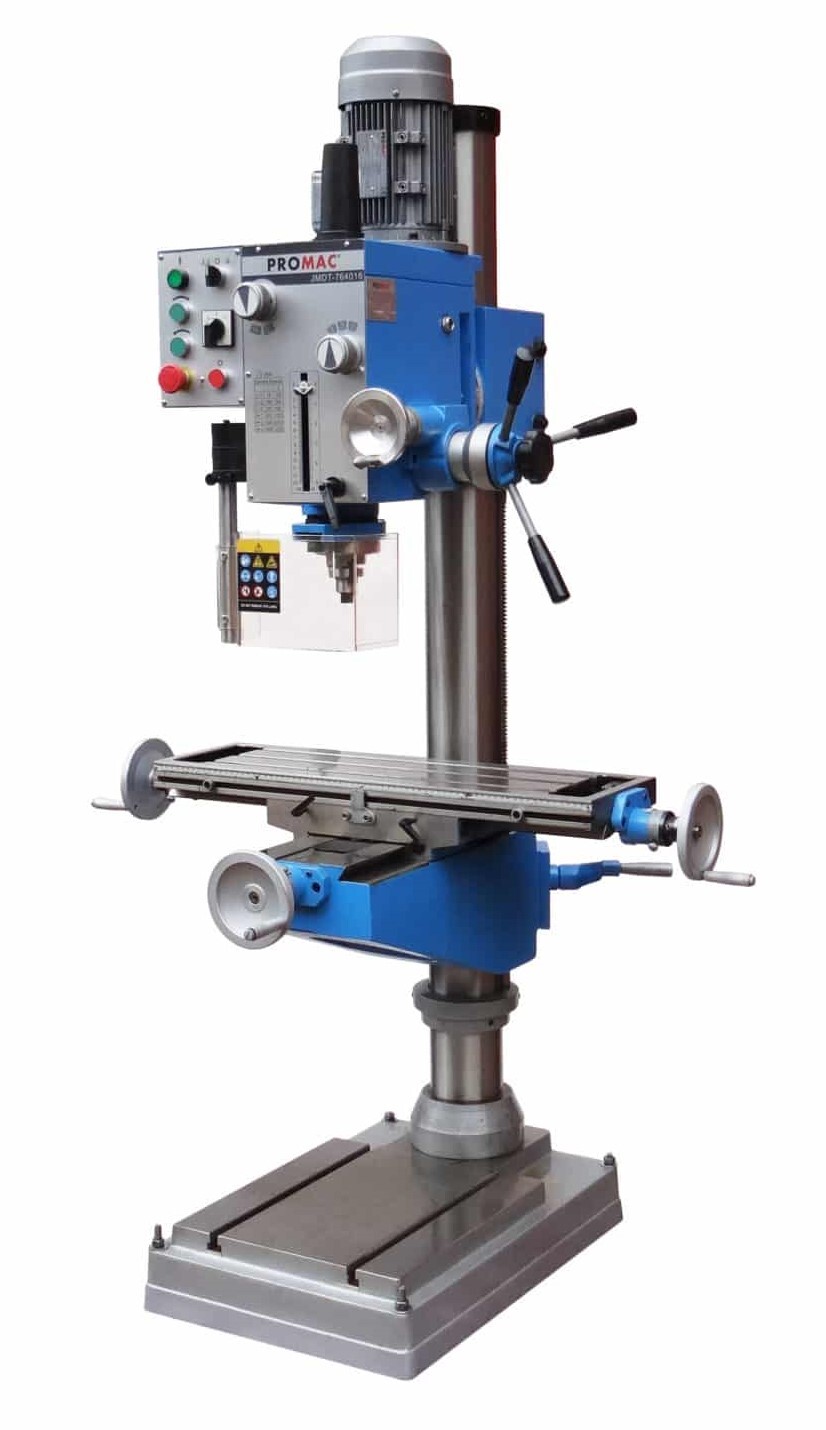

Promac JMDT-764016 Vertical Mill Drill
( Part No.764016 )
Versatile milling drilling machine with adjustable table,16 mm tapping capacity.
Availability. Currently Ex stock, Maximum 4 weeks from receipt of order. Subject to no prior sales.
Highlights
Promac JMDT-764016 Vertical Mill Drill
Versatile milling drilling machine with adjustable table,16 mm tapping capacity.
- Motor power: 400V / 1.5kW /
- Spindle taper: CM3 /
- Max drilling diameter: 40mm /
- Milling diameter: 76mm /
- Tapping: M16 /
- Weight: 365kg
Technical Details
JMDT-764016:
Drilling capacity 40mm
Milling capacity of face mill 76mm
Milling capacity of end mill 32mm
Tapping capacity 16mm
Spindle to column 278mm
Distance table to spindle max 610mm
Spindle taper MT-4
Draw bar M16
Spindle travel 120mm
Column diameter 115mm
Spindle speeds…12 75-3200rpm
Max travel X-axis 490mm
Max travel Y-axis 180mm
Table size 210 x 730mm
T-slots...3 no. 14mm
Overall Dimensions (LxWxH) 950x760x1885mm
Net weight 365 kg
Mains 400V ~3L/PE 50Hz
Output power 1,1/1,5 kW S1
Reference current 6.3 A Extension cord (H07RN-F): 4x1,5² Installation fuse protection 16A
Shipping
Fully inclusive shipping rates covering transportation, import customs documentation, duties
quoted for inclusion at time of order for UK mainland sites. Northern Ireland destinations, Islands
and other remote sites should seek advice prior to order via email. Clients will be responsible for
their own site offload and siting at point of use.
Finance Availability
Looking to finance your equipment?
We have access to a variety of funding sources who will look sympathetically
at requests for funding finance.
These include leading merchant banks such as asset finance specialists Close Brothers and Lombard.
On an investment of this nature with a long delivery lead time we can also look at providing a staged payment schedule.
We will confirm this with you at time of order.
