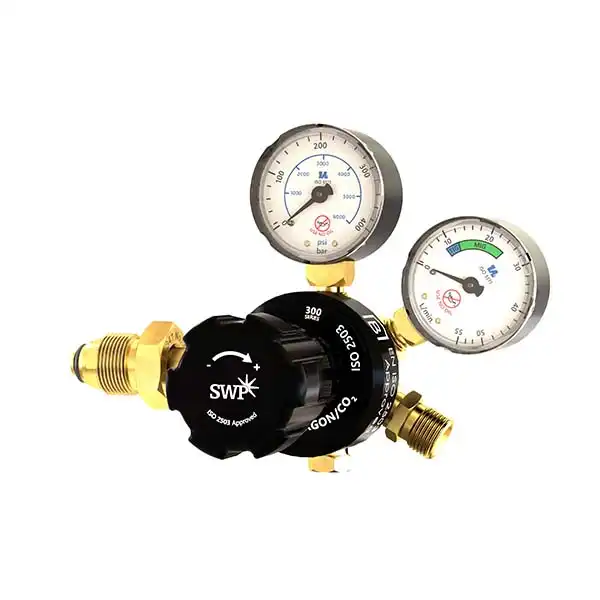

SWP Side Entry Single Stage 2 Gauge Argon/CO2 Regulator 45L/Min
SWP Side Entry Single Stage 2 Gauge Argon/CO2 Regulator 45L/Min
Highlights
Manufactured and designed to offer complete protection for both operator and equipment, combined with high flow performance and ease of use. The two gauges enable reading of gas pressure and contents for optimum control. Date stamped to show when regulator needs replacing or refurbishing.
Features and Benefits
• Designed specifically for side entry cylinders
• Available in a range of specifications to suit use with varying gases
• Each product possesses two gauges for optimum control of gas
• Regulators should be refurbished or replaced every 5 years to keep them working to an optimum level, each product is date stamped for full visibility and for your ease
• To be used in conjunction with a Flashback Arrestor to further bolster the safety of the product
Typical Applications
• Gas Welding
Standards
• Regulators conform to BS EN ISO 2503
• Gauges conforming to BS EN ISO 5171
Technical Details
- Inlet Connection 5/8" BSP
- MFR Part No. 2142
- Gauge Diameter 50mmmm
- Gas Type Argon
- Maximum Outlet Pressure 35 Lpm
- Outlet Pressure 0-35 Lpm
- Standards MetEN ISO 5171:2009EN ISO 2503:1998
- Regulator Type Single Stage
- Outlet Connection 3/8" BSP
- No of Gauges 2 Gauge
- Maximum Inlet Pressure 300bar
